QL-300 User Guide 126

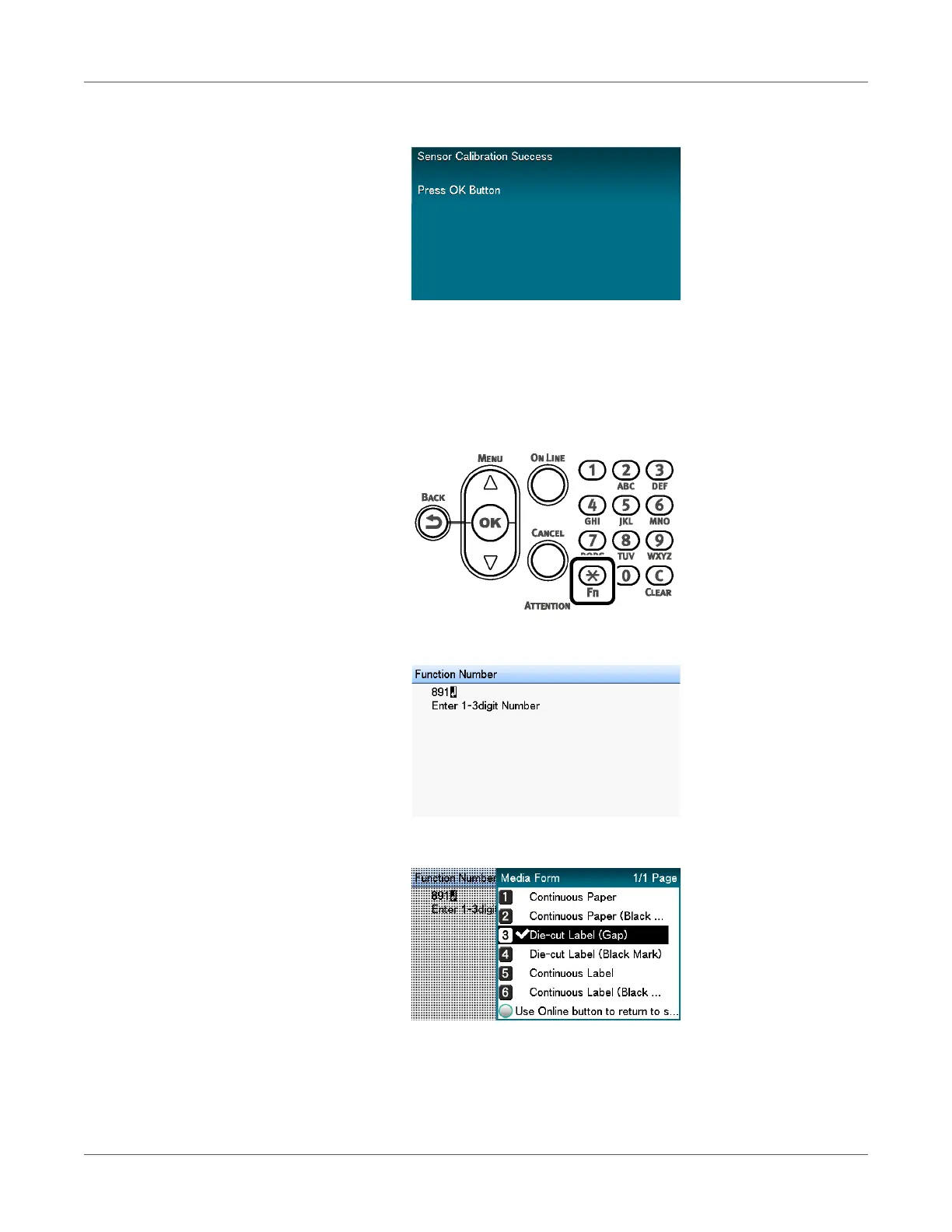

18 After sensor calibration is complete, press the OK button.

Calibrating the Gap Sensor

You can adjust the distance between die cut labels using the gap sensor.

1 Press the Fn key.

The numerical values input screen will be displayed.

2 Press 8, 9, 1 (function numbers), and then press the OK button.

3 Select 3. Die-cut Label (Gap), and then press the OK button.
