Installation

QL-300 User Guide 19

Unpacking the Printer

This section describes how to unpack the printer.

Note: The packing box and packing materials are needed to transport the machine. Keep them

and do not throw them away.

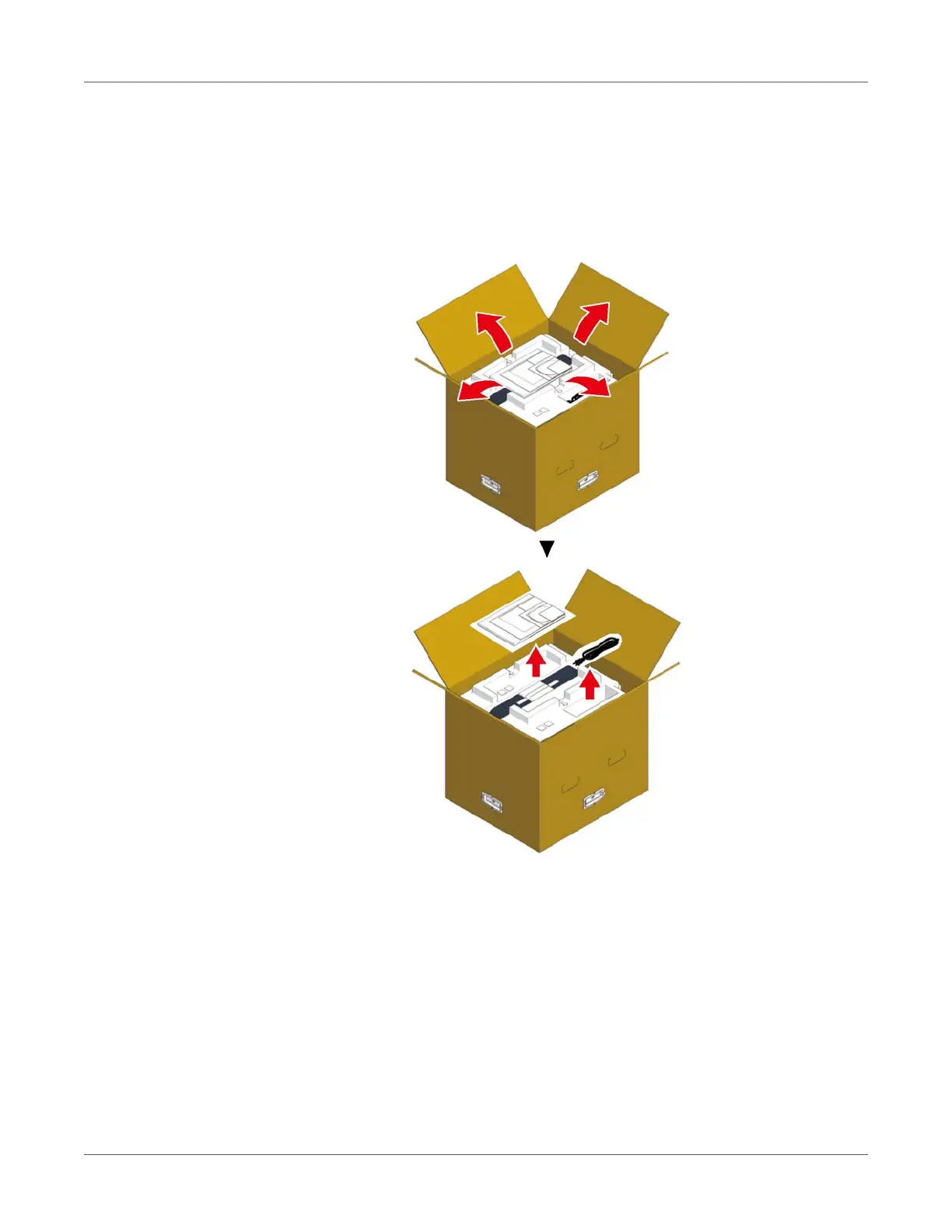

1 Open the top of the packing box and remove the machine's accessories.
