QL-300 User Guide 451

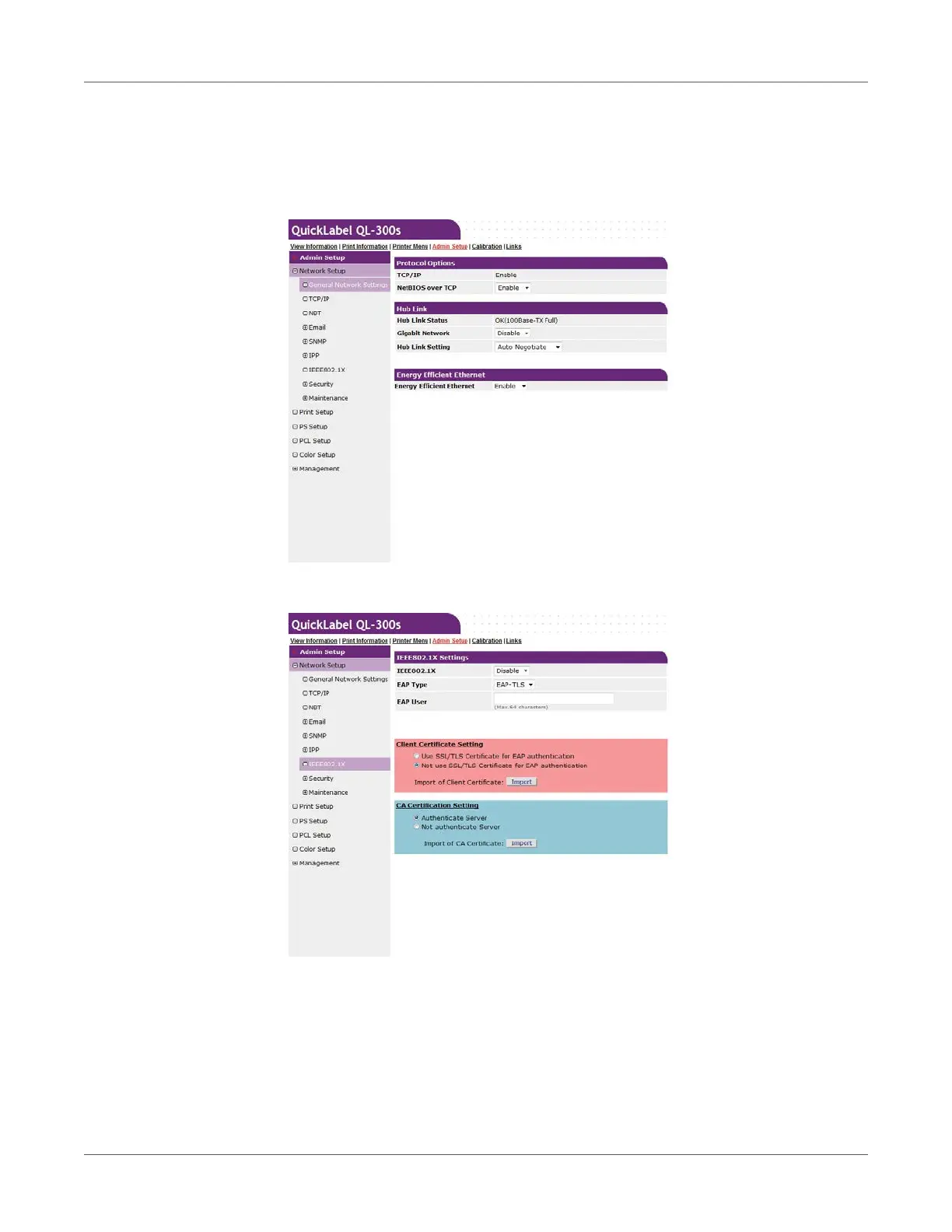

To configure IEEE802.1 settings

1 Log in as an administrator. See “Logging in as an Administrator” on page 405.

2 Click: Admin Setup > Network Setup.

3 Click IEEE802.1X.

If PEAP is to be used, proceed to “To use PEAP”. If EAP-TLS is to be used, proceed to “To

use EAP-TLS”.
