Part Names and Functions

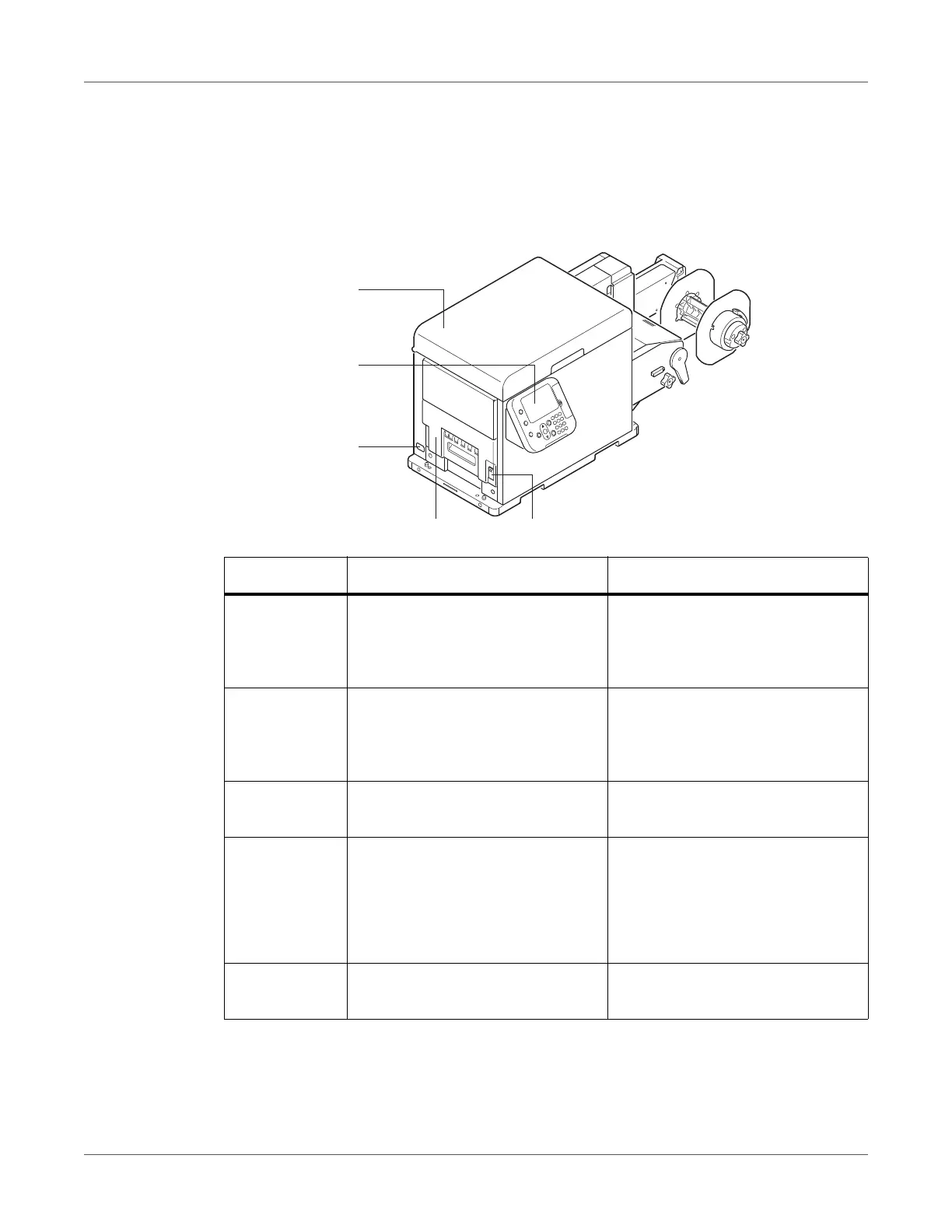

Printer Front/Left Side
# Part Description
1 Top Cover Open when replacing the print car-
tridge, belt unit, 2nd transfer roller,
or waste toner box, or when clear-
ing a paper jam.
2 Control Panel Displays the printer status and
menus, and is used when configur-
ing function settings. See “Control
Panel” on page 69.
3 Power Connector Connect the supplied power cord
here.
4 Fuser and Exit Unit Remove when replacing the fuser
and exit unit or when clearing a
paper jam.
The fuser and exit unit are wear
items.
5 Fuser and Exit Unit Locking Lever Use when removing or installing
the fuser and exit unit.
1
3
45
2
