Print Function Settings

QL-300 User Guide 188

*: Supported by QL-300s only.

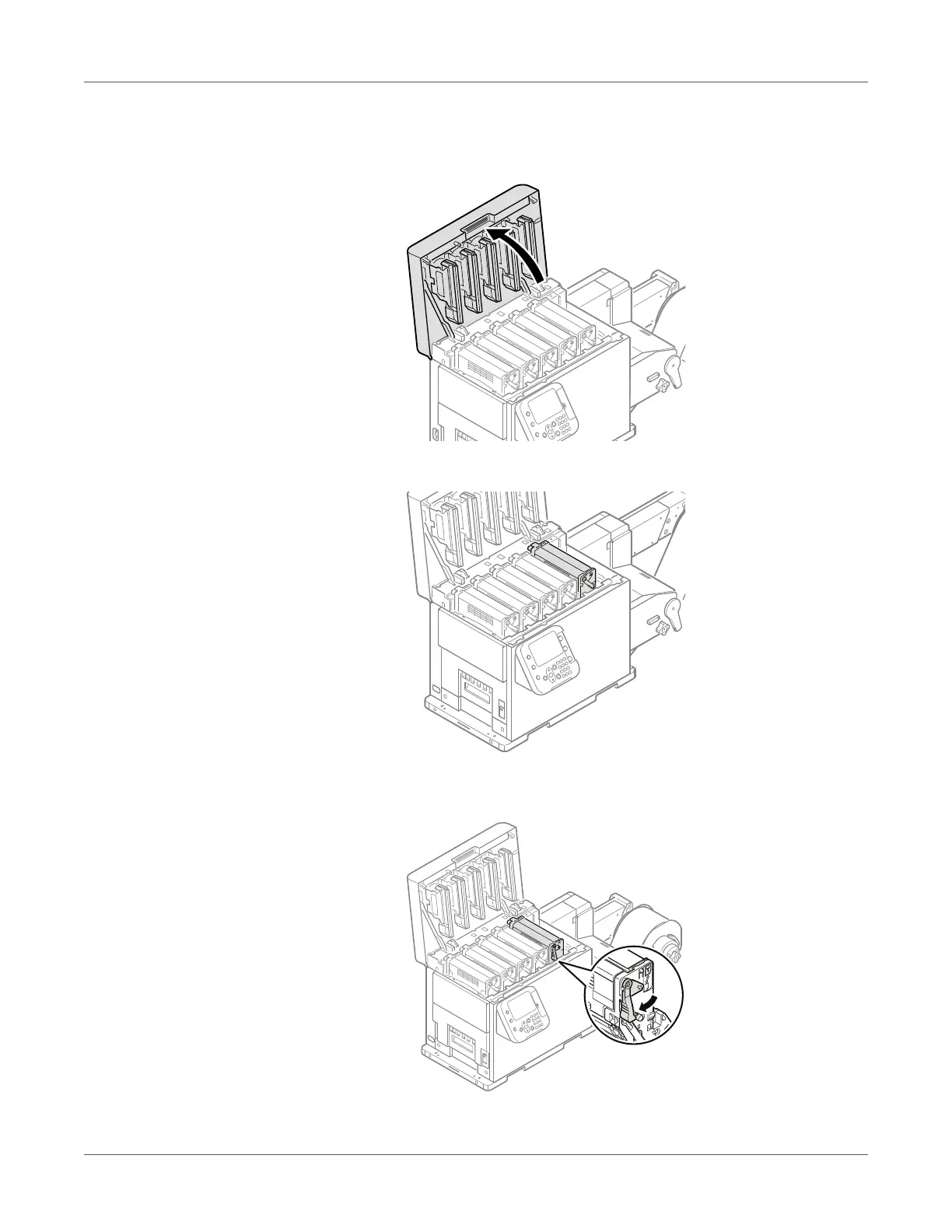

1 Grasp the top cover open lever and open the top cover.

2 Check the position of the unused print cartridge via the label letters and color.

3 Turn the lift up lever on the print cartridge that is not being used clockwise to raise the print

cartridge.
