Troubleshooting

QL-300 User Guide 256

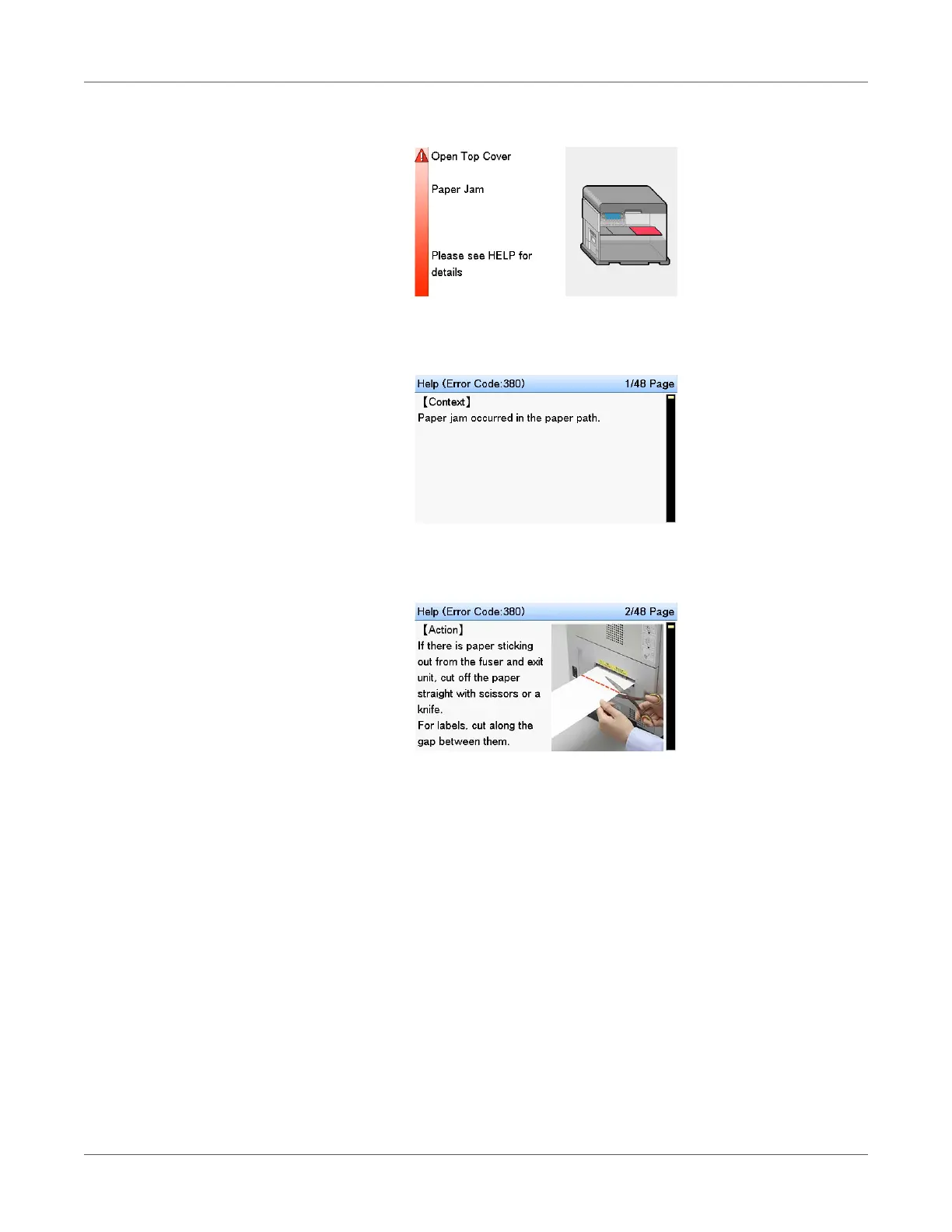

The following message will appear on the display screen, and the ATTENTION lamp will blink.

1 Press the HELP button.

The error code will appear and the condition of paper jam will be displayed.

2 Press the scroll button ▼.

The next page will appear, and solution procedure for paper jam will be displayed.

Press the scroll button ▲ to return to the previous page.
