Troubleshooting

QL-300 User Guide 266

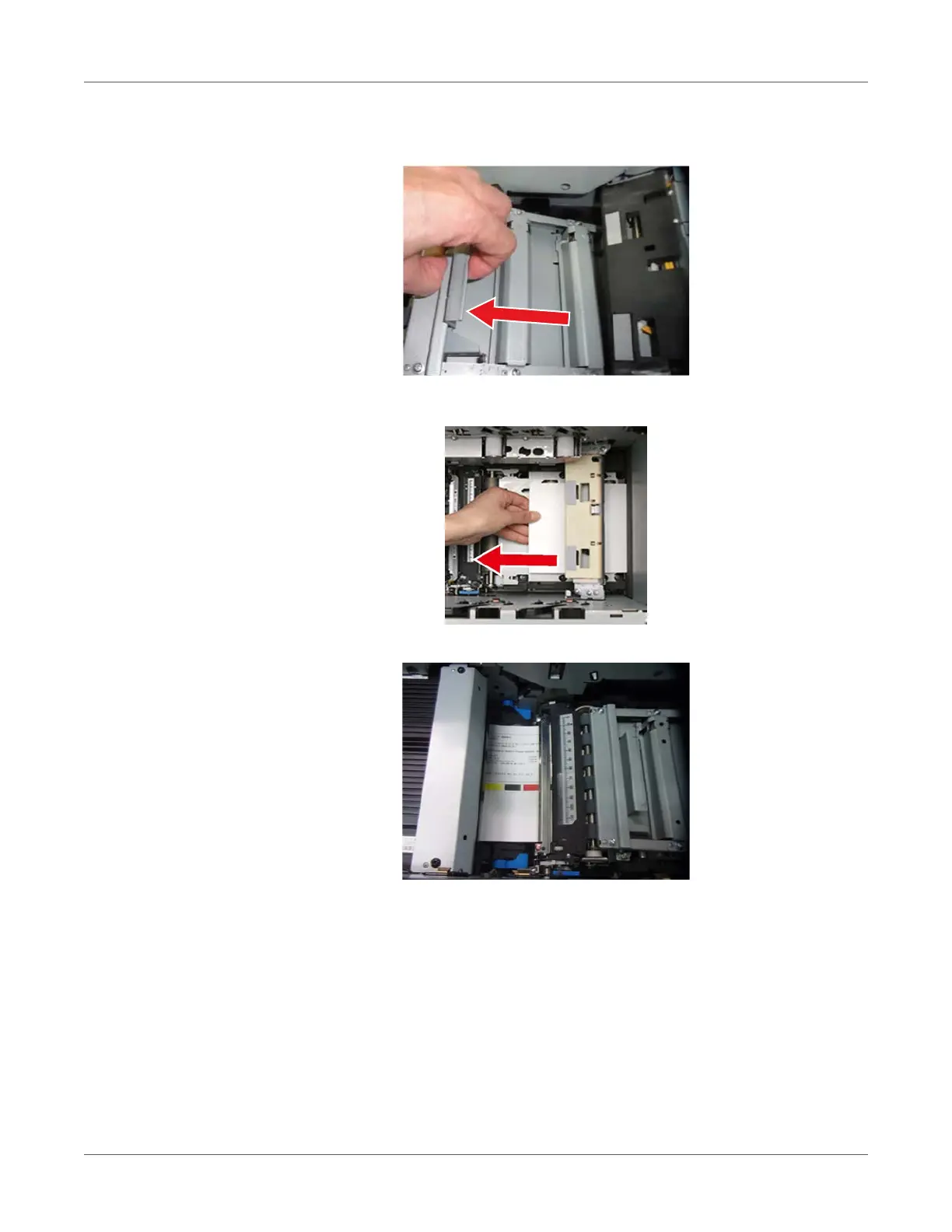

13 While the paper guide release lever is lifted, slide the paper guide in the direction of the

arrow to remove it.

14 If any paper is jammed, pull it out in the direction of the arrow.

There may be some unfused toner on the paper.

Caution: Be careful, the fuser unit is very hot immediately after printing.
