Troubleshooting

QL-300 User Guide 268

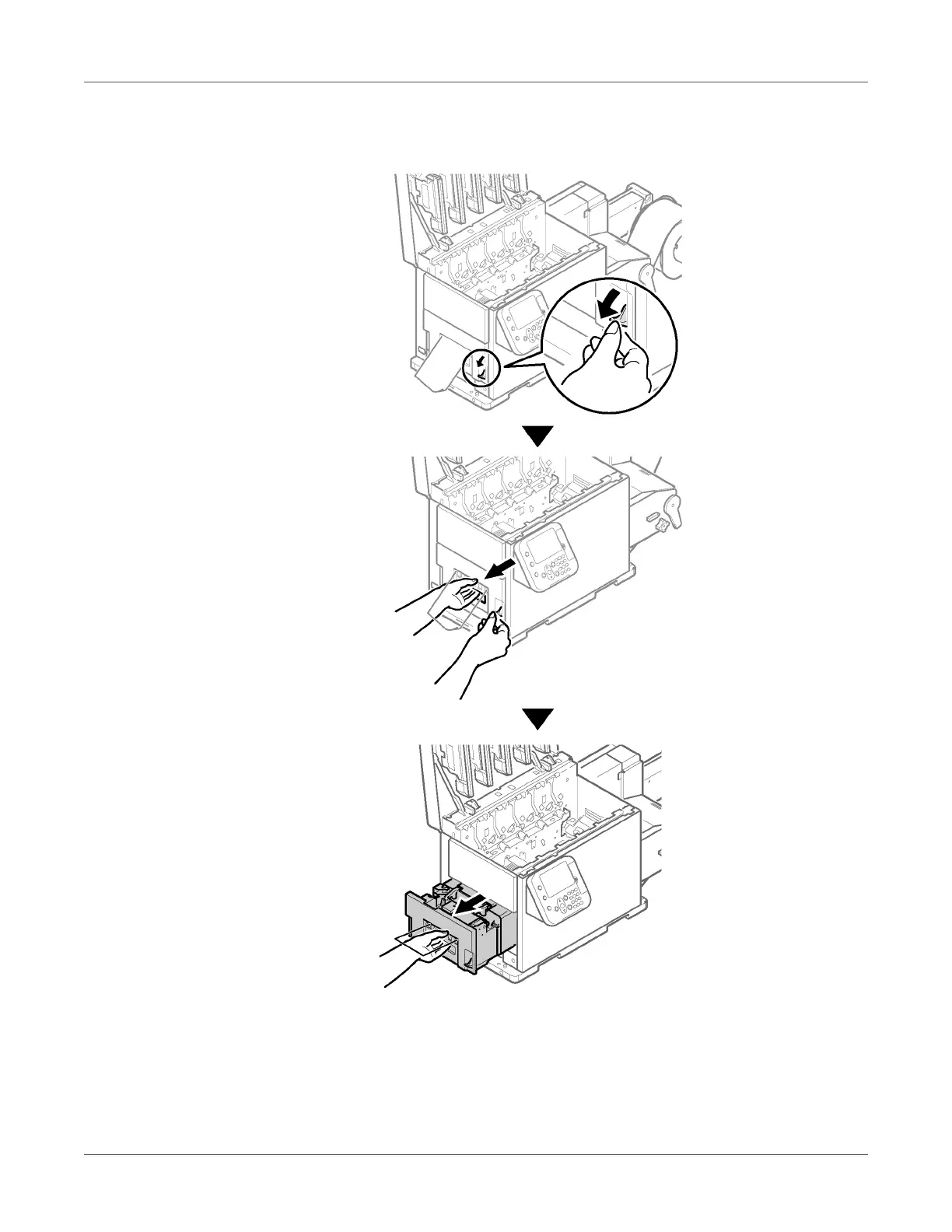

16 While pulling the fuser and exit unit locking lever towards you, pull out the fuser and exit

unit.
