Troubleshooting

QL-300 User Guide 270

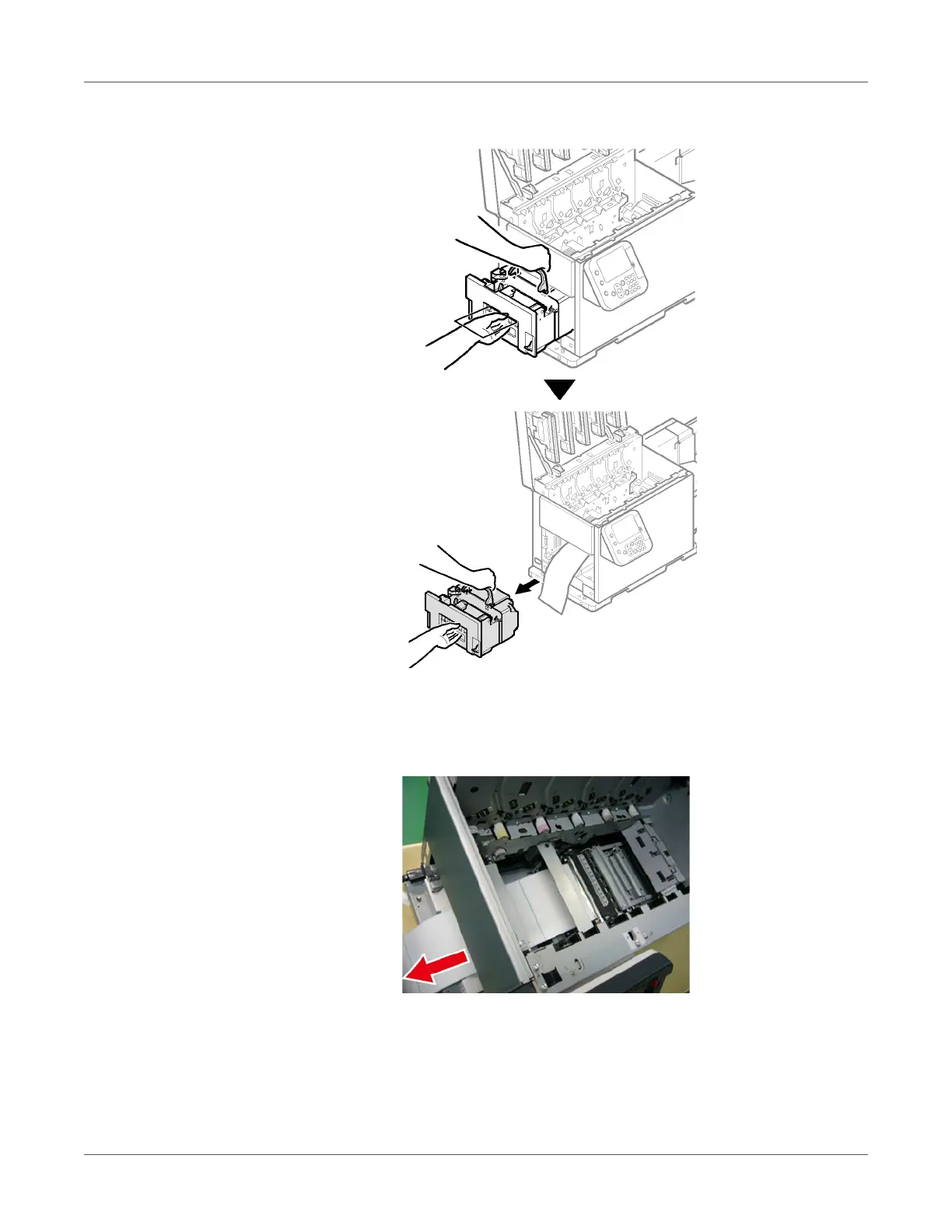

18 Hold the fuser and exit unit with both hands and remove it to a level spot.

Caution: Be careful, the fuser unit is very hot immediately after printing.

19 Slowly pull the paper straight out so it does not overlap.
