QL-300 User Guide 282

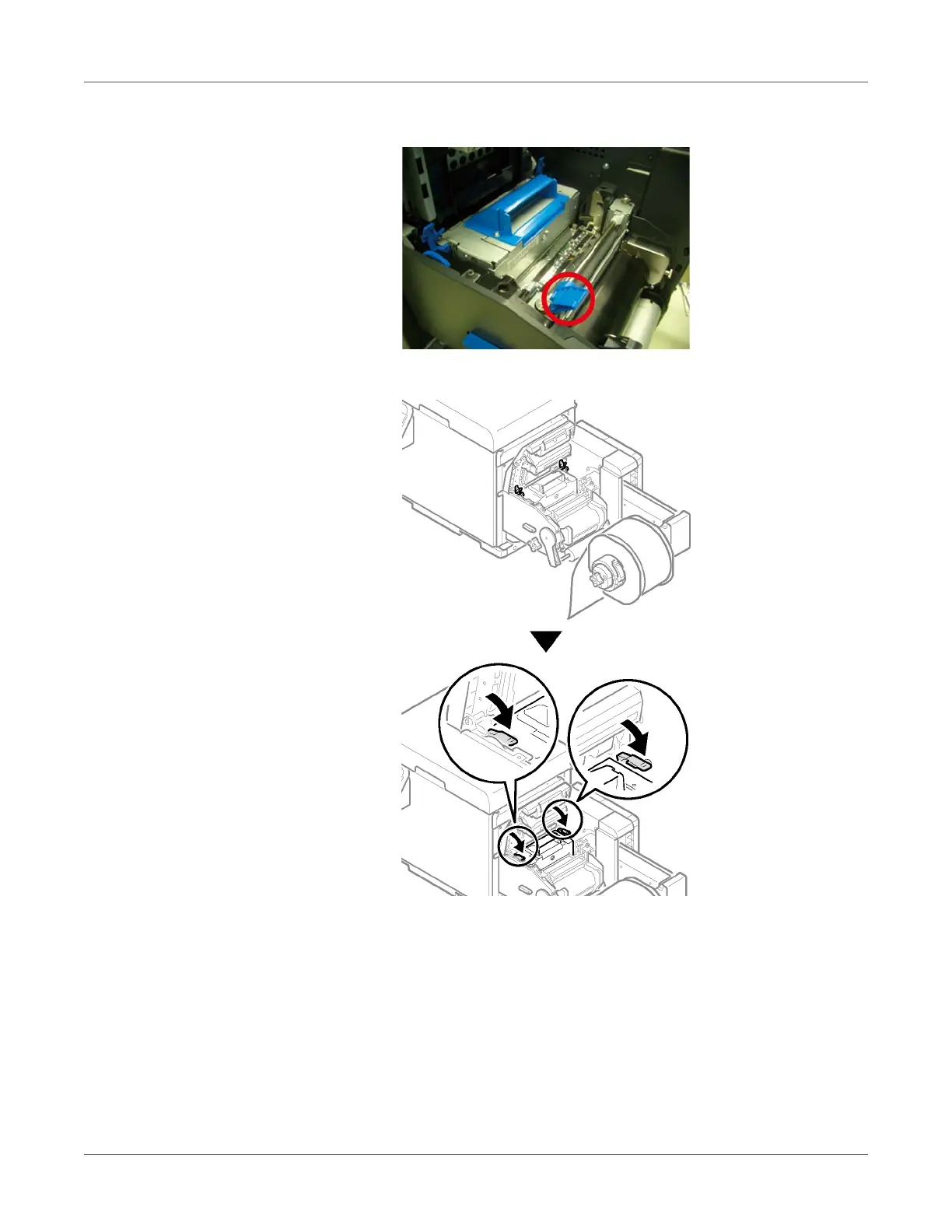

36 Lower the F0 roller release lever.

37 Lower the cutter unit lock levers at both ends of the cutter unit.
