Replacing Wear Items

QL-300 User Guide 339

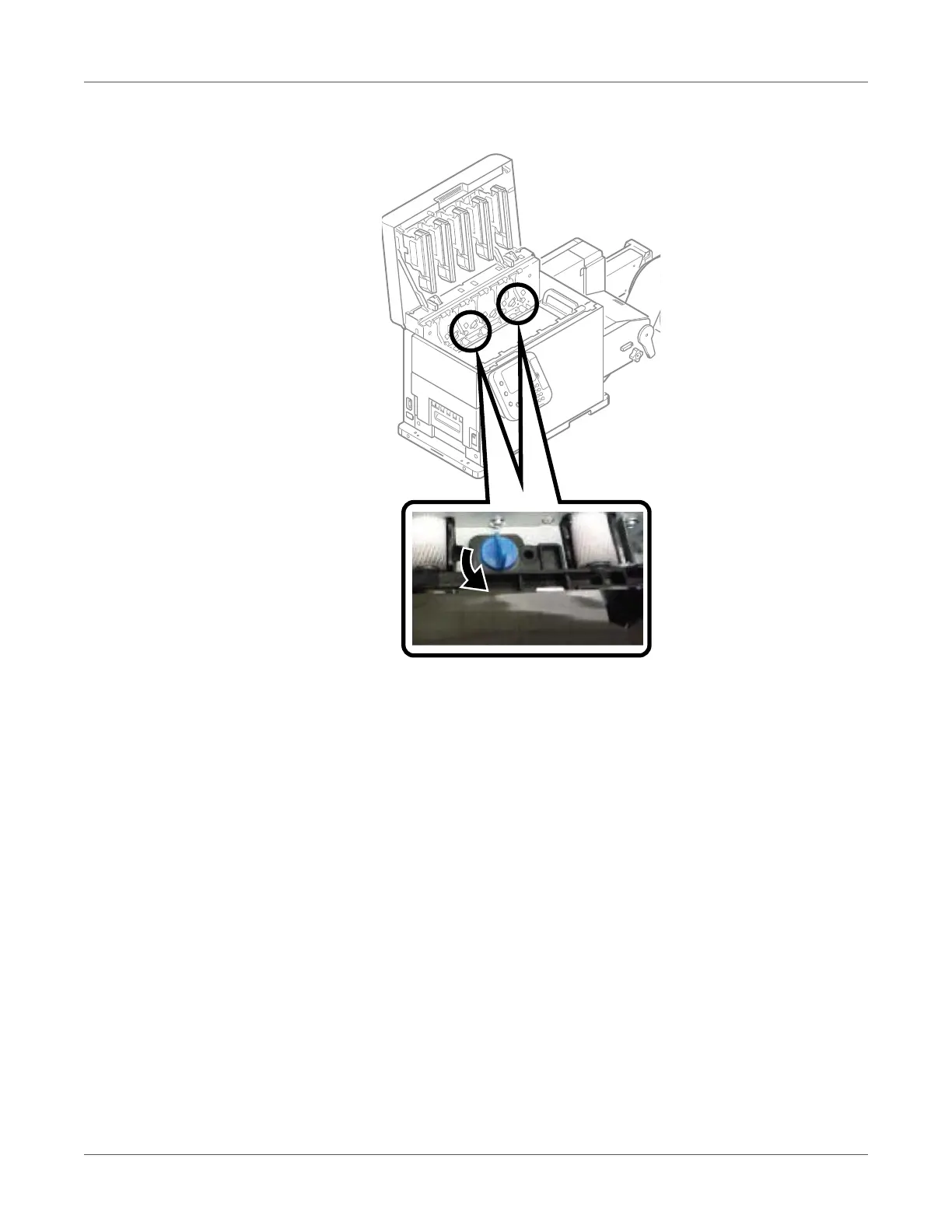

4 Turn the two belt locking keys counterclockwise to release the lock.
