Replacing Wear Items

QL-300 User Guide 341

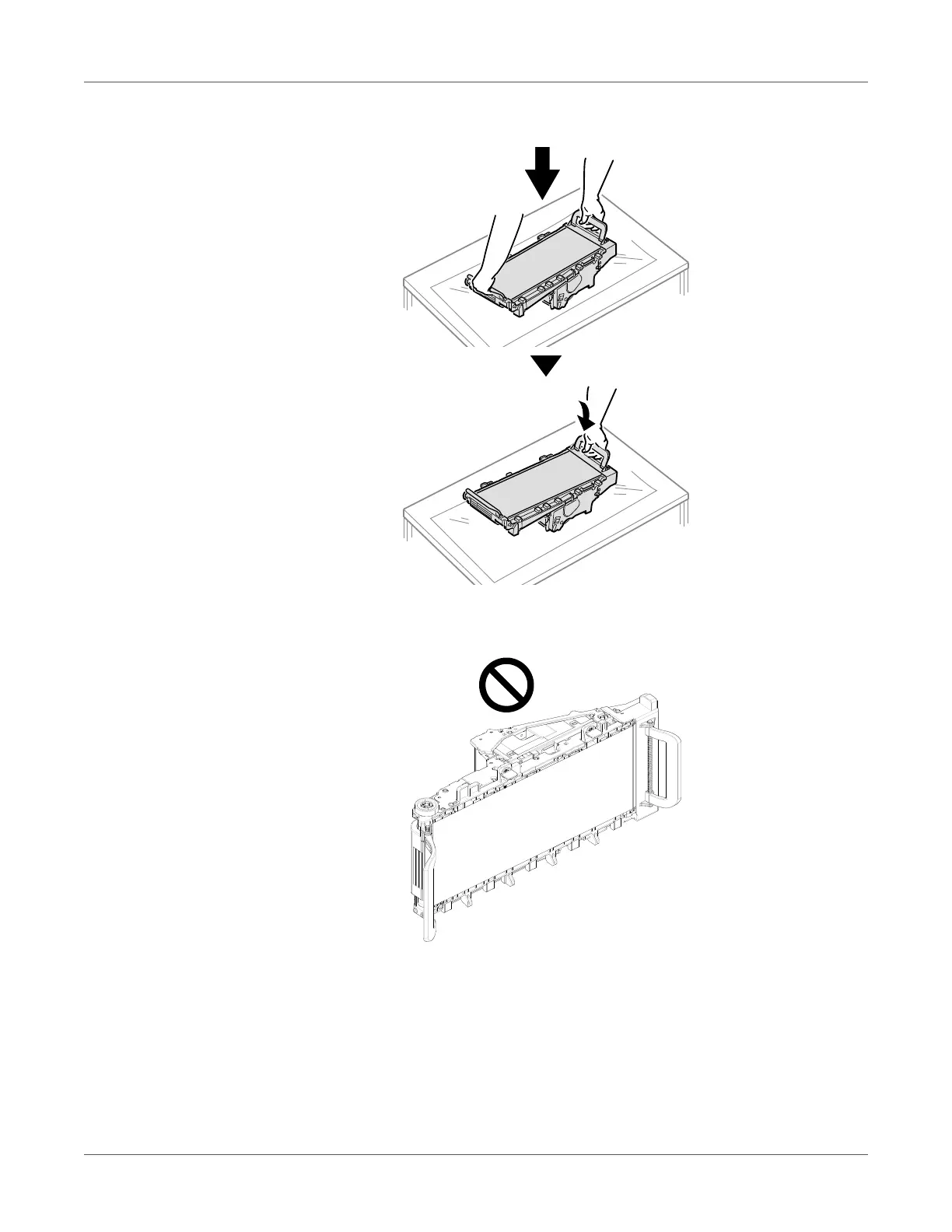

6 Place the belt unit with the right side down on a flat surface covered with paper.

Caution: Place the belt unit on a flat surface, as shown in the diagram above. Do not stand

it on its side.
