Replacing Wear Items

QL-300 User Guide 346

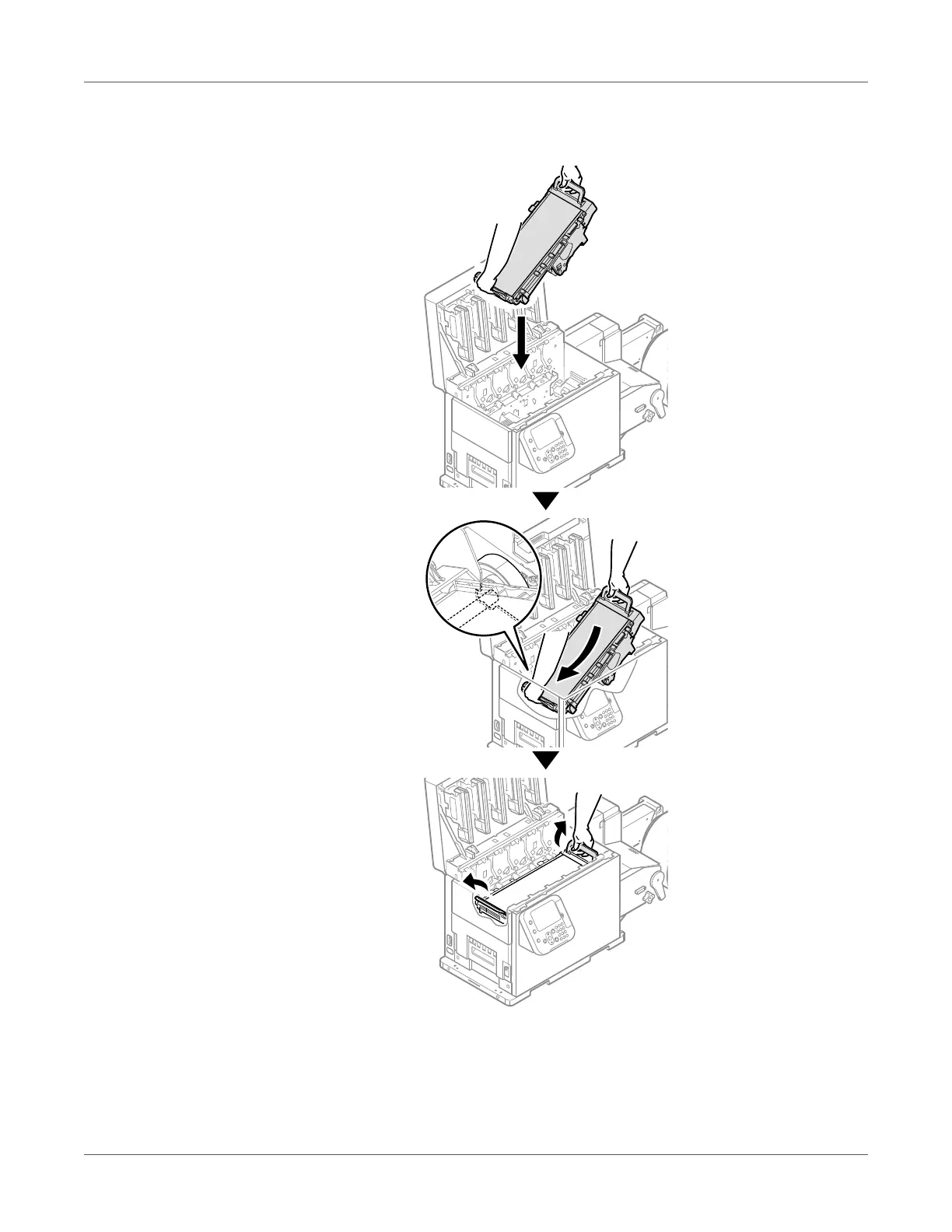

11 Tilt the belt unit and align the arrow labels (red) on the belt unit and printer to position it, and

then open the belt unit handles (blue) on the left and right.

Caution: Be careful to not pinch your hands or fingers between the handle and the

machine while installing the belt unit.
