Cleaning

QL-300 User Guide 363

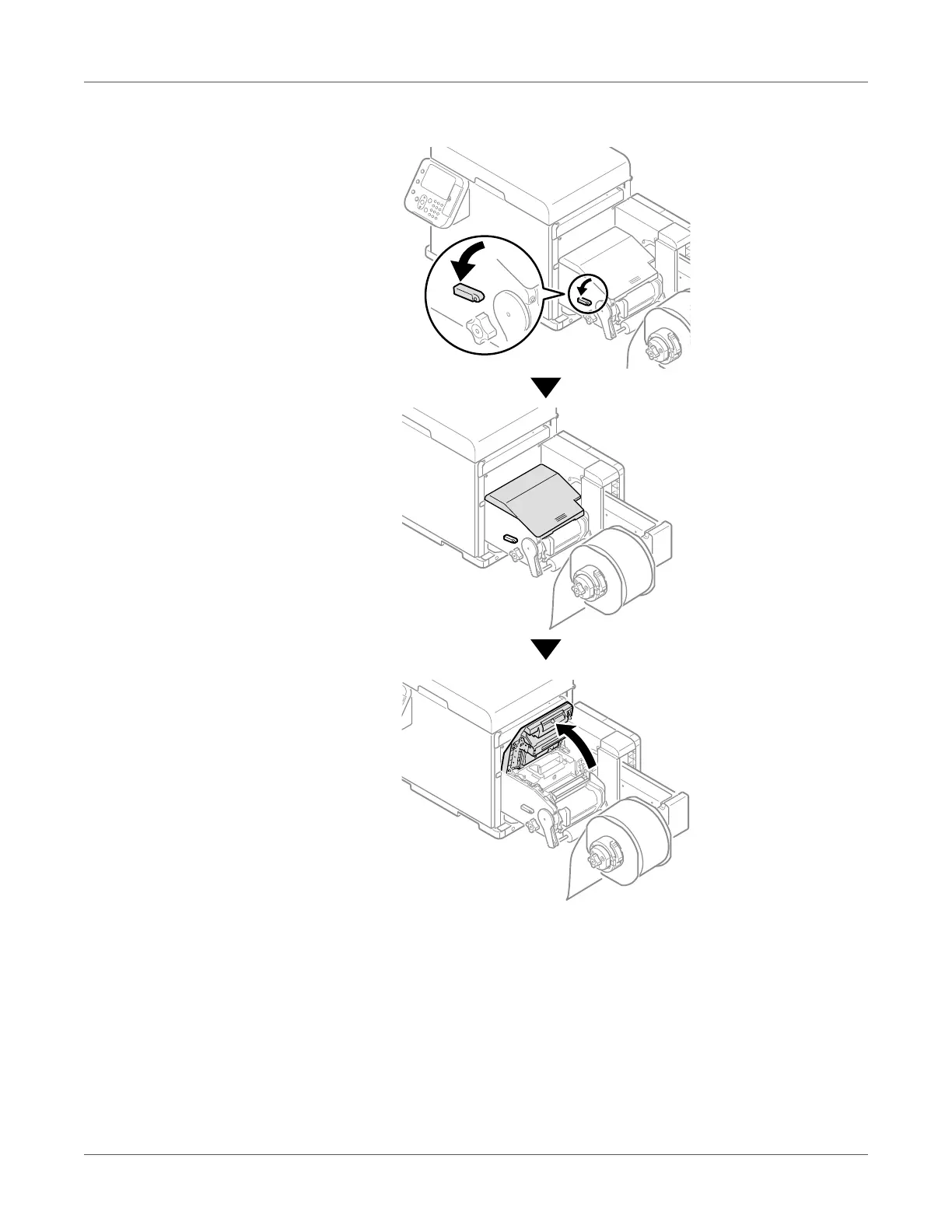

12 Lower the unwinder cover open lever to open the unwinder cover.

Note: Securely open the unwinder cover so it does not close while cleaning.
