Cleaning

QL-300 User Guide 377

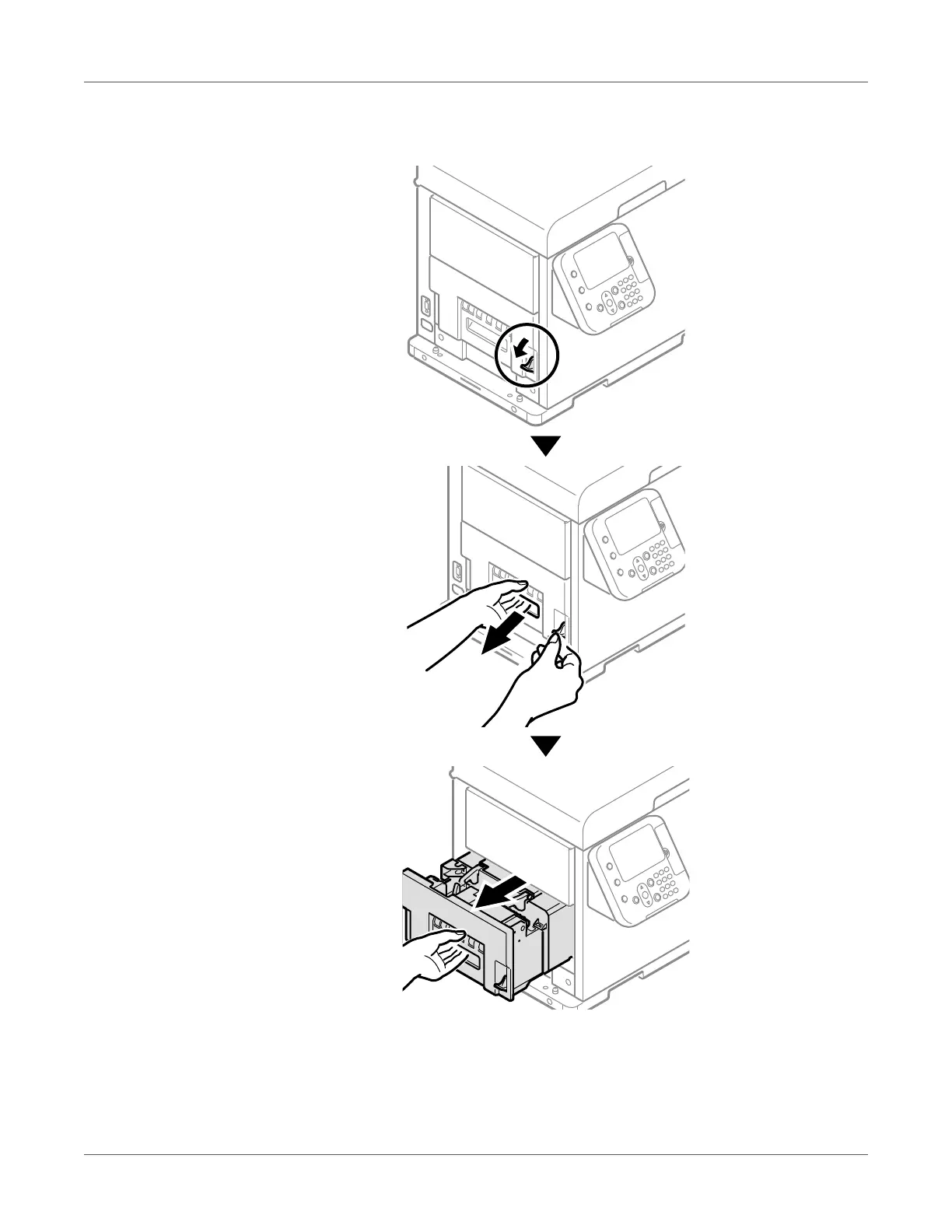

15 While pulling the fuser and exit unit locking lever towards you, pull out the fuser and exit

unit.
