Cleaning

QL-300 User Guide 385

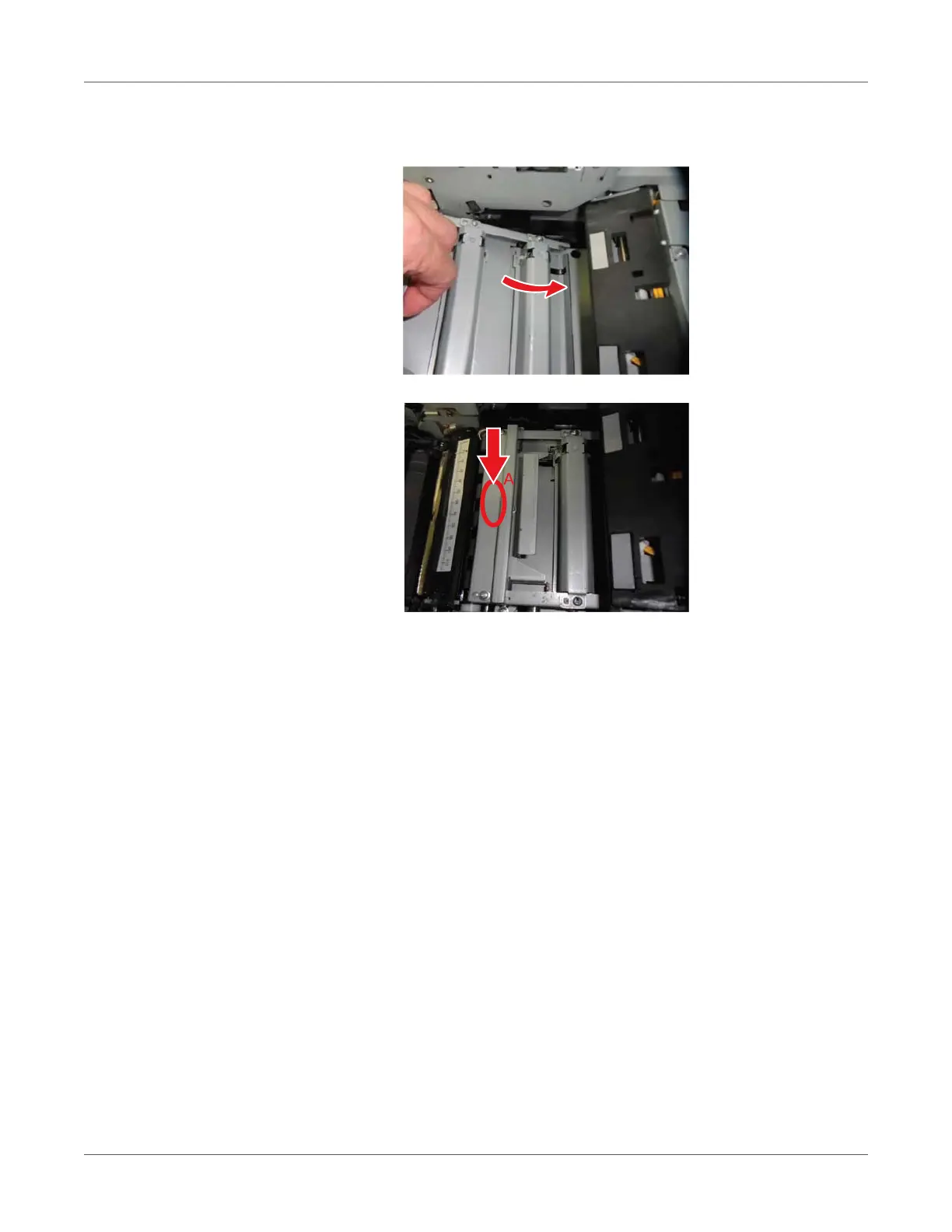

26 Firmly push the paper guide all the way in the direction of the arrow, and then push on the

A position to lock it.
