Cleaning

QL-300 User Guide 396

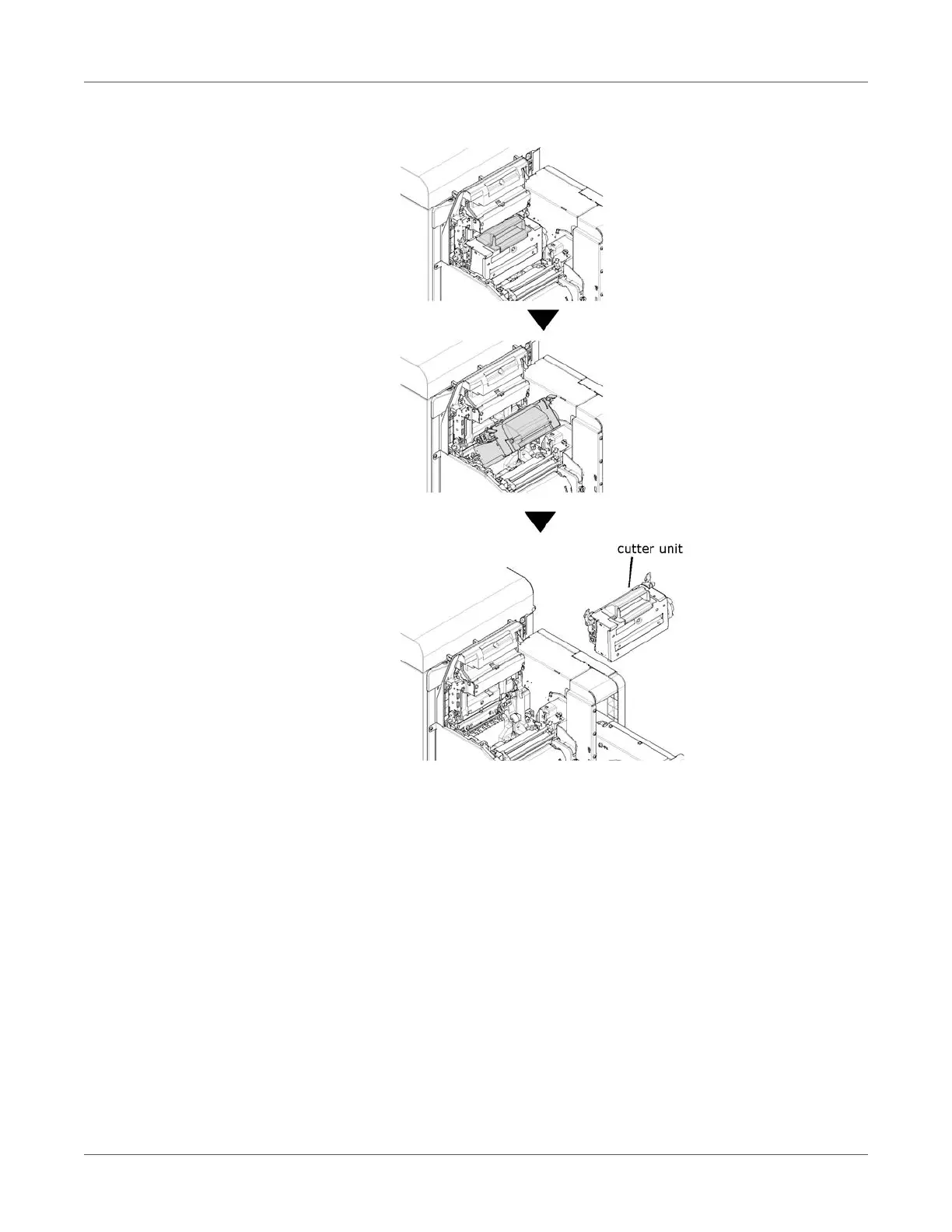

6 Hold the handle of the cutter to remove the cutter unit.

Note: Be careful that the cutter unit does not hit the sensor cover (upper) when removing it.

7 Remove any paper left in the cutter unit.
