PC Connection
QL-300 User Guide 44
If the cable is routed in front of the device, use the cable clamps attached to the unwinder.
Passing the cable through the clamps avoids problems with unwinder operation.
1 Prepare a LAN cable and hub.
Note: The printer does not come with a LAN cable or hub. If you need a LAN cable
(Category 5e or higher, twisted cable, straight) and hub, it is up to you to prepare them.
Note: The initial factory default setting of the Admin Setup is “Gigabit network: Disabled.”
This setting needs to be changed in order to use a 1000BASE-T connection. Setting
Procedure: On the control panel, input your password in Admin Setup, and then select
Network Setup > Gigabit Network > Enable.

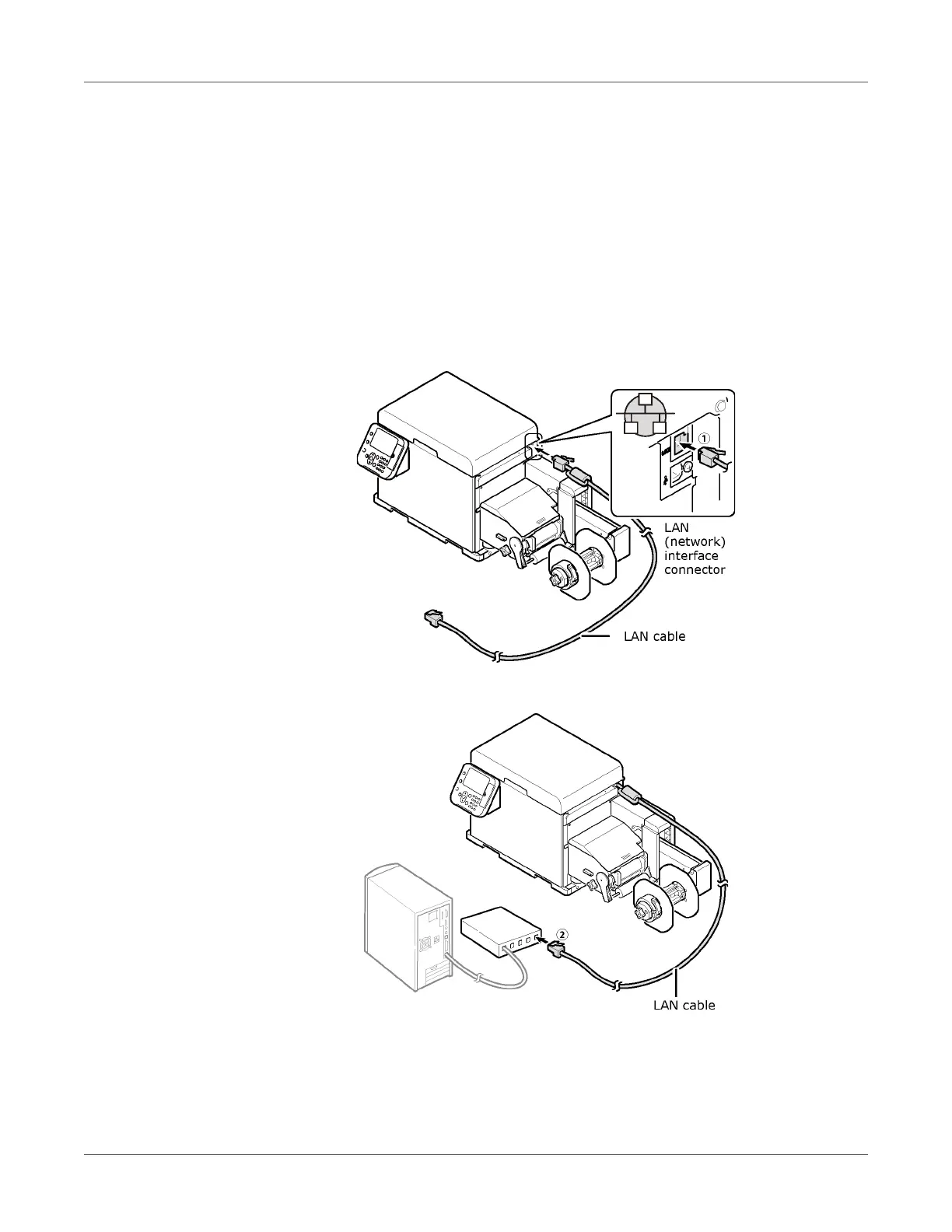

2 Connect the LAN cable to the printer's LAN (network) interface connector (1).
3 Connect the other end of the LAN cable to a hub connector (2).
