PC Connection

QL-300 User Guide 60

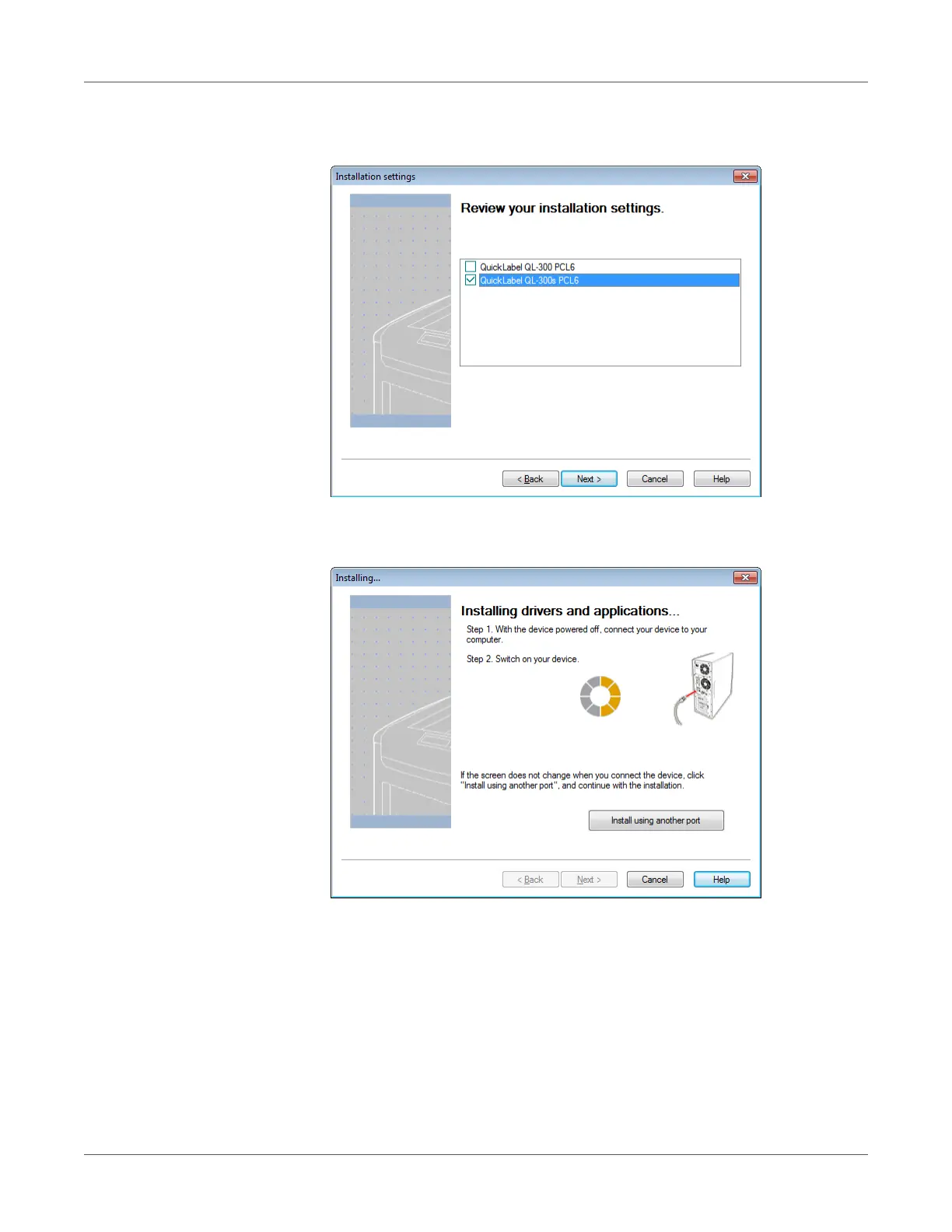

7 Select the driver version that matches your printer model. For example, select QuickLabel

QL-300s if you are using a QL-300s printer. Then click Next.

8 When prompted, connect the QL-300 to your PC with a USB cable. Then power on the

QL-300. The installation will continue.
