Printing

QL-300 User Guide 96

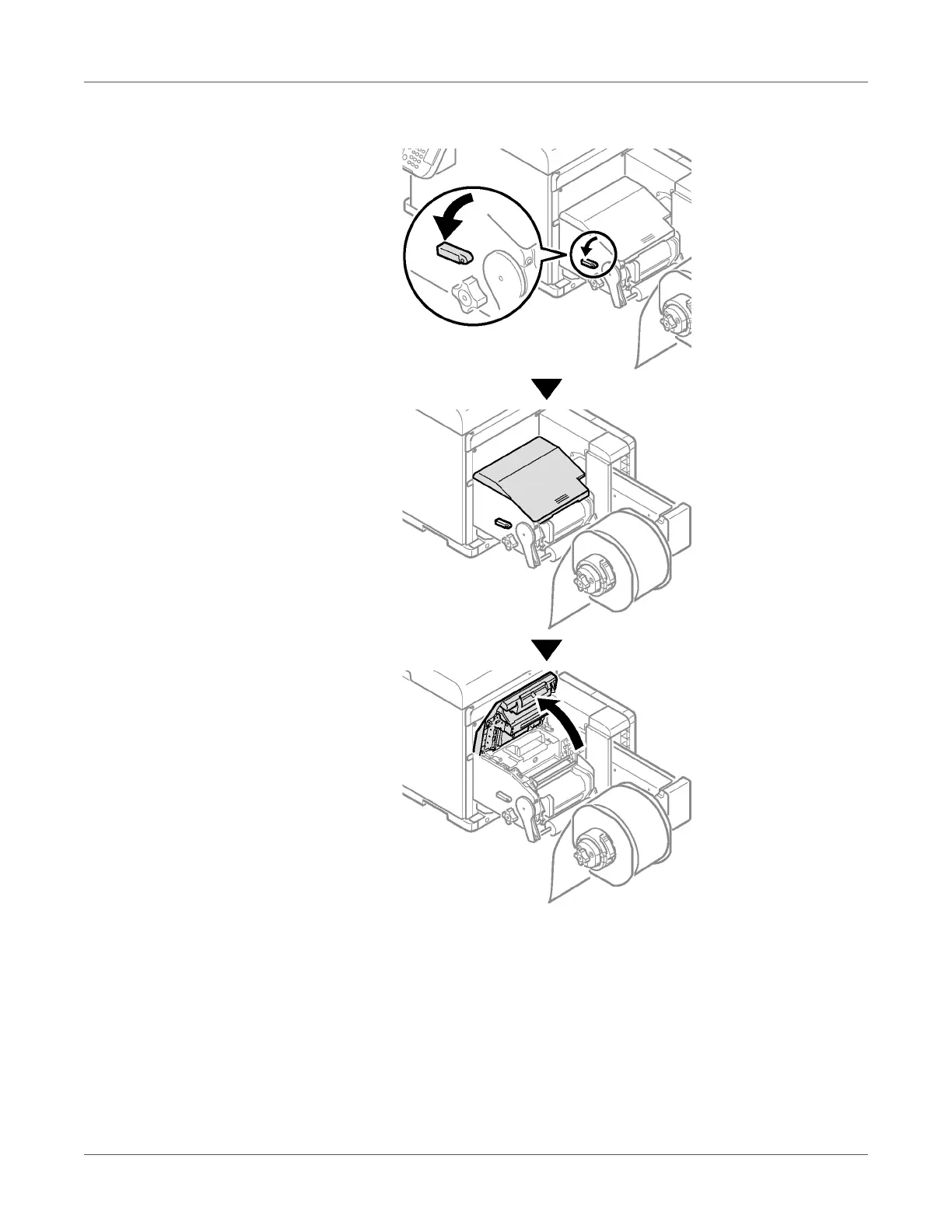

Open the Unwinder Cover manually in the direction indicated by the arrow until it locks.

Note: Open the Unwinder Cover until it locks securely.
