Printing

QL-300 User Guide 99

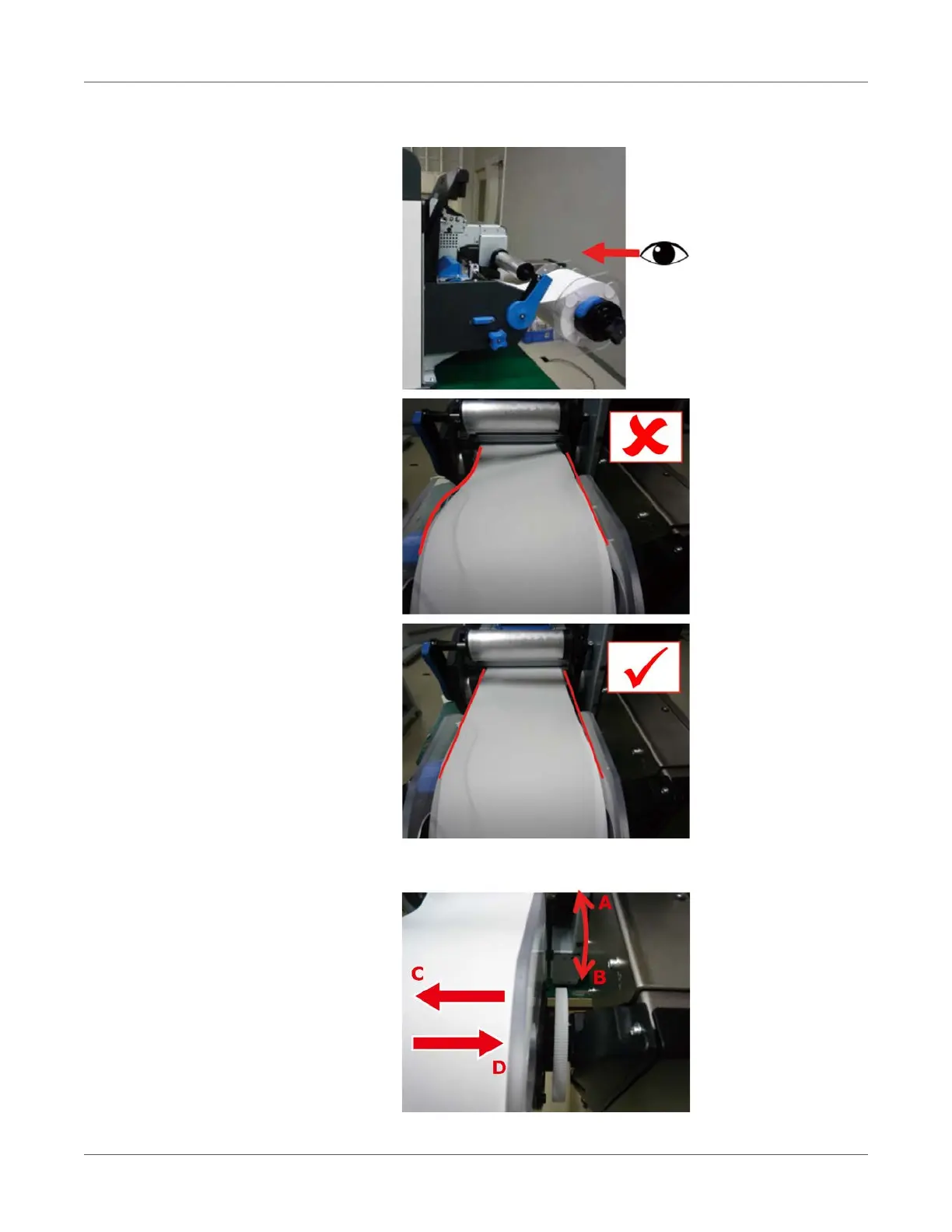

14 Check the paper status from the direction indicated by the arrow.

15 Rotate the Roll Paper Guide Adjustment Knob to adjust the paper until it is straight.
