ABL90 FLEX reference manual 2. Disk functions setup programs
2-9
Saving setup
You can copy your analyzer's current setup configuration onto a CD-RW,
removable drive, or network. It can be reloaded if the current setup is lost or
damaged or if the same setup configuration should be loaded on other analyzers
without performing all the Setup programs.
Step Action
1. Press Edit location to select destination.
2. Select the required location by touching it on the screen.
If a removable drive is used, connect it to the USB port
Press Expand/Collapse to open a folder in a directory or within a
folder.
When completed, the correct destination appears in the upper part
of the box.

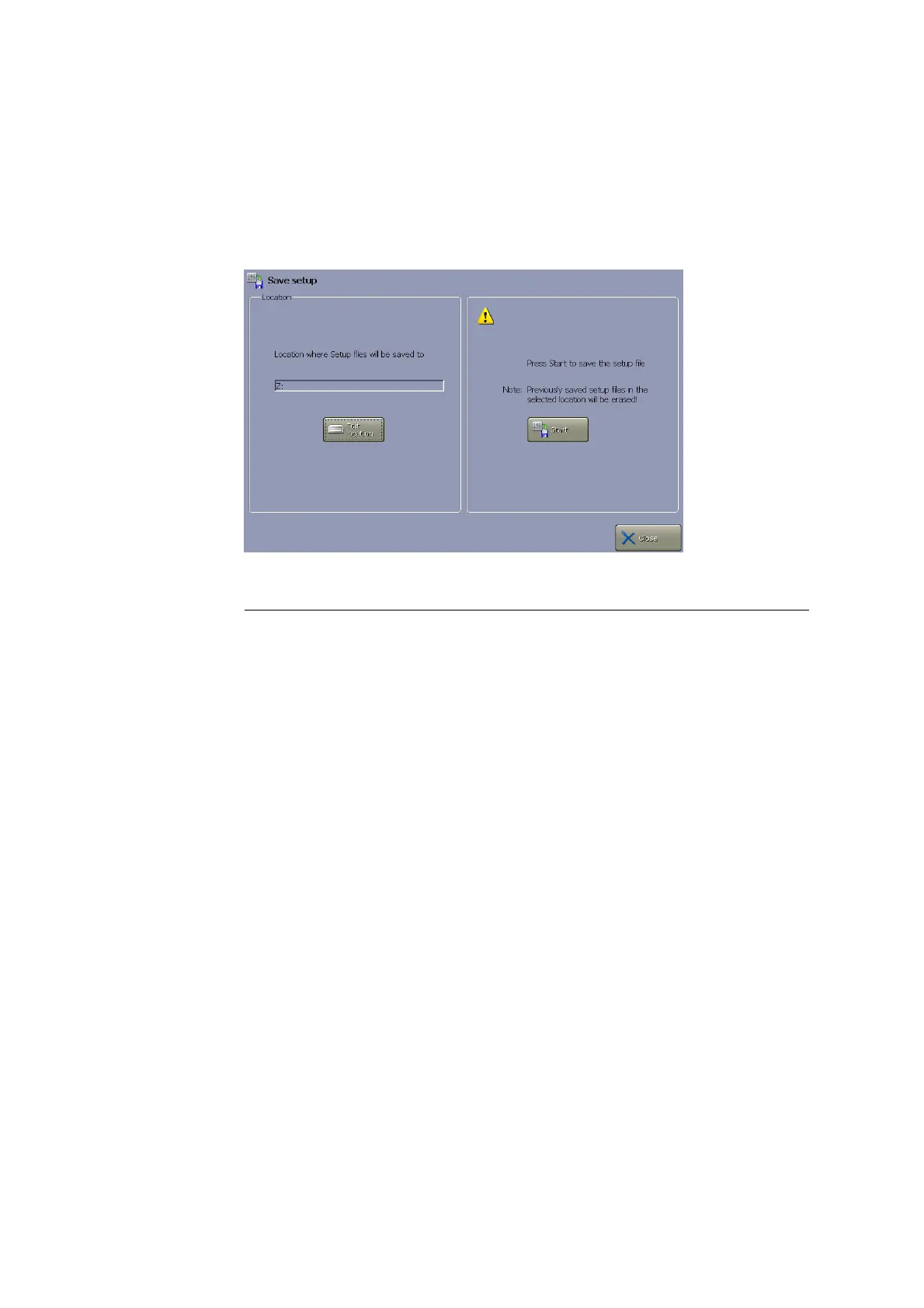

3. Press Back to return to the Save setup screen.
4. On the Save setup screen press Start.
5. When saving is complete, press Close to return to the main screen.
6. Remove the removable drive, if any.
Purpose
