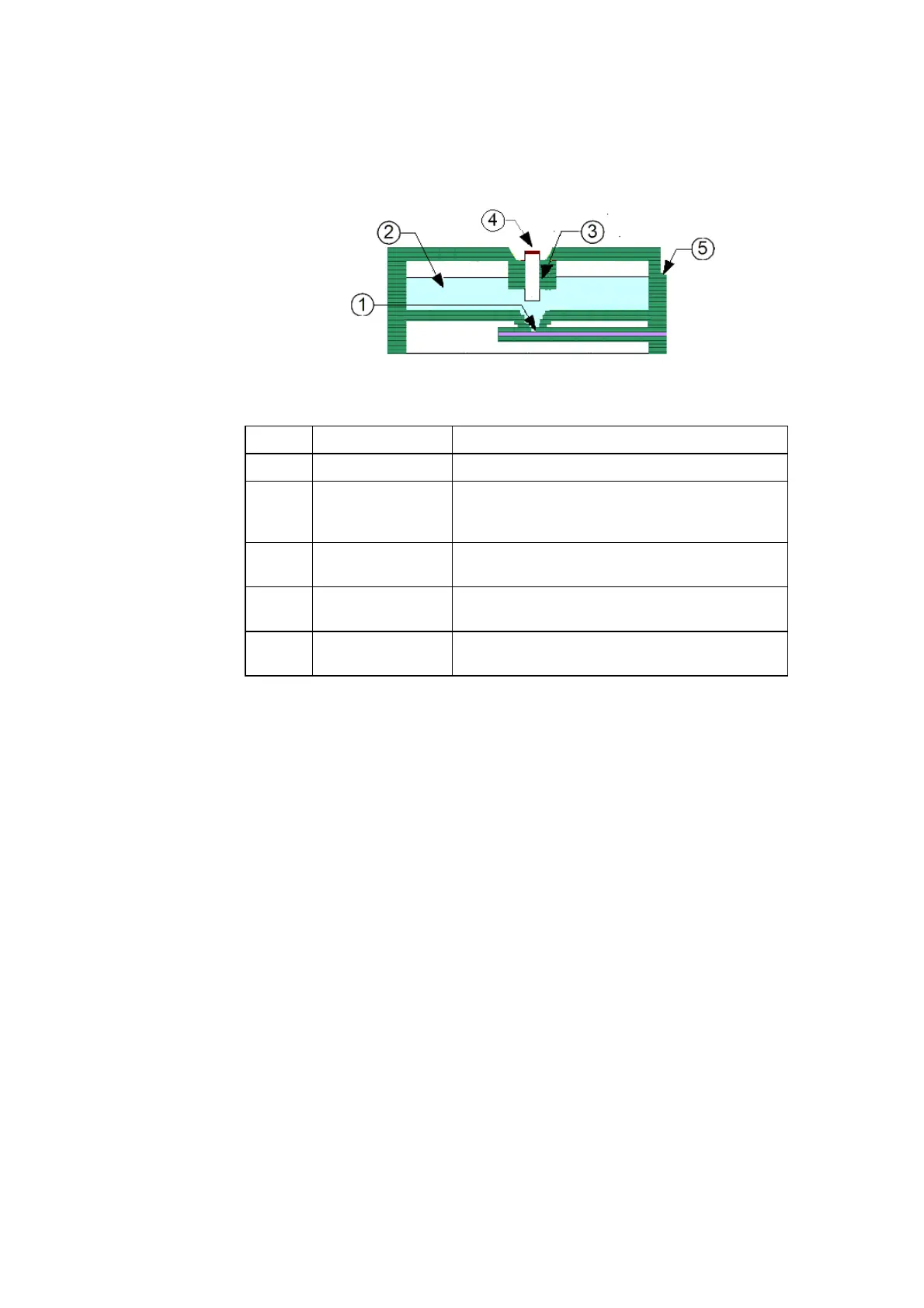

Construction of the reference electrode
Item Part Description/Function
1 Membrane Interface to the sample.
2 Electrolyte
solution
Acts as a salt-bridge solution that maintains
an electrical contact between the electrode
and the sample.
3 Electrode Provides the contact between the Electrolyte
solution and the electrical contact.
4 Electrical contact The point of electrical contact between the
electrode and the analyzer.
5 Housing Sensor cassette housing with integrated
reference electrode.
