(B) Use Unique ID authentication
When this checkbox is selected, the unique ID authentication feature is used during transition to the RMA
state.
4.4.3.11 Checksum
This command acquires the checksum of data of flash memory in the target device.
4.4.3.12 SWAS Recover
This command executes the SWAS Recover command in the target device. For the SWAS Recover
command, refer to the Flash Boot Firmware User’s Manual.
4.4.3.13 Start
This command executes the commands selected in the [Operation Settings] tabbed page of the [Setup]
dialog box.
4.4.3.14 Get Signature
This command establishes connection with the target device and displays MCU information in the console
window.
4.4.3.15 Get Flash Options
This command acquires information on flash options from the target device and displays it in the console
window and a popup dialog box. The acquired information can also be saved as a new setting file.
• [Flash Options] dialog box
The result of executing the Get Flash Options command will be displayed on the [Block Setting] and
[Flash Option] tabbed pages of this dialog box.

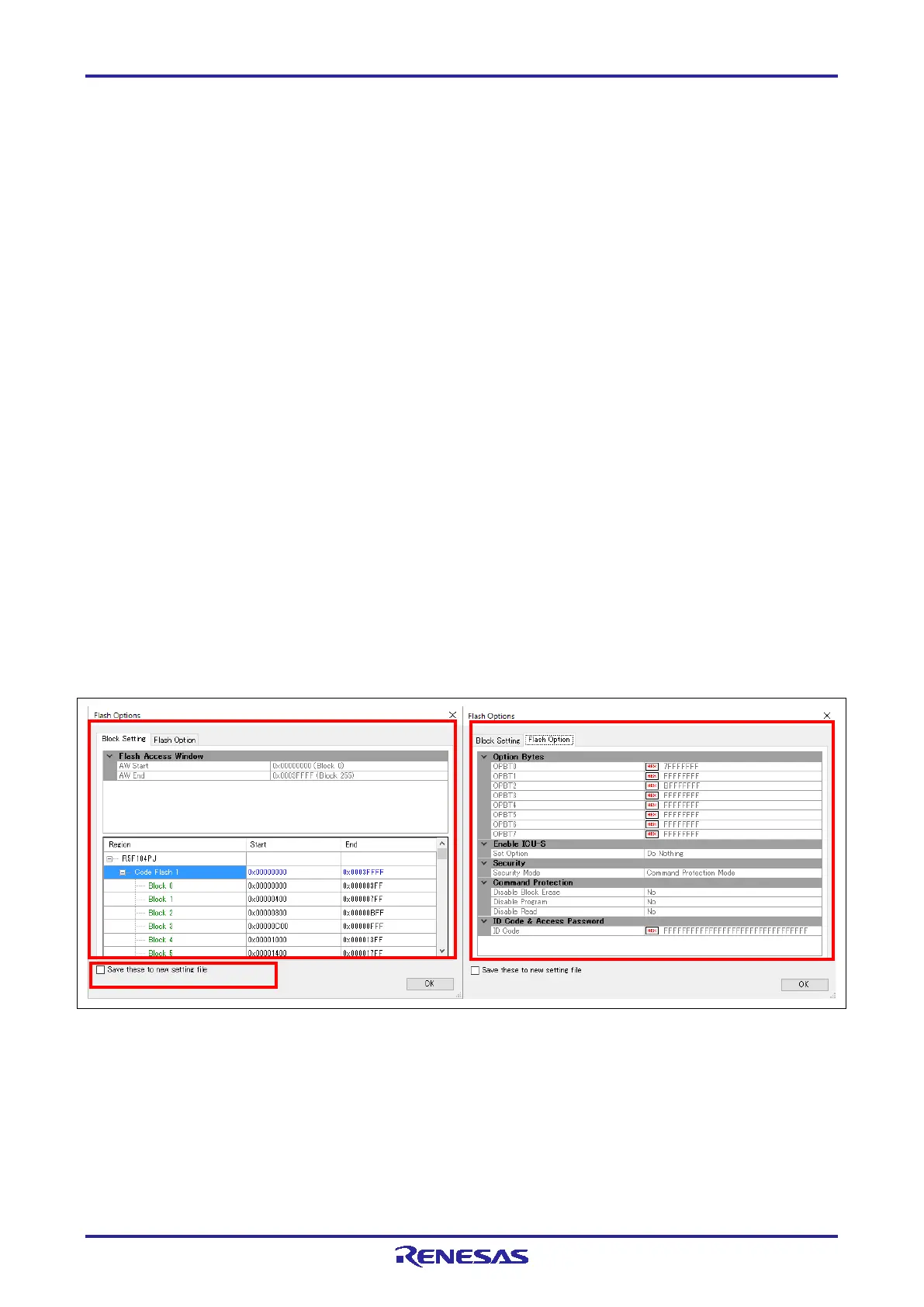

Figure 4.25 [Flash Options] Dialog Box
(A) [Block Setting] tabbed page
This page shows the settings made for [Lockbit & OTP] on the [Block Settings] tabbed page of the [Setup]
dialog box. For details, see section 4.3.3, [Block Settings] tabbed page.
(B) [Flash Option] tabbed page
This page shows the settings made on the [Flash Options] tabbed page of the [Setup] dialog box. For
details, see section 4.3.4, [Flash Options] tabbed page.
