6. Pull out tray 2 from the mainframe.

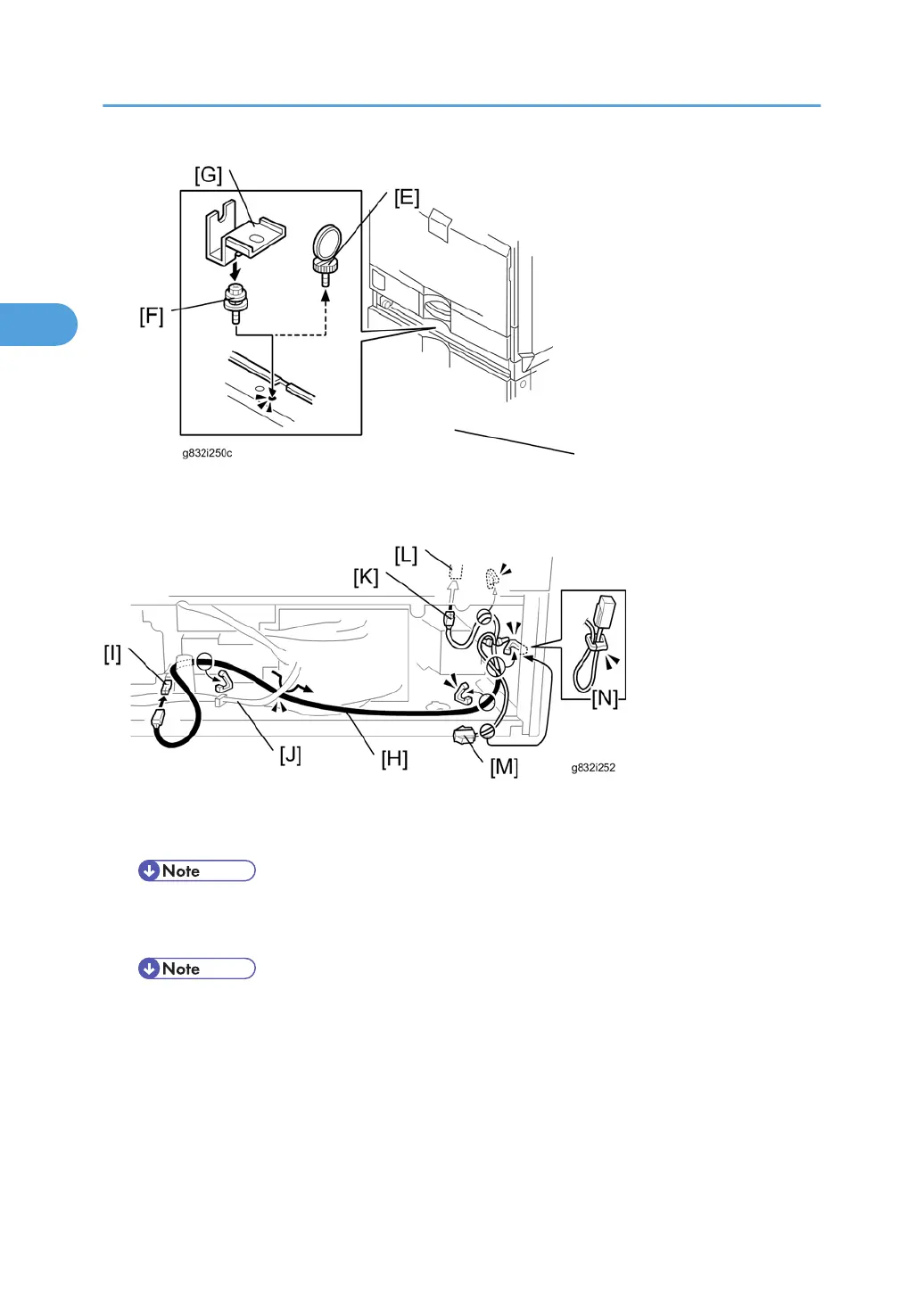

7. Replace the shoulder screw [E] with the washer screw [F], using securing bracket [G] ( x 1).
1. Connect the harness [H] to the connector [I] of the tray heater.
2. Route the harness [H] as shown and clamp it with four clamps ( x 4).
• Make sure that the harness [H] is placed below the harness [J].
3. Connect one harness [K] of the two-way harness to the connector [L] of the mainframe.
• The harness [K] of the two-way harness, which has two binds, is for the connector of the
mainframe. The harness [M], which has one bind, is for another optional paper feed unit.
4. Clamp the other harness [M] of the two-way harness as shown [N] if you do not install another optional
paper feed unit.
5. Reassemble the mainframe and optional paper tray.
2. Installation
122
