Installation Procedure

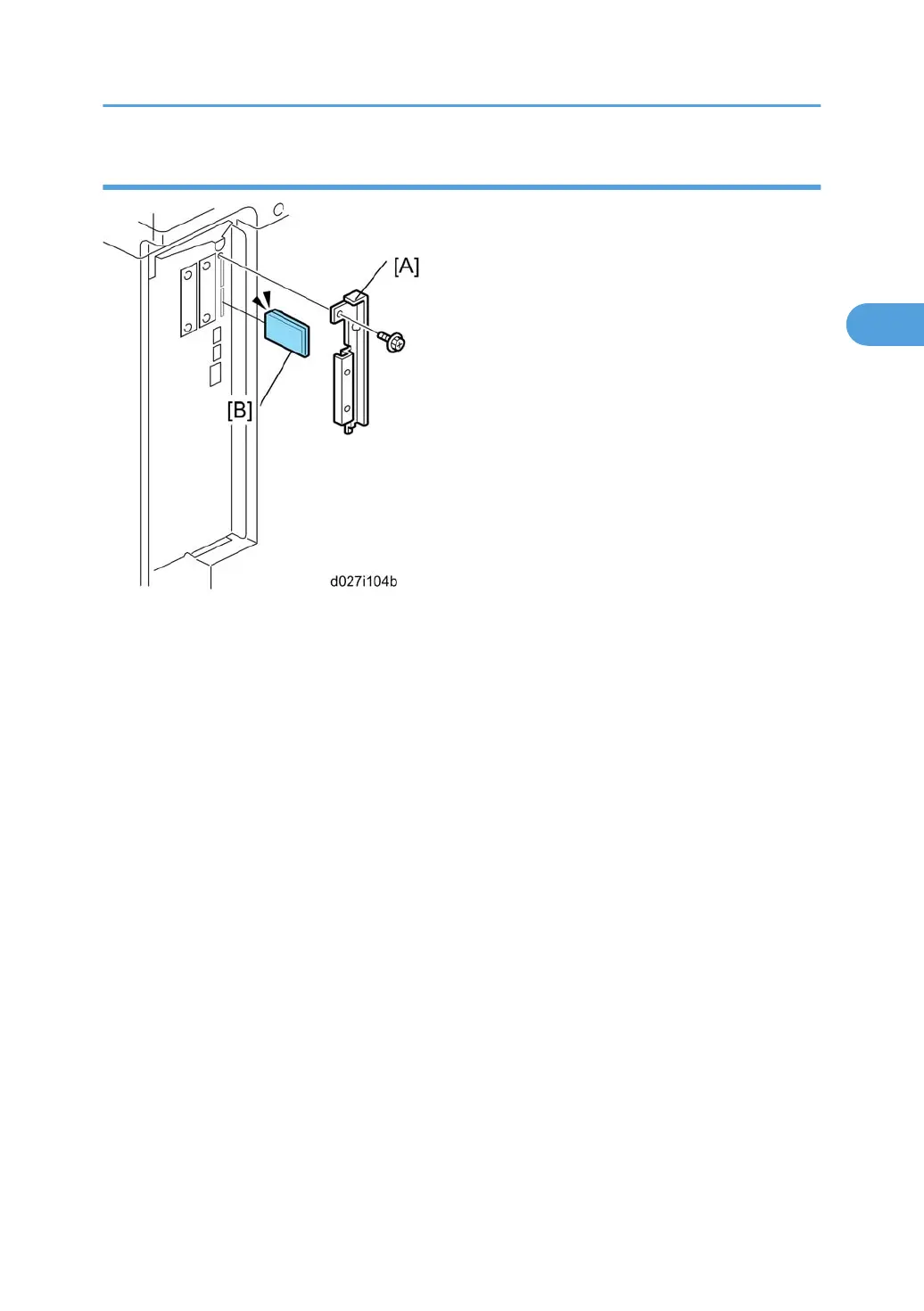

1. Remove the SD card slot cover [A] ( x 1).
2. Turn the SD-card label [B] to face the rear of the machine. Then push it slowly into slot 2 until you hear
a click.
3. Turn on the main power switch, and then enter the SP mode.
4. Select SP5878-002, and then press "Execute" on the LCD.
5. Exit the SP mode after "Completed" is displayed on the LCD.
6. Turn off the main power switch.
7. Remove the SD card from slot 2.
8. Attach the SD card slot cover [A] ( x 1).
Controller Options
141
2
