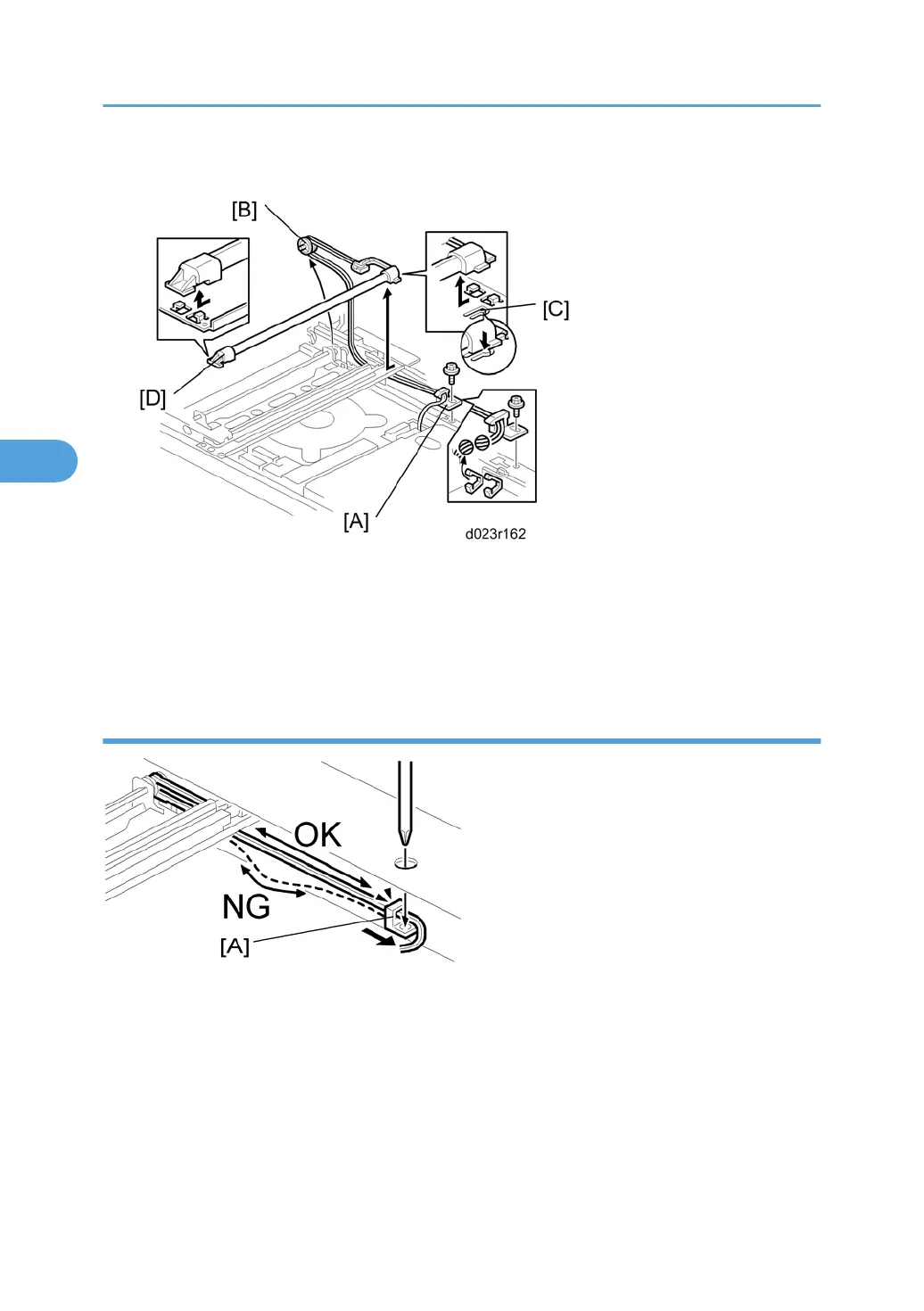

9. Release three clamps.
10. Release the clamp [A] ( x 1).
11. Remove the pulley [B].
12. Hold down the snap [C], and then slide the exposure lamp [D] to the front side.
13. Exposure lamp [D]
Reassembling
Run the cable so there is no slack. Slide the clamp [A] to adjust the cable slack.
4. Replacement and Adjustment
