9. Remove the two screws and then the front holder bracket [A] (as seen from the front).

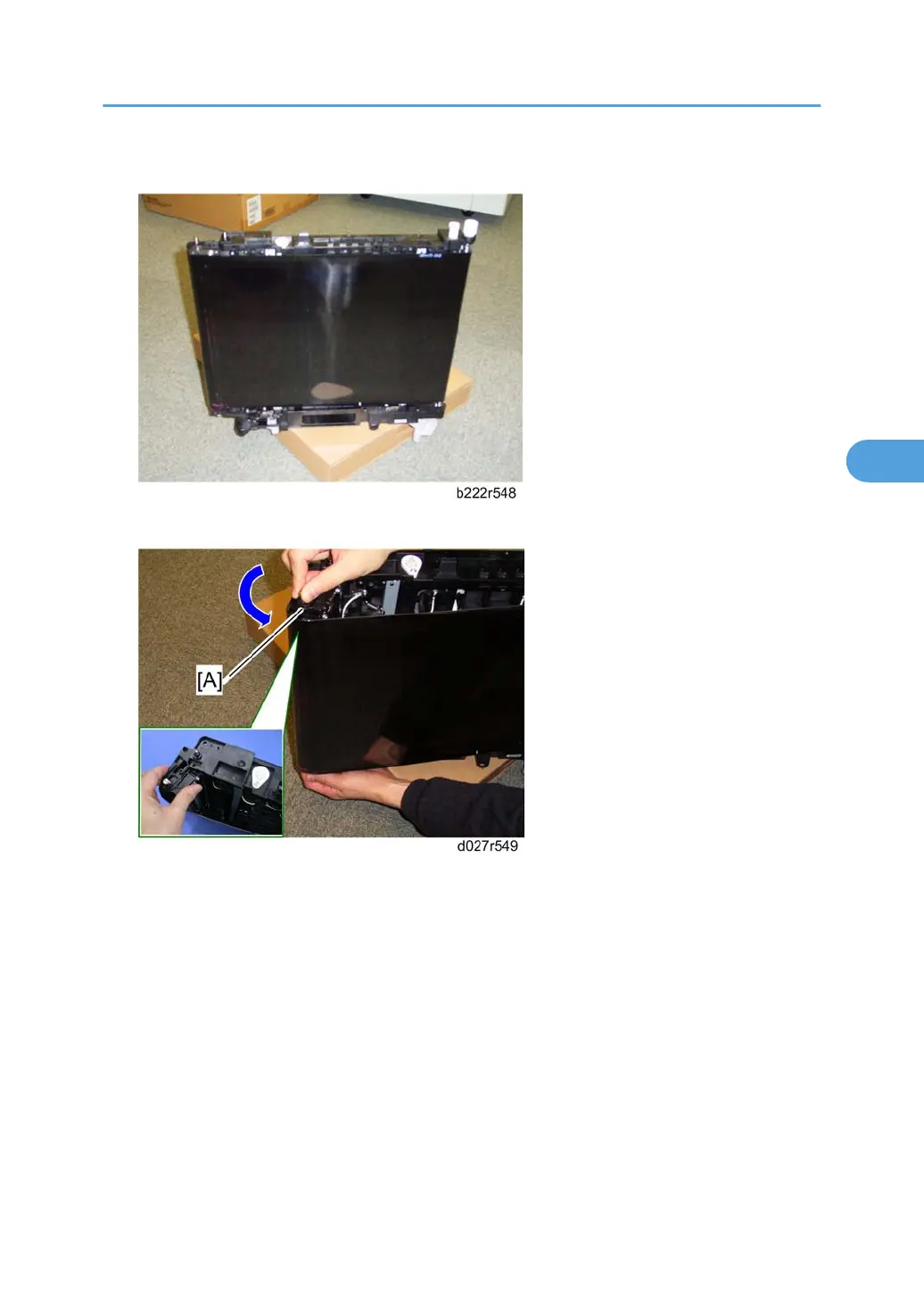

10. Put the front side of the image transfer belt unit on a corner of the table or a box as shown.

11. Pull the tension roller [A] as shown.

Image Transfer

217

4
