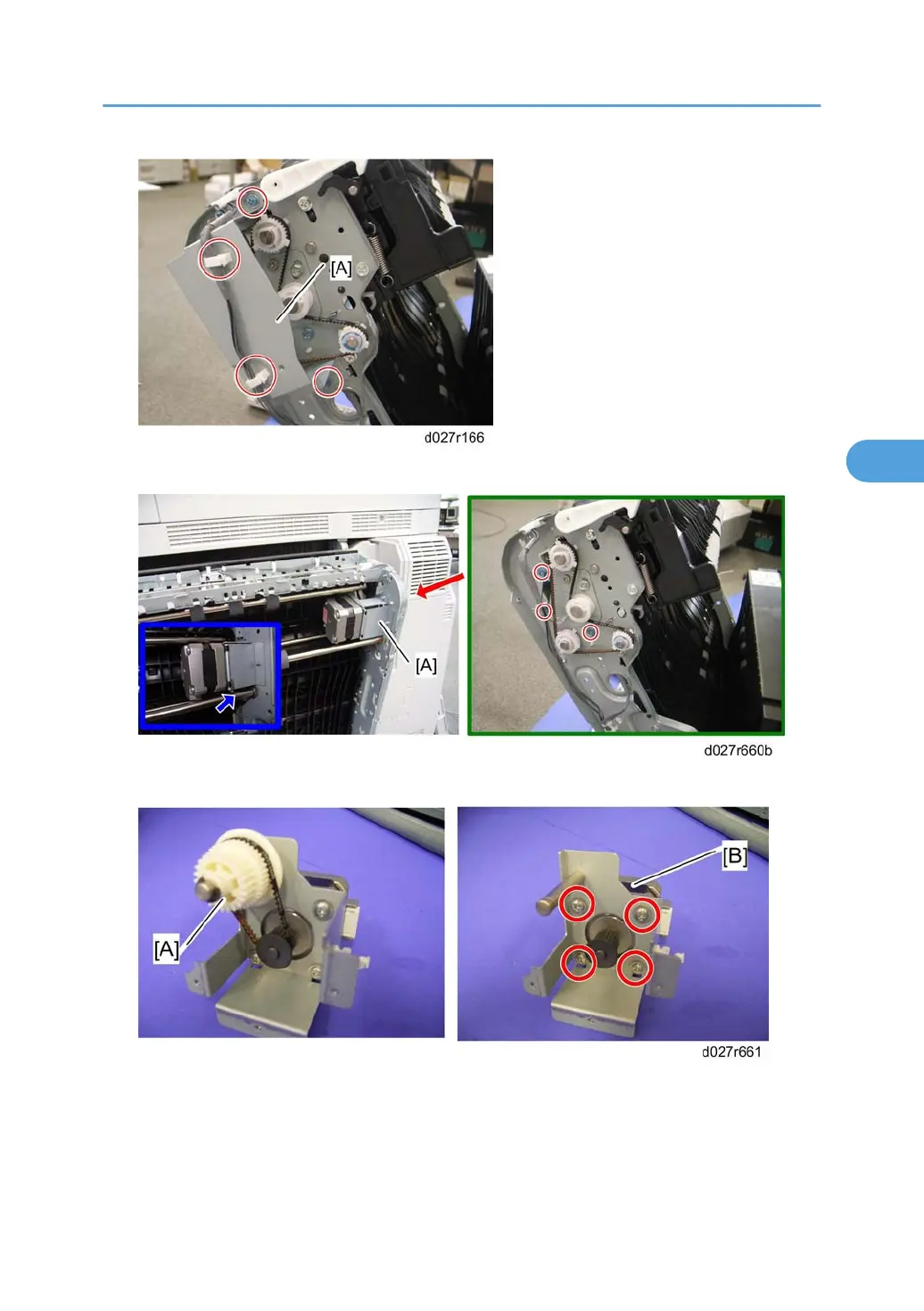

5. Duplex inverter motor bracket cover [A] ( x 2, x 2)
6. Duplex inverter motor bracket [A] ( x 3, x 1, x 1)
7. Gear [A] ( x 1, belt x 1)
8. Duplex inverter motor [B] ( x 4)
Drive Unit
239
4
