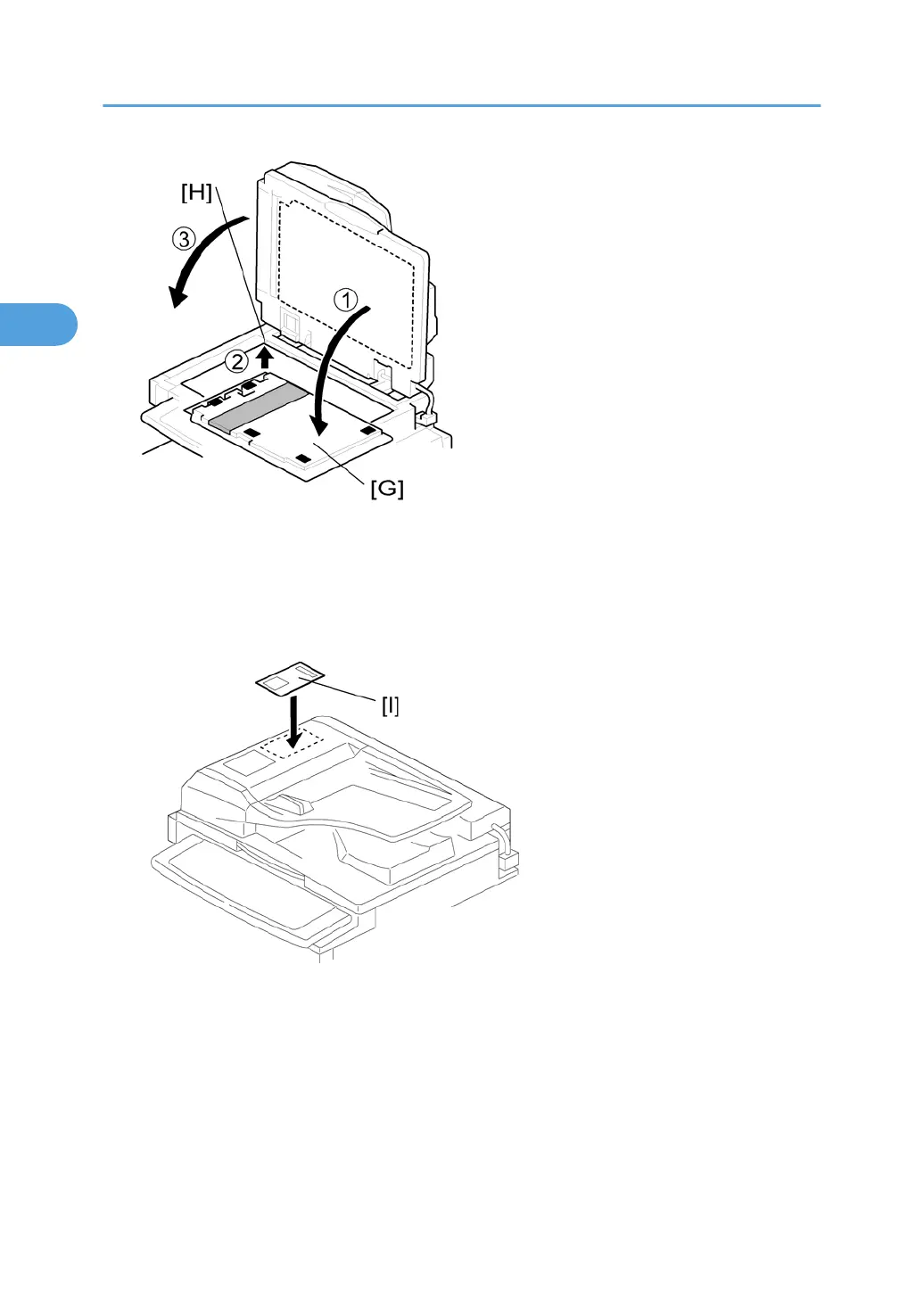

9. Peel off the platen sheet [G] and place it on the exposure glass.
10. Align the rear left corner of the platen sheet with the corner [H] on the exposure glass.
11. Close the ARDF.
12. Open the ARDF and check that the platen sheet is correctly attached.
13. Attach the decal [I] to the top cover as shown. Choose the language you want.
14. Plug in and turn on the main power switch of the machine, and then check the ARDF operation.
15. Make a full size copy. Check that the registrations (side-to-side and leading edge) and image skew
are correct. If they are not, adjust the registrations and image skew referring to "Copy Adjustments"
in the "Replacements and Adjustments” section.
