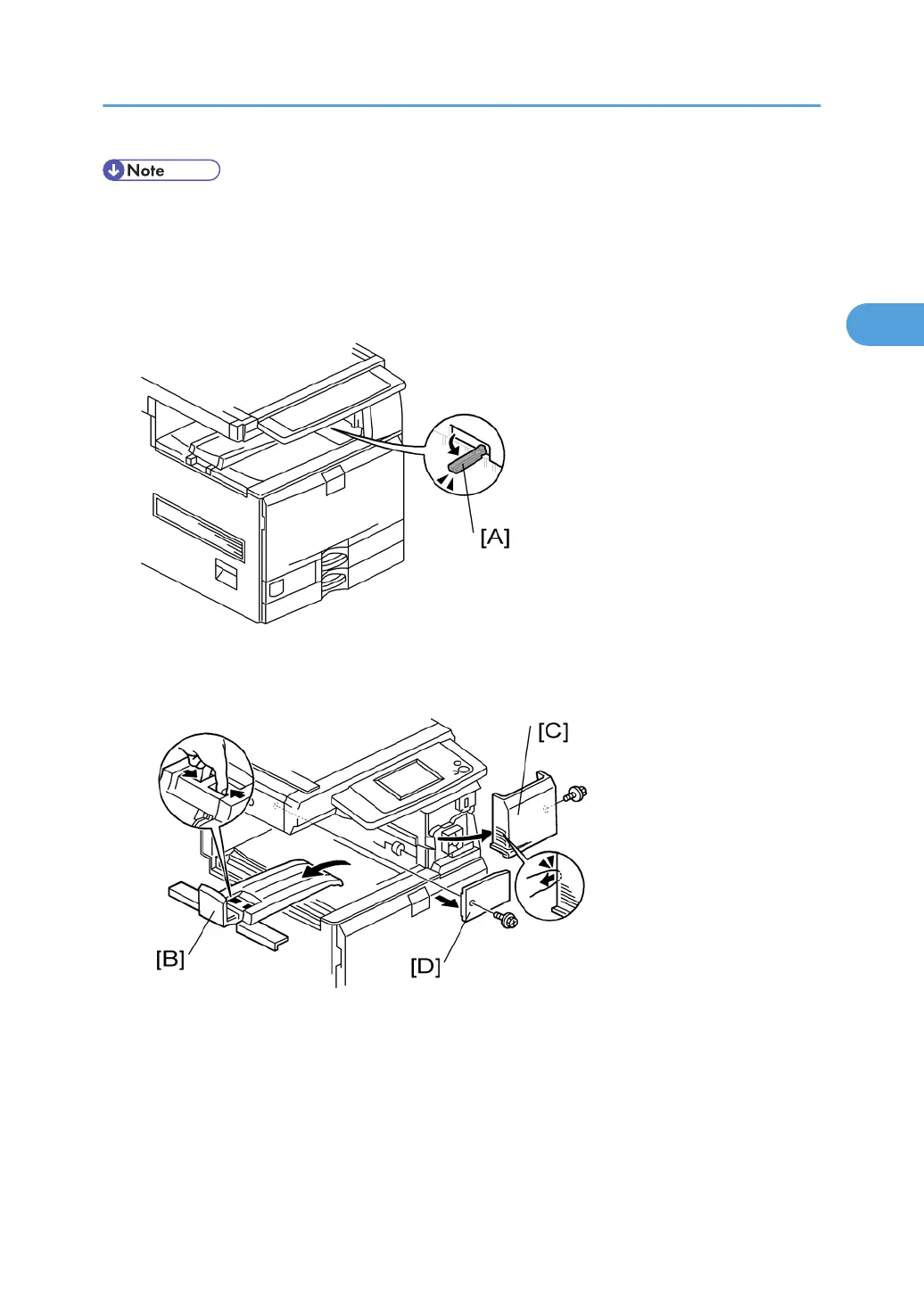

1. If you will install the 1-bin tray (D414) in the machine, install the 1-bin tray before you install the
bridge unit (D386). This will make it easier for you to do the following procedure.
2. If you will install a finisher (B408 or B793) in the machine, install the finisher after you install the
bridge unit (D386).
1. Remove all tapes.
2. If the sensor feeler [A] is out, fold it into the machine.
3. Open the right door of the machine.
4. Remove the inner tray [B].
5. Remove the front right cover [C] ( x 1).
6. Remove the connector cover [D] ( x 1).
Bridge Unit (D386)
75
2
