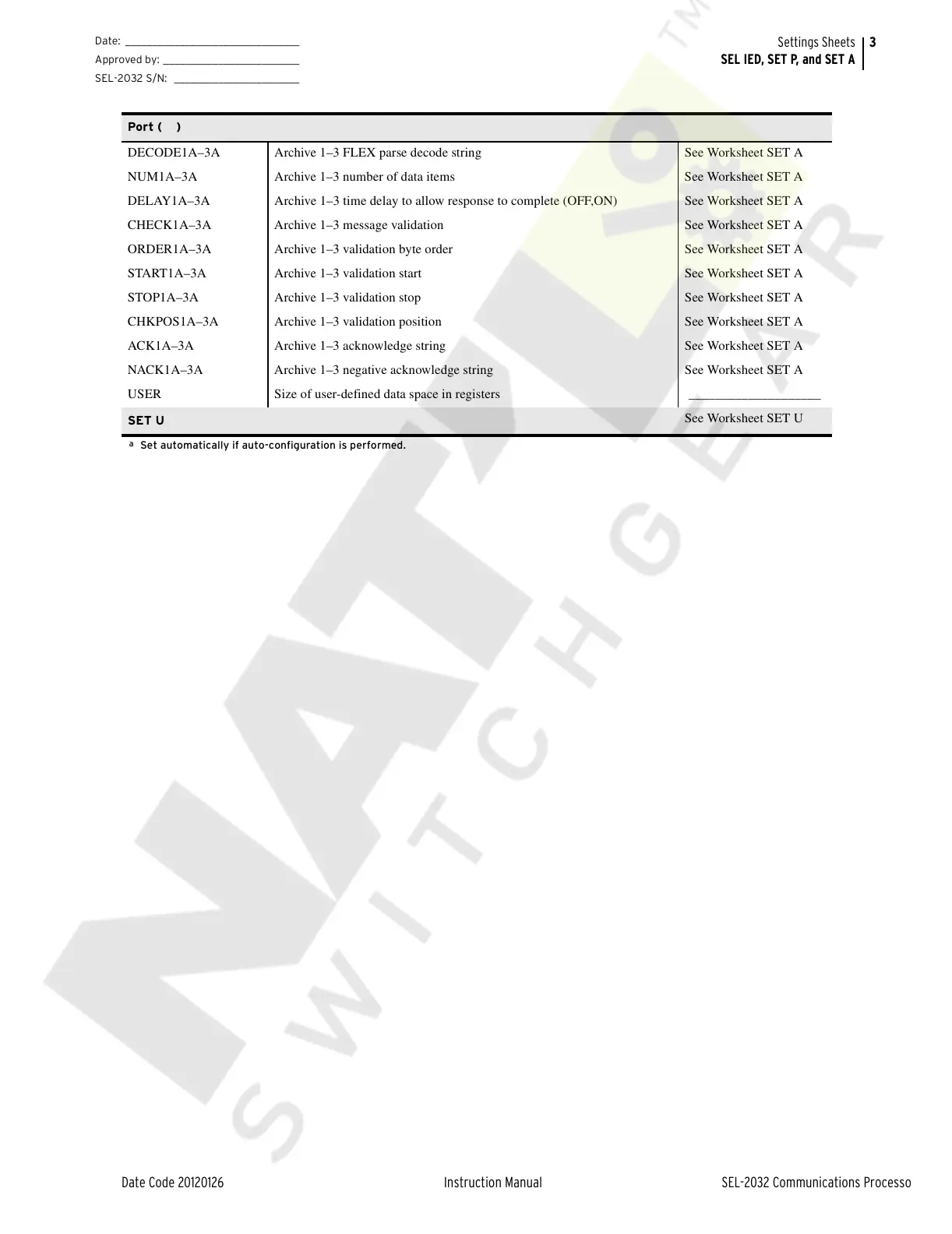

Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Settings Sheets
SEL IED, SET P, and SET A
Date: ________________________________
Approved by: _________________________
SEL-2032 S/N: _______________________
DECODE1A–3A Archive 1–3 FLEX parse decode string See Worksheet SET A
NUM1A–3A Archive 1–3 number of data items See Worksheet SET A
DELAY1A–3A Archive 1–3 time delay to allow response to complete (OFF,ON) See Worksheet SET A
CHECK1A–3A Archive 1–3 message validation See Worksheet SET A
ORDER1A–3A Archive 1–3 validation byte order See Worksheet SET A
START1A–3A Archive 1–3 validation start See Worksheet SET A
STOP1A–3A Archive 1–3 validation stop See Worksheet SET A
CHKPOS1A–3A Archive 1–3 validation position See Worksheet SET A
ACK1A–3A Archive 1–3 acknowledge string See Worksheet SET A
NACK1A–3A Archive 1–3 negative acknowledge string See Worksheet SET A
USER Size of user-defined data space in registers ____________________
SET U
See Worksheet SET U
a
Set automatically if auto-configuration is performed.
