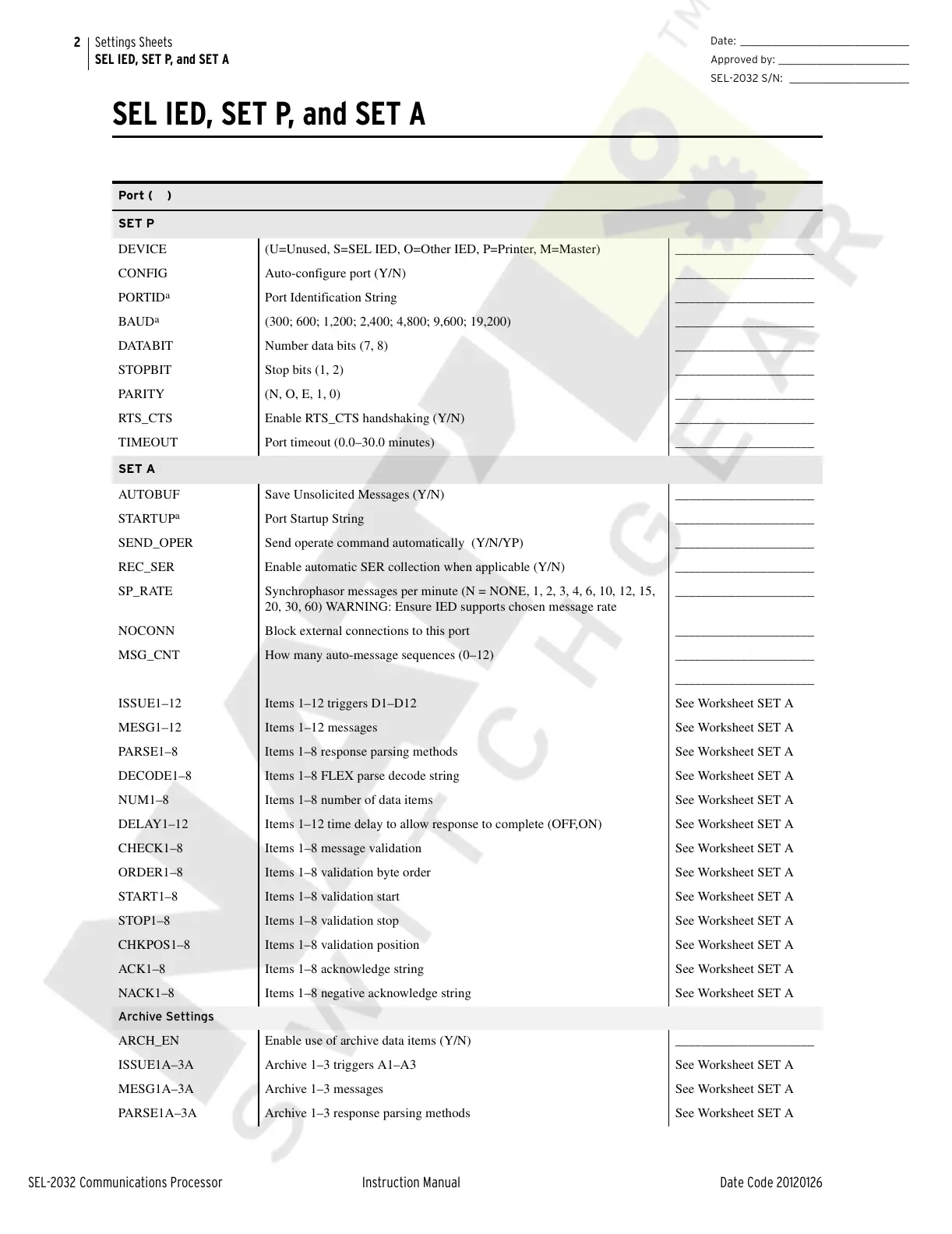

SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Settings Sheets
SEL IED, SET P, and SET A
Date: ________________________________
Approved by: _________________________
SEL-2032 S/N: _______________________
SEL IED, SET P, and SET A
Port ( )
SET P
DEVICE (U=Unused, S=SEL IED, O=Other IED, P=Printer, M=Master) _____________________
CONFIG Auto-configure port (Y/N) _____________________
PORTID
a
Port Identification String _____________________
BAUD
a
(300; 600; 1,200; 2,400; 4,800; 9,600; 19,200) _____________________
DATABIT Number data bits (7, 8) _____________________
STOPBIT Stop bits (1, 2) _____________________
PARITY (N, O, E, 1, 0) _____________________
RTS_CTS Enable RTS_CTS handshaking (Y/N) _____________________
TIMEOUT Port timeout (0.0–30.0 minutes) _____________________
SET A
AUTOBUF Save Unsolicited Messages (Y/N) _____________________
STARTUP
a
Port Startup String _____________________
SEND_OPER Send operate command automatically (Y/N/YP) _____________________
REC_SER Enable automatic SER collection when applicable (Y/N) _____________________
SP_RATE Synchrophasor messages per minute (N = NONE, 1, 2, 3, 4, 6, 10, 12, 15,
20, 30, 60) WARNING: Ensure IED supports chosen message rate
_____________________
NOCONN Block external connections to this port _____________________
MSG_CNT How many auto-message sequences (0–12) _____________________
_____________________
ISSUE1–12 Items 1–12 triggers D1–D12 See Worksheet SET A
MESG1–12 Items 1–12 messages See Worksheet SET A
PARSE1–8 Items 1–8 response parsing methods See Worksheet SET A
DECODE1–8 Items 1–8 FLEX parse decode string See Worksheet SET A
NUM1–8 Items 1–8 number of data items See Worksheet SET A
DELAY1–12 Items 1–12 time delay to allow response to complete (OFF,ON) See Worksheet SET A
CHECK1–8 Items 1–8 message validation See Worksheet SET A
ORDER1–8 Items 1–8 validation byte order See Worksheet SET A
START1–8 Items 1–8 validation start See Worksheet SET A
STOP1–8 Items 1–8 validation stop See Worksheet SET A
CHKPOS1–8 Items 1–8 validation position See Worksheet SET A
ACK1–8 Items 1–8 acknowledge string See Worksheet SET A
NACK1–8 Items 1–8 negative acknowledge string See Worksheet SET A
Archive Settings
ARCH_EN Enable use of archive data items (Y/N) _____________________
ISSUE1A–3A Archive 1–3 triggers A1–A3 See Worksheet SET A
MESG1A–3A Archive 1–3 messages See Worksheet SET A
PARSE1A–3A Archive 1–3 response parsing methods See Worksheet SET A
