6
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Settings Sheets

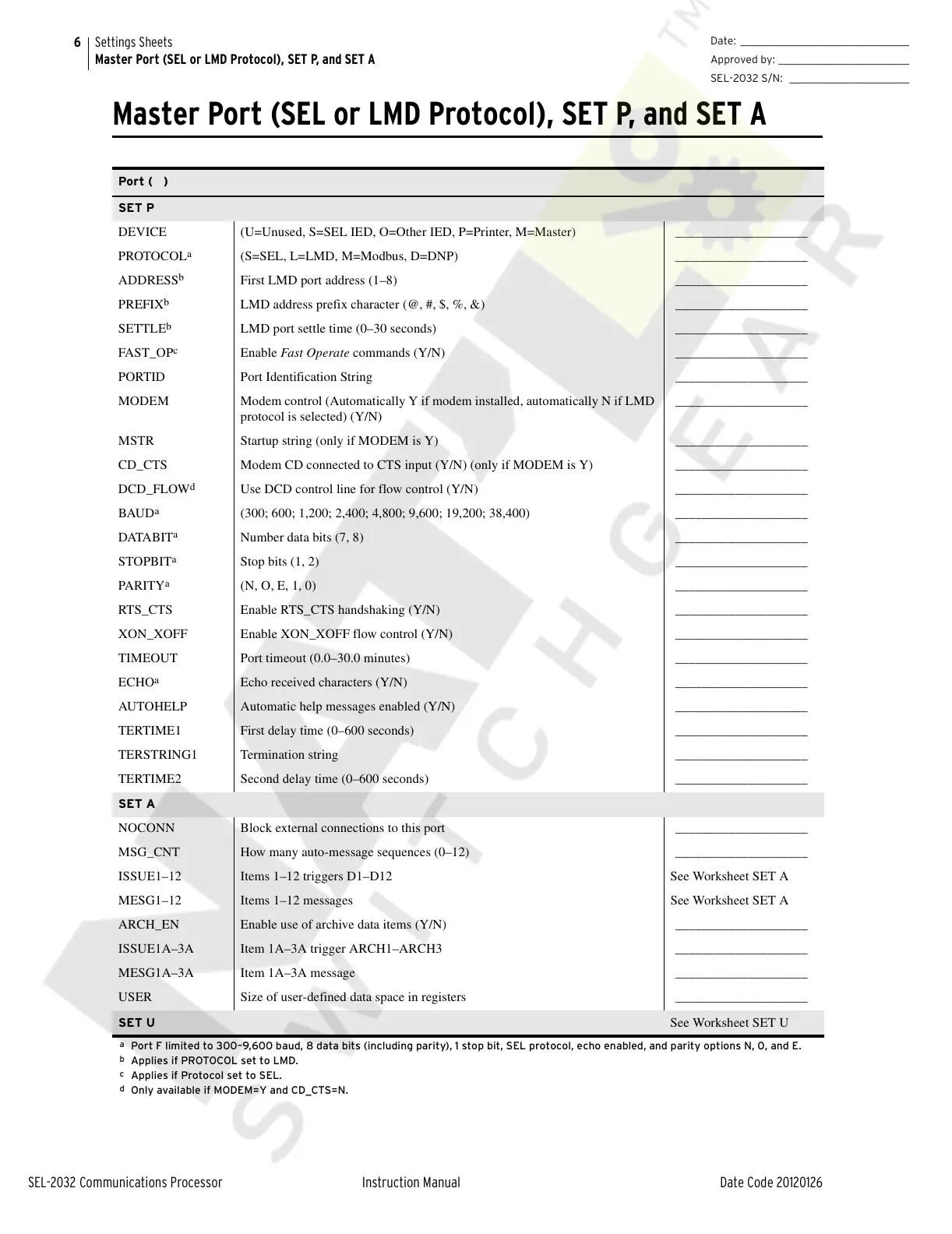

Master Port (SEL or LMD Protocol), SET P, and SET A
Date: ________________________________
Approved by: _________________________
SEL-2032 S/N: _______________________
Master Port (SEL or LMD Protocol), SET P, and SET A
Port ( )
SET P
DEVICE (U=Unused, S=SEL IED, O=Other IED, P=Printer, M=Master) ____________________
PROTOCOL
a
a
Port F limited to 300–9,600 baud, 8 data bits (including parity), 1 stop bit, SEL protocol, echo enabled, and parity options N, 0, and E.
(S=SEL, L=LMD, M=Modbus, D=DNP) ____________________
ADDRESS
b
b
Applies if PROTOCOL set to LMD.
First LMD port address (1–8) ____________________
PREFIX
b
LMD address prefix character (@, #, $, %, &) ____________________
SETTLE
b
LMD port settle time (0–30 seconds) ____________________
FAST_OP
c
c
Applies if Protocol set to SEL.
Enable Fast Operate commands (Y/N) ____________________
PORTID Port Identification String ____________________
MODEM Modem control (Automatically Y if modem installed, automatically N if LMD
protocol is selected) (Y/N)
____________________
MSTR Startup string (only if MODEM is Y) ____________________
CD_CTS Modem CD connected to CTS input (Y/N) (only if MODEM is Y) ____________________
DCD_FLOW
d
d
Only available if MODEM=Y and CD_CTS=N.
Use DCD control line for flow control (Y/N) ____________________
BAUD
a
(300; 600; 1,200; 2,400; 4,800; 9,600; 19,200; 38,400) ____________________
DATABIT
a
Number data bits (7, 8) ____________________
STOPBIT
a
Stop bits (1, 2) ____________________
PARI TY
a
(N, O, E, 1, 0) ____________________
RTS_CTS Enable RTS_CTS handshaking (Y/N) ____________________
XON_XOFF Enable XON_XOFF flow control (Y/N) ____________________
TIMEOUT Port timeout (0.0–30.0 minutes) ____________________
ECHO
a
Echo received characters (Y/N) ____________________
AUTOHELP Automatic help messages enabled (Y/N) ____________________
TERTIME1 First delay time (0–600 seconds) ____________________
TERSTRING1 Termination string ____________________
TERTIME2 Second delay time (0–600 seconds) ____________________
SET A
NOCONN Block external connections to this port ____________________
MSG_CNT How many auto-message sequences (0–12) ____________________
ISSUE1–12 Items 1–12 triggers D1–D12 See Worksheet SET A
MESG1–12 Items 1–12 messages See Worksheet SET A
ARCH_EN Enable use of archive data items (Y/N) ____________________
ISSUE1A–3A Item 1A–3A trigger ARCH1–ARCH3 ____________________
MESG1A–3A Item 1A–3A message ____________________
USER Size of user-defined data space in registers ____________________
SET U
See Worksheet SET U
