7
Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Settings Sheets
Master Modbus Port, SET P, and SET A
Date: ________________________________
Approved by: _________________________
SEL-2032 S/N: _______________________

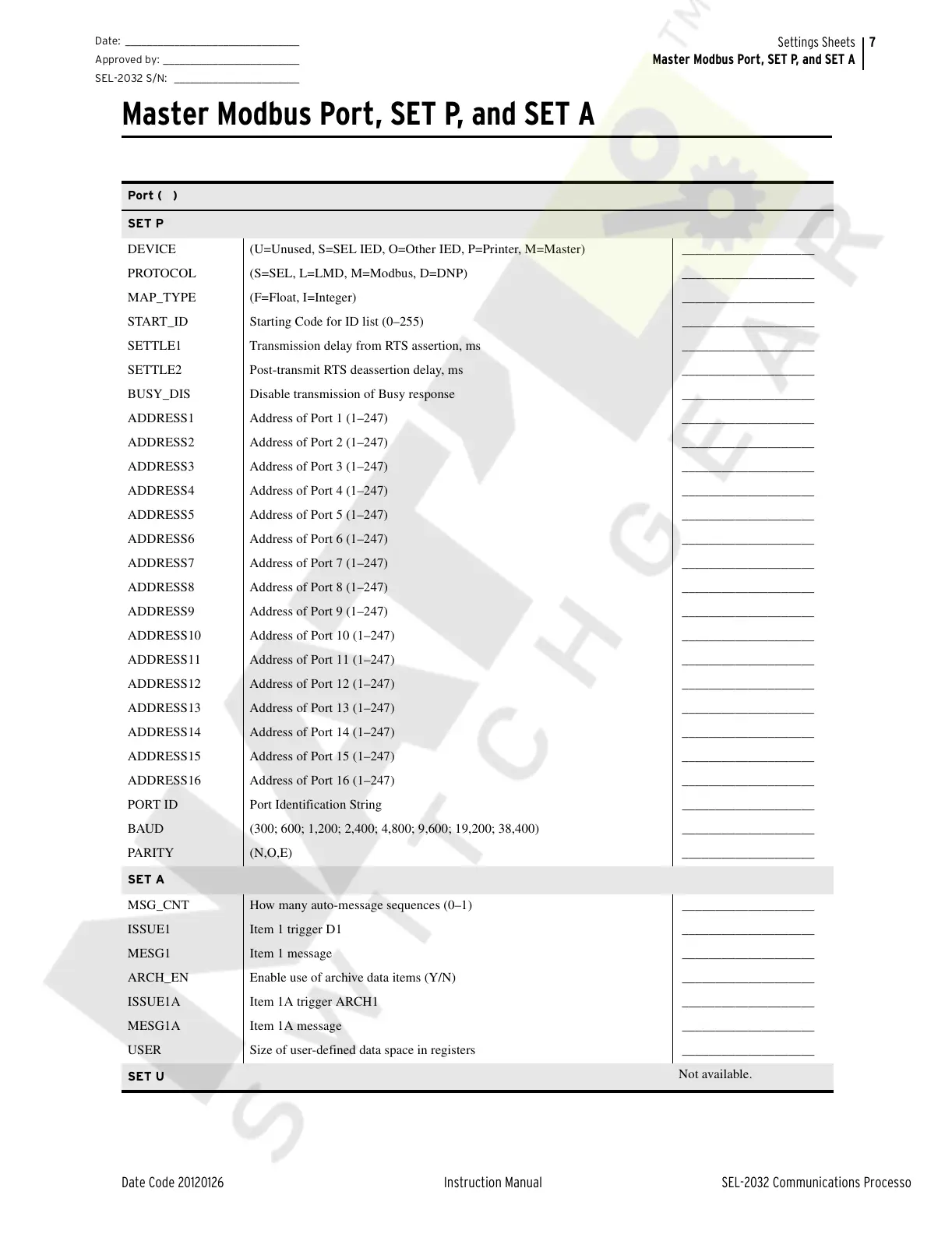

Master Modbus Port, SET P, and SET A
Port ( )
SET P
DEVICE (U=Unused, S=SEL IED, O=Other IED, P=Printer, M=Master) ____________________
PROTOCOL (S=SEL, L=LMD, M=Modbus, D=DNP) ____________________
MAP_TYPE (F=Float, I=Integer) ____________________
START_ID Starting Code for ID list (0–255) ____________________
SETTLE1 Transmission delay from RTS assertion, ms ____________________
SETTLE2 Post-transmit RTS deassertion delay, ms ____________________
BUSY_DIS Disable transmission of Busy response ____________________
ADDRESS1 Address of Port 1 (1–247) ____________________
ADDRESS2 Address of Port 2 (1–247) ____________________
ADDRESS3 Address of Port 3 (1–247) ____________________
ADDRESS4 Address of Port 4 (1–247) ____________________
ADDRESS5 Address of Port 5 (1–247) ____________________
ADDRESS6 Address of Port 6 (1–247) ____________________
ADDRESS7 Address of Port 7 (1–247) ____________________
ADDRESS8 Address of Port 8 (1–247) ____________________
ADDRESS9 Address of Port 9 (1–247) ____________________
ADDRESS10 Address of Port 10 (1–247) ____________________
ADDRESS11 Address of Port 11 (1–247) ____________________
ADDRESS12 Address of Port 12 (1–247) ____________________
ADDRESS13 Address of Port 13 (1–247) ____________________
ADDRESS14 Address of Port 14 (1–247) ____________________
ADDRESS15 Address of Port 15 (1–247) ____________________
ADDRESS16 Address of Port 16 (1–247) ____________________
PORT ID Port Identification String ____________________
BAUD (300; 600; 1,200; 2,400; 4,800; 9,600; 19,200; 38,400) ____________________
PARITY (N,O,E) ____________________
SET A
MSG_CNT How many auto-message sequences (0–1) ____________________
ISSUE1 Item 1 trigger D1 ____________________
MESG1 Item 1 message ____________________
ARCH_EN Enable use of archive data items (Y/N) ____________________
ISSUE1A Item 1A trigger ARCH1 ____________________
MESG1A Item 1A message ____________________
USER Size of user-defined data space in registers ____________________
SET U
Not available.
