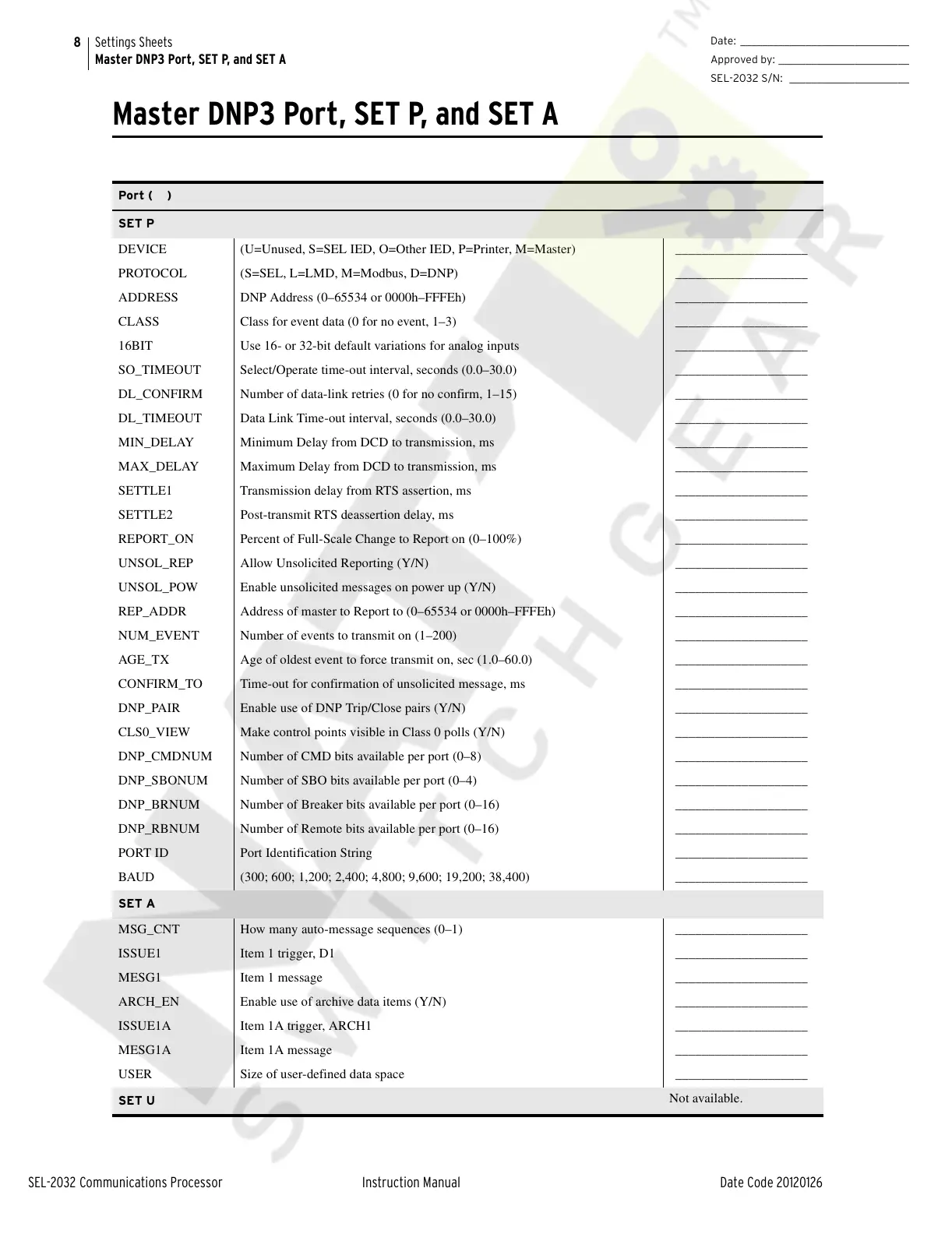

SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Settings Sheets
Master DNP3 Port, SET P, and SET A
Date: ________________________________
Approved by: _________________________
SEL-2032 S/N: _______________________
Master DNP3 Port, SET P, and SET A
Port ( )
SET P
DEVICE (U=Unused, S=SEL IED, O=Other IED, P=Printer, M=Master) ____________________
PROTOCOL (S=SEL, L=LMD, M=Modbus, D=DNP) ____________________
ADDRESS DNP Address (0–65534 or 0000h–FFFEh) ____________________
CLASS Class for event data (0 for no event, 1–3) ____________________
16BIT Use 16- or 32-bit default variations for analog inputs ____________________
SO_TIMEOUT Select/Operate time-out interval, seconds (0.0–30.0) ____________________
DL_CONFIRM Number of data-link retries (0 for no confirm, 1–15) ____________________
DL_TIMEOUT Data Link Time-out interval, seconds (0.0–30.0) ____________________
MIN_DELAY Minimum Delay from DCD to transmission, ms ____________________
MAX_DELAY Maximum Delay from DCD to transmission, ms ____________________
SETTLE1 Transmission delay from RTS assertion, ms ____________________
SETTLE2 Post-transmit RTS deassertion delay, ms ____________________
REPORT_ON Percent of Full-Scale Change to Report on (0–100%) ____________________
UNSOL_REP Allow Unsolicited Reporting (Y/N) ____________________
UNSOL_POW Enable unsolicited messages on power up (Y/N) ____________________
REP_ADDR Address of master to Report to (0–65534 or 0000h–FFFEh) ____________________
NUM_EVENT Number of events to transmit on (1–200) ____________________
AGE_TX Age of oldest event to force transmit on, sec (1.0–60.0) ____________________
CONFIRM_TO Time-out for confirmation of unsolicited message, ms ____________________
DNP_PAIR Enable use of DNP Trip/Close pairs (Y/N) ____________________
CLS0_VIEW Make control points visible in Class 0 polls (Y/N) ____________________
DNP_CMDNUM Number of CMD bits available per port (0–8) ____________________
DNP_SBONUM Number of SBO bits available per port (0–4) ____________________
DNP_BRNUM Number of Breaker bits available per port (0–16) ____________________
DNP_RBNUM Number of Remote bits available per port (0–16) ____________________
PORT ID Port Identification String ____________________
BAUD (300; 600; 1,200; 2,400; 4,800; 9,600; 19,200; 38,400) ____________________
SET A
MSG_CNT How many auto-message sequences (0–1) ____________________
ISSUE1 Item 1 trigger, D1 ____________________
MESG1 Item 1 message ____________________
ARCH_EN Enable use of archive data items (Y/N) ____________________
ISSUE1A Item 1A trigger, ARCH1 ____________________
MESG1A Item 1A message ____________________
USER Size of user-defined data space ____________________
SET U
Not available.
