9

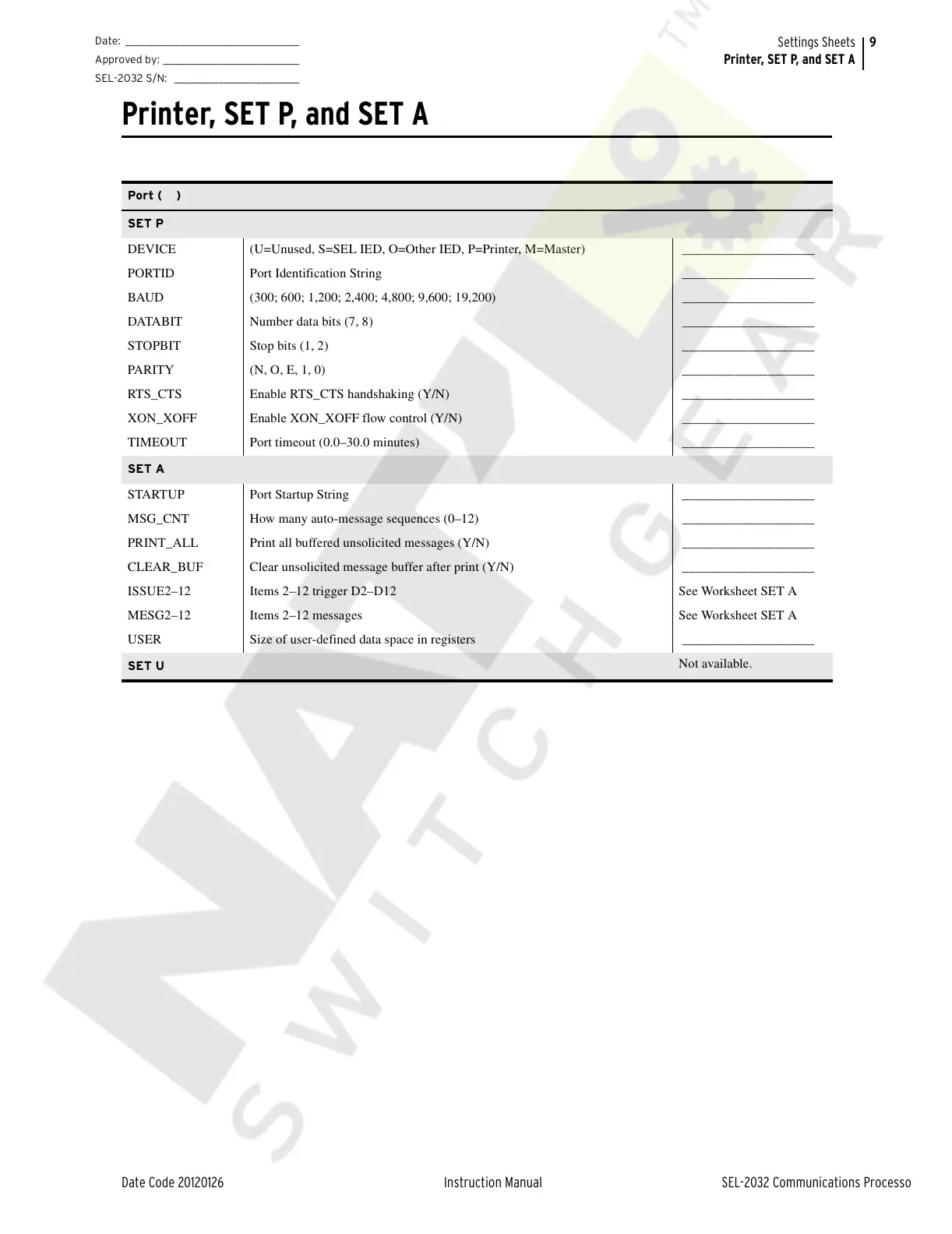

Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Settings Sheets
Printer, SET P, and SET A
Date: ________________________________
Approved by: _________________________
SEL-2032 S/N: _______________________
Printer, SET P, and SET A
Port ( )
SET P
DEVICE (U=Unused, S=SEL IED, O=Other IED, P=Printer, M=Master) ____________________
PORTID Port Identification String ____________________
BAUD (300; 600; 1,200; 2,400; 4,800; 9,600; 19,200) ____________________
DATABIT Number data bits (7, 8) ____________________
STOPBIT Stop bits (1, 2) ____________________
PARITY (N, O, E, 1, 0) ____________________
RTS_CTS Enable RTS_CTS handshaking (Y/N) ____________________
XON_XOFF Enable XON_XOFF flow control (Y/N) ____________________
TIMEOUT Port timeout (0.0–30.0 minutes) ____________________
SET A
STARTUP Port Startup String ____________________
MSG_CNT How many auto-message sequences (0–12) ____________________
PRINT_ALL Print all buffered unsolicited messages (Y/N) ____________________
CLEAR_BUF Clear unsolicited message buffer after print (Y/N) ____________________
ISSUE2–12 Items 2–12 trigger D2–D12 See Worksheet SET A
MESG2–12 Items 2–12 messages See Worksheet SET A
USER Size of user-defined data space in registers ____________________
SET U
Not available.
