11

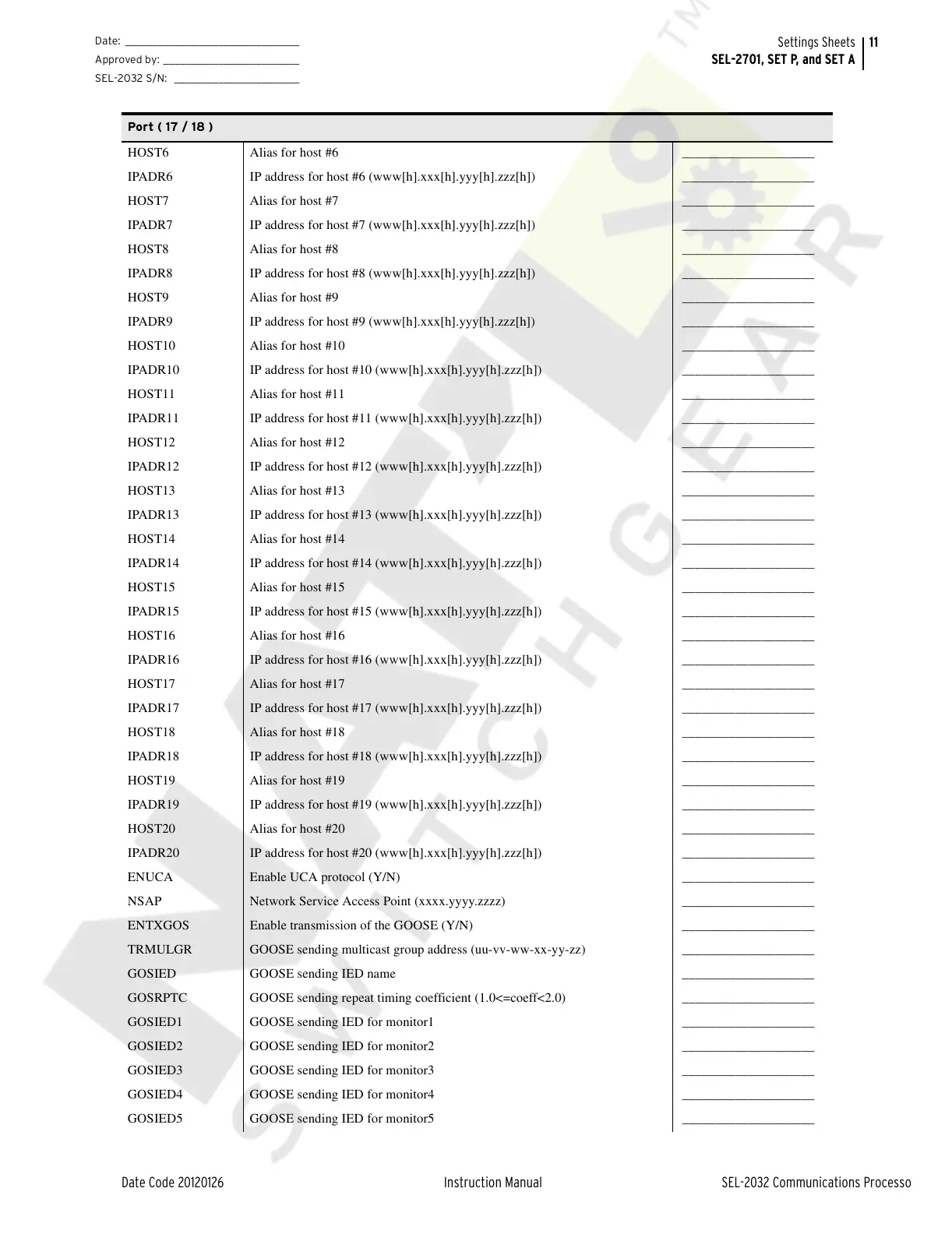

Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Settings Sheets
SEL-2701, SET P, and SET A
Date: ________________________________
Approved by: _________________________
SEL-2032 S/N: _______________________
HOST6 Alias for host #6 ____________________
IPADR6 IP address for host #6 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST7 Alias for host #7 ____________________
IPADR7 IP address for host #7 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST8 Alias for host #8 ____________________
IPADR8 IP address for host #8 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST9 Alias for host #9 ____________________
IPADR9 IP address for host #9 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST10 Alias for host #10 ____________________
IPADR10 IP address for host #10 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST11 Alias for host #11 ____________________
IPADR11 IP address for host #11 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST12 Alias for host #12 ____________________
IPADR12 IP address for host #12 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST13 Alias for host #13 ____________________
IPADR13 IP address for host #13 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST14 Alias for host #14 ____________________
IPADR14 IP address for host #14 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST15 Alias for host #15 ____________________
IPADR15 IP address for host #15 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST16 Alias for host #16 ____________________
IPADR16 IP address for host #16 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST17 Alias for host #17 ____________________
IPADR17 IP address for host #17 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST18 Alias for host #18 ____________________
IPADR18 IP address for host #18 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST19 Alias for host #19 ____________________
IPADR19 IP address for host #19 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
HOST20 Alias for host #20 ____________________
IPADR20 IP address for host #20 (www[h].xxx[h].yyy[h].zzz[h]) ____________________
ENUCA Enable UCA protocol (Y/N) ____________________
NSAP Network Service Access Point (xxxx.yyyy.zzzz) ____________________
ENTXGOS Enable transmission of the GOOSE (Y/N) ____________________
TRMULGR GOOSE sending multicast group address (uu-vv-ww-xx-yy-zz) ____________________
GOSIED GOOSE sending IED name ____________________
GOSRPTC GOOSE sending repeat timing coefficient (1.0<=coeff<2.0) ____________________
GOSIED1 GOOSE sending IED for monitor1 ____________________
GOSIED2 GOOSE sending IED for monitor2 ____________________
GOSIED3 GOOSE sending IED for monitor3 ____________________
GOSIED4 GOOSE sending IED for monitor4 ____________________
GOSIED5 GOOSE sending IED for monitor5 ____________________
Port ( 17 / 18 )
