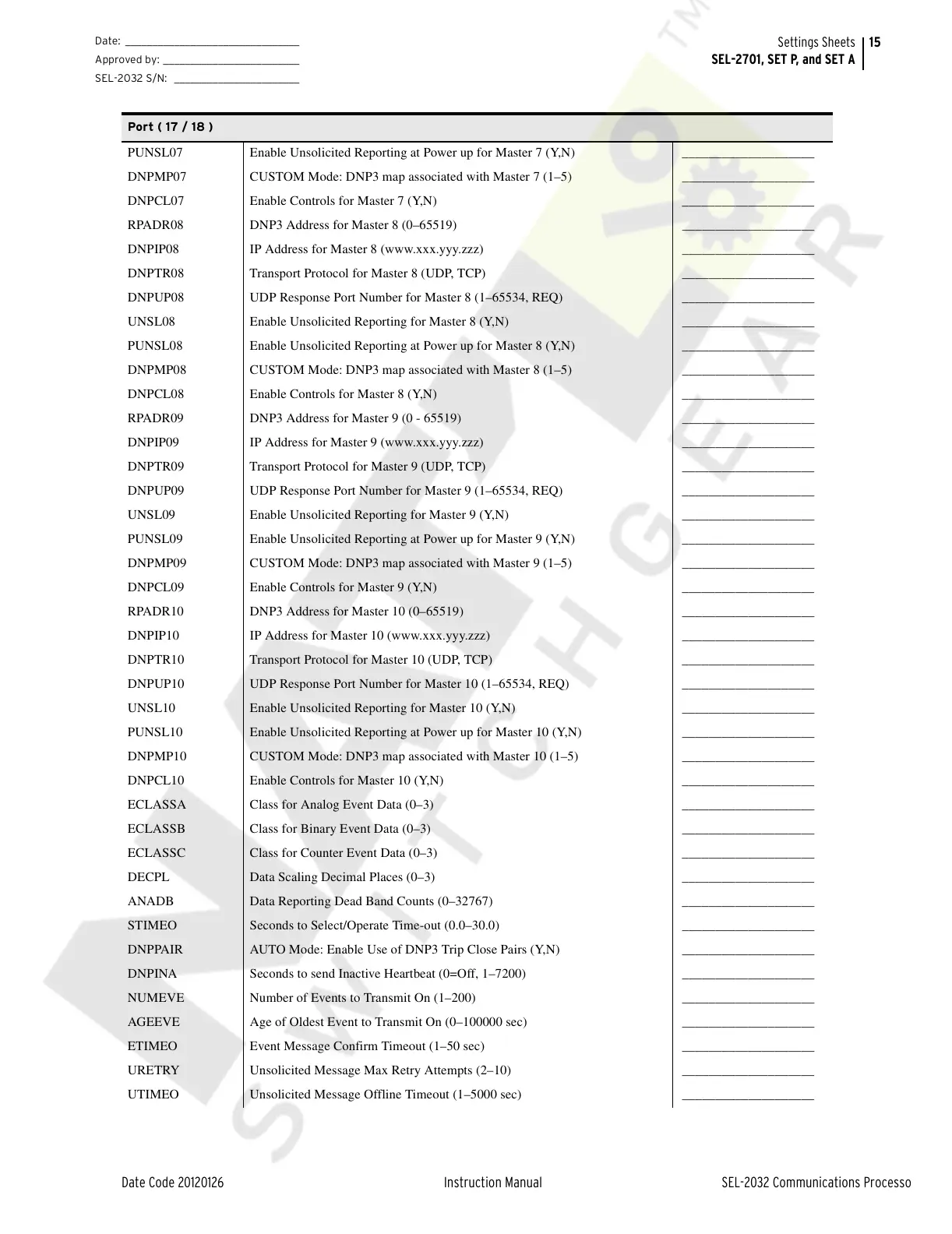

15
Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Settings Sheets
SEL-2701, SET P, and SET A
Date: ________________________________
Approved by: _________________________
SEL-2032 S/N: _______________________
PUNSL07 Enable Unsolicited Reporting at Power up for Master 7 (Y,N) ____________________
DNPMP07 CUSTOM Mode: DNP3 map associated with Master 7 (1–5) ____________________
DNPCL07 Enable Controls for Master 7 (Y,N) ____________________
RPADR08 DNP3 Address for Master 8 (0–65519) ____________________
DNPIP08 IP Address for Master 8 (www.xxx.yyy.zzz) ____________________
DNPTR08 Transport Protocol for Master 8 (UDP, TCP) ____________________
DNPUP08 UDP Response Port Number for Master 8 (1–65534, REQ) ____________________
UNSL08 Enable Unsolicited Reporting for Master 8 (Y,N) ____________________
PUNSL08 Enable Unsolicited Reporting at Power up for Master 8 (Y,N) ____________________
DNPMP08 CUSTOM Mode: DNP3 map associated with Master 8 (1–5) ____________________
DNPCL08 Enable Controls for Master 8 (Y,N) ____________________
RPADR09 DNP3 Address for Master 9 (0 - 65519) ____________________
DNPIP09 IP Address for Master 9 (www.xxx.yyy.zzz) ____________________
DNPTR09 Transport Protocol for Master 9 (UDP, TCP) ____________________
DNPUP09 UDP Response Port Number for Master 9 (1–65534, REQ) ____________________
UNSL09 Enable Unsolicited Reporting for Master 9 (Y,N) ____________________
PUNSL09 Enable Unsolicited Reporting at Power up for Master 9 (Y,N) ____________________
DNPMP09 CUSTOM Mode: DNP3 map associated with Master 9 (1–5) ____________________
DNPCL09 Enable Controls for Master 9 (Y,N) ____________________
RPADR10 DNP3 Address for Master 10 (0–65519) ____________________
DNPIP10 IP Address for Master 10 (www.xxx.yyy.zzz) ____________________
DNPTR10 Transport Protocol for Master 10 (UDP, TCP) ____________________
DNPUP10 UDP Response Port Number for Master 10 (1–65534, REQ) ____________________
UNSL10 Enable Unsolicited Reporting for Master 10 (Y,N) ____________________
PUNSL10 Enable Unsolicited Reporting at Power up for Master 10 (Y,N) ____________________
DNPMP10 CUSTOM Mode: DNP3 map associated with Master 10 (1–5) ____________________
DNPCL10 Enable Controls for Master 10 (Y,N) ____________________
ECLASSA Class for Analog Event Data (0–3) ____________________
ECLASSB Class for Binary Event Data (0–3) ____________________
ECLASSC Class for Counter Event Data (0–3) ____________________
DECPL Data Scaling Decimal Places (0–3) ____________________
ANADB Data Reporting Dead Band Counts (0–32767) ____________________
STIMEO Seconds to Select/Operate Time-out (0.0–30.0) ____________________
DNPPAIR AUTO Mode: Enable Use of DNP3 Trip Close Pairs (Y,N) ____________________
DNPINA Seconds to send Inactive Heartbeat (0=Off, 1–7200) ____________________
NUMEVE Number of Events to Transmit On (1–200) ____________________
AGEEVE Age of Oldest Event to Transmit On (0–100000 sec) ____________________
ETIMEO Event Message Confirm Timeout (1–50 sec) ____________________
URETRY Unsolicited Message Max Retry Attempts (2–10) ____________________
UTIMEO Unsolicited Message Offline Timeout (1–5000 sec) ____________________
Port ( 17 / 18 )
