9.22
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Protocols
Modbus RTU Protocol
107(R) Meter Date stamp Day of the week
(Sunday–0
•
•
•
Saturday–6)
0–6
108(R) Phase Current IA A, primary 0–32767 A, pri
109(R) Phase Current IB A, primary 0–32767 A, pri
110(R) Phase Current IC A, primary 0–32767 A, pri
111(R) Difference Voltage VAB kV/10, primary 0.0–3276.7 kV, pri
112(R) Difference Voltage VBC kV/10, primary 0.0–3276.7 kV, pri
113(R) Difference Voltage VCA kV/10, primary 0.0–3276.7 kV, pri
114(R) Real Power P MW/10, primary ±3276.7 MW, pri
115(R) Reactive Power Q MVAR/10, primary ±3276.7 MVAR, pri
II. Data from Relays with Binary Fast Meter Format
SEL-351; SEL-351R Binary Fast Meter Format:
100(R) Meter Date stamp Month 1–12
101(R) Meter Date stamp Day of the Month 1–31
102(R) Meter Date stamp Year 0–99
103(R) Meter Time stamp Hours 0–23
104(R) Meter Time stamp Minutes 0–59
105(R) Meter Time stamp Seconds 0–59
106(R) Meter Time stamp Milliseconds 0–999
107(R) Meter Date stamp Day of the week
(Sunday–0
•
•
•
Saturday–6)
0–6
108(R) Phase Current Magnitude IA Amps, primary 0–32767 A, pri
109(R) Phase Current Angle Degrees/10 180.0
110(R) Phase Current Magnitude IB Amps, primary 0–32767 A, pri
111(R) Phase Current Angle Degrees/10 180.0
112(R) Phase Current Magnitude IC Amps, primary 0–32767 A, pri
113(R) Phase Current Angle Degrees/10 180.0
114(R) Neutral Current Magnitude IN A, primary 0–32767 A, pri
115(R) Neutral Current Angle Degrees/10 180.0
116(R) Phase Voltage Magnitude VA kV/10, primary 0–3276.7 kV, pri
117(R) Phase Voltage Angle Degrees/10 180.0
118(R) Phase Voltage Magnitude VB kV/10, primary 0–3276.7 kV, pri
119(R) Phase Voltage Angle Degrees/10 180.0
120(R) Phase Voltage Magnitude VC kV/10, primary 0–3276.7 kV, pri
121(R) Phase Voltage Angle Degrees/10 180.0

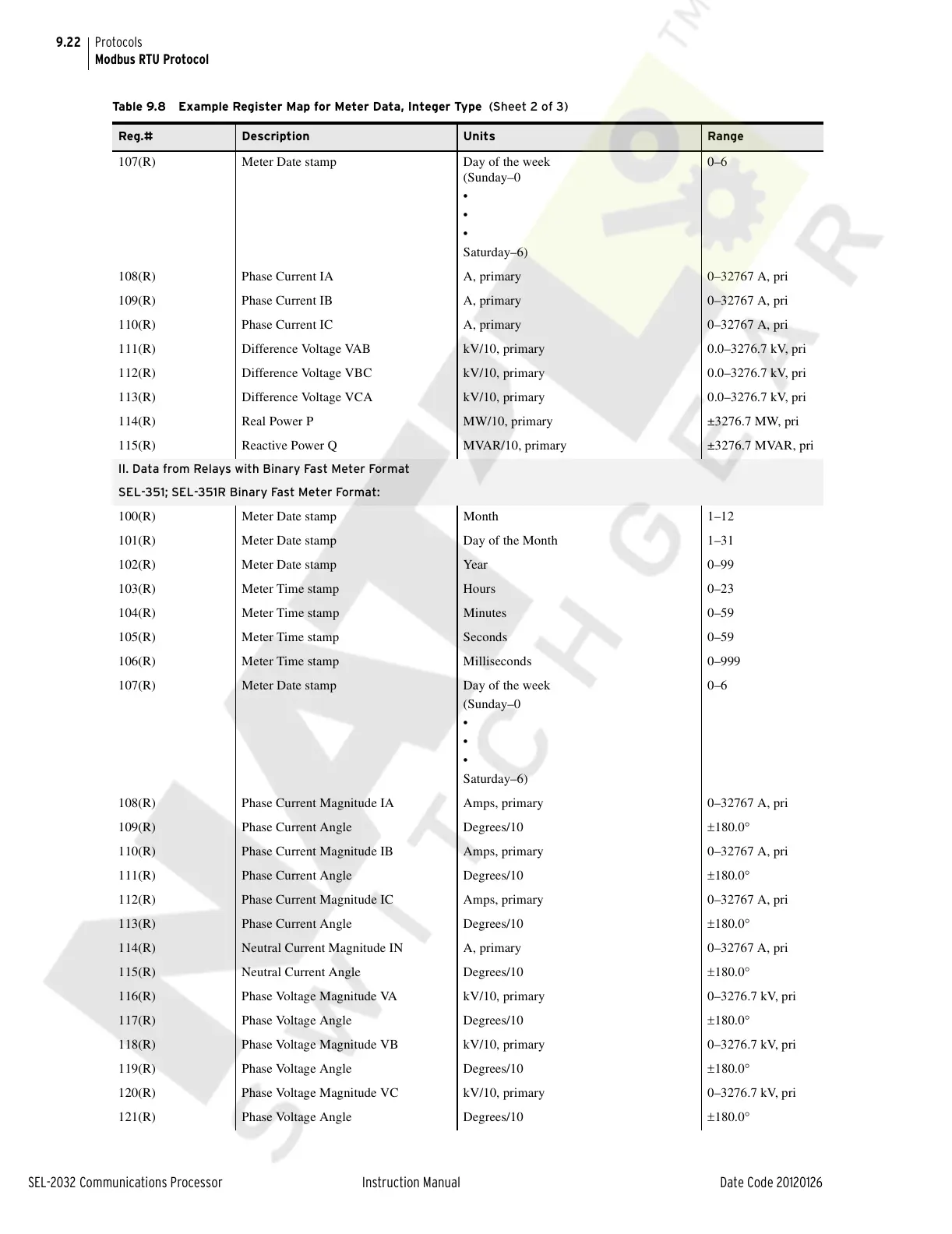

Table 9.8 Example Register Map for Meter Data, Integer Type (Sheet 2 of 3)
Reg.# Description Units Range
