122(R) Synchronizing Voltage Magnitude VS kV/10, primary 0–3276.7 kV, pri
123(R) Synchronizing Voltage Angle Degrees/10 180.0
124(R) Frequency Magnitude Hertz/10 0–3276.7 Hz
125(R) Frequency Angle Degrees 180.0 (0.0)
126(R) Battery Voltage Magnitude VBAT kV/10, primary 0–3276.7 kV, pri
127(R) Battery Voltage Angle Degrees/10 180.0 (0.0)
128(R) Line Current Magnitude IAB Amps, primary 0–32767 A, pri
129(R) Line Current Angle Degrees/10 180.0
130(R) Line Current Magnitude IBC Amps, primary 0–32767 A, pri
131(R) Line Current Angle Degrees/10 180.0
132(R) Line Current Magnitude ICA Amps, primary 0–32767 A, pri
133(R) Line Current Angle Degrees/10 180.0
134(R) Line Voltage Magnitude VAB kV/10, primary 0–3276.7 kV, pri
135(R) Line Voltage Angle Degrees/10 180.0
136(R) Line Voltage Magnitude VBC kV/10, primary 0–3276.7 kV, pri
137(R) Line Voltage Angle Degrees/10 180.0
138(R) Line Voltage Magnitude VCA kV/10, primary 0–3276.7 kV, pri
139(R) Line Voltage Angle Degrees/10 180.0
140(R) Phase Real Power PA MW/10, primary 3276.7 MW
141(R) Phase Reactive Power QA MVAR/10, primary 3276.7 MVAR
142(R) Phase Real Power PB MW/10, primary 3276.7 MW
143(R) Phase Reactive Power QB MVAR/10, primary 3276.7 MVAR
144(R) Phase Real Power PC MW/10, primary 3276.7 MW
145(R) Phase Reactive Power QC MVAR/10, primary 3276.7 MVAR
146(R) Three Phase Real Power PMW MW/10, primary 3276.7 MW
147(R) Three Phase Reactive Power QMVAR MVAR/10, primary 3276.7 MVAR
148(R) Zero-Sequence Current Magnitude I0 A, primary 0–32767 A, pri
149(R) Zero-Sequence Current Angle Degrees/10 180.0
150(R) Positive-Sequence
Current Magnitude I1
A, primary 0–32767 A, pri
151(R) Positive-Sequence Current Angle Degrees/10 180.0
152(R) Negative-Sequence
Current Magnitude I2
A, primary 0–32767 A, pri
153(R) Negative-Sequence Current Angle Degrees/10 180.0
154(R) Zero-Sequence Voltage Magnitude V0 kV/10, primary 0–3276.7 kV, pri
155(R) Zero-Sequence Voltage Angle Degrees/10 180.0
156(R) Positive-Sequence
Voltage Magnitude V1
kV/10, primary 0–3276.7 kV, pri
157(R) Positive-Sequence Voltage Angle Degrees/10 180.0
158(R) Negative-Sequence
Voltage Magnitude V2
kV/10, primary 0–3276.7 kV, pri
159(R) Negative-Sequence Voltage Angle Degrees/10 180.0


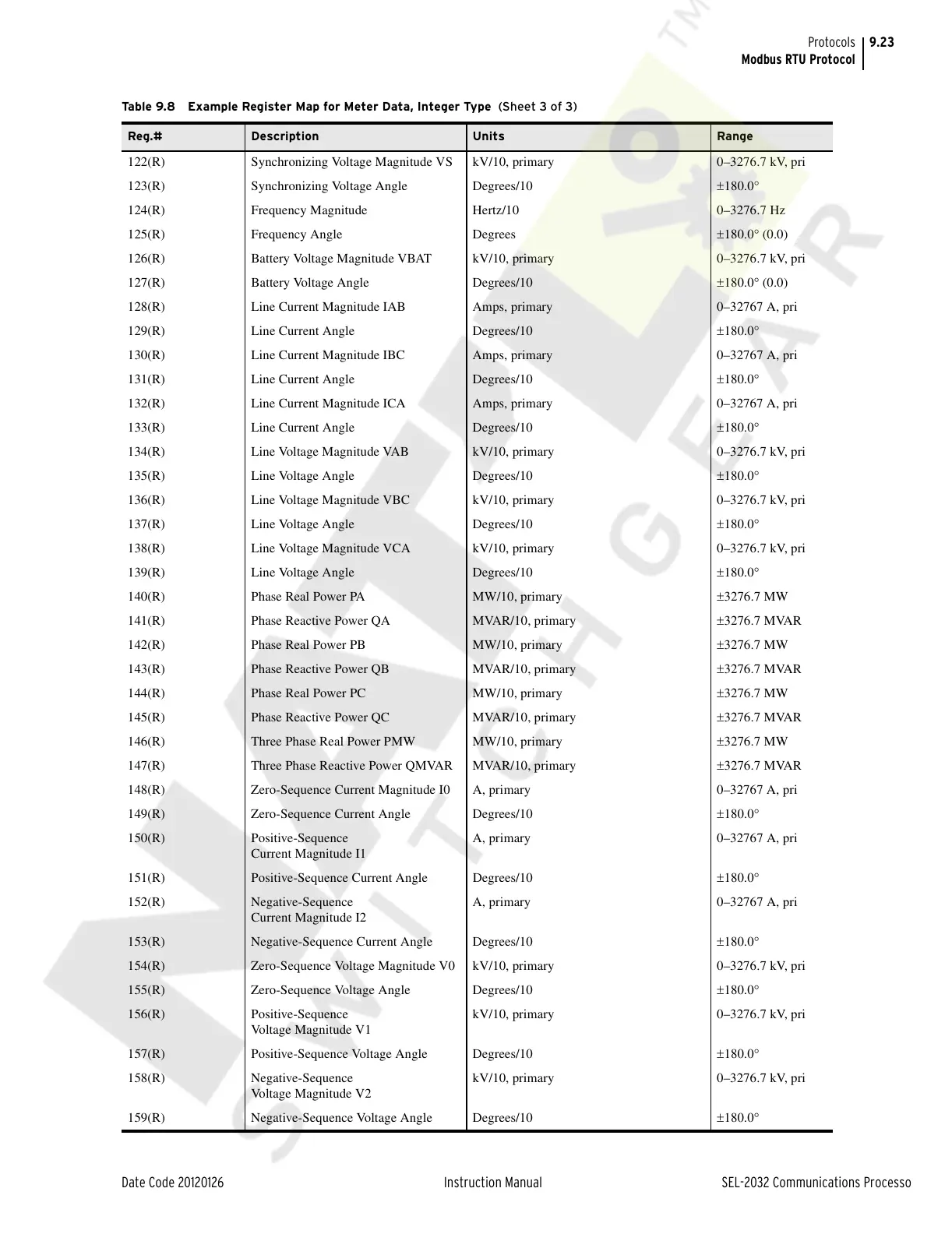

Table 9.8 Example Register Map for Meter Data, Integer Type (Sheet 3 of 3)
Reg.# Description Units Range
