9.31
Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Protocols
Serial Distributed Network Protocol (Serial DNP3)
10 0 Binary
Output–All Variations
1 0, 1, 6, 7, 8
10 1 Binary Output
10 2
e
Binary Output Status 1 0, 1, 6, 7, 8 129 0, 1
12 0 Control
Block–All Variations
12 1 Control Relay
Output Block
3, 4, 5, 6 17, 28 129 echo of
request
12 2 Pattern Control Block
12 3 Pattern Mask
20 0 Binary
Counter–All Variations
1 0, 1, 6, 7, 8
20 1 32-Bit Binary Counter
20 2 16-Bit Binary Counter
20 3 32-Bit Delta Counter
20 4 16-Bit Delta Counter
20 5 32-Bit Binary Counter
Without Flag
1 0, 1, 6, 7, 8 129 0, 1, 7, 8
20 6
e
16-Bit Binary
Counter Without Flag
1 0, 1, 6, 7, 8 129 0, 1, 7, 8
20 7 32-Bit Delta
Counter Without Flag
20 8 16-Bit Delta
Counter Without Flag
21 0 Frozen
Counter–All Variations
21 1 32-Bit Frozen Counter
21 2 16-Bit Frozen Counter
21 3 32-Bit
Frozen Delta Counter
21 4 16-Bit
Frozen Delta Counter
21 5 32-Bit Frozen Counter
With Time of Freeze
21 6 16-Bit Frozen Counter
With Time of Freeze
21 7 32-Bit
Frozen Delta Counter
With Time of Freeze
21 8 16-Bit
Frozen Delta Counter
With Time of Freeze
21 9 32-Bit Frozen
Counter Without Flag
21 10 16-Bit Frozen
Counter Without Flag

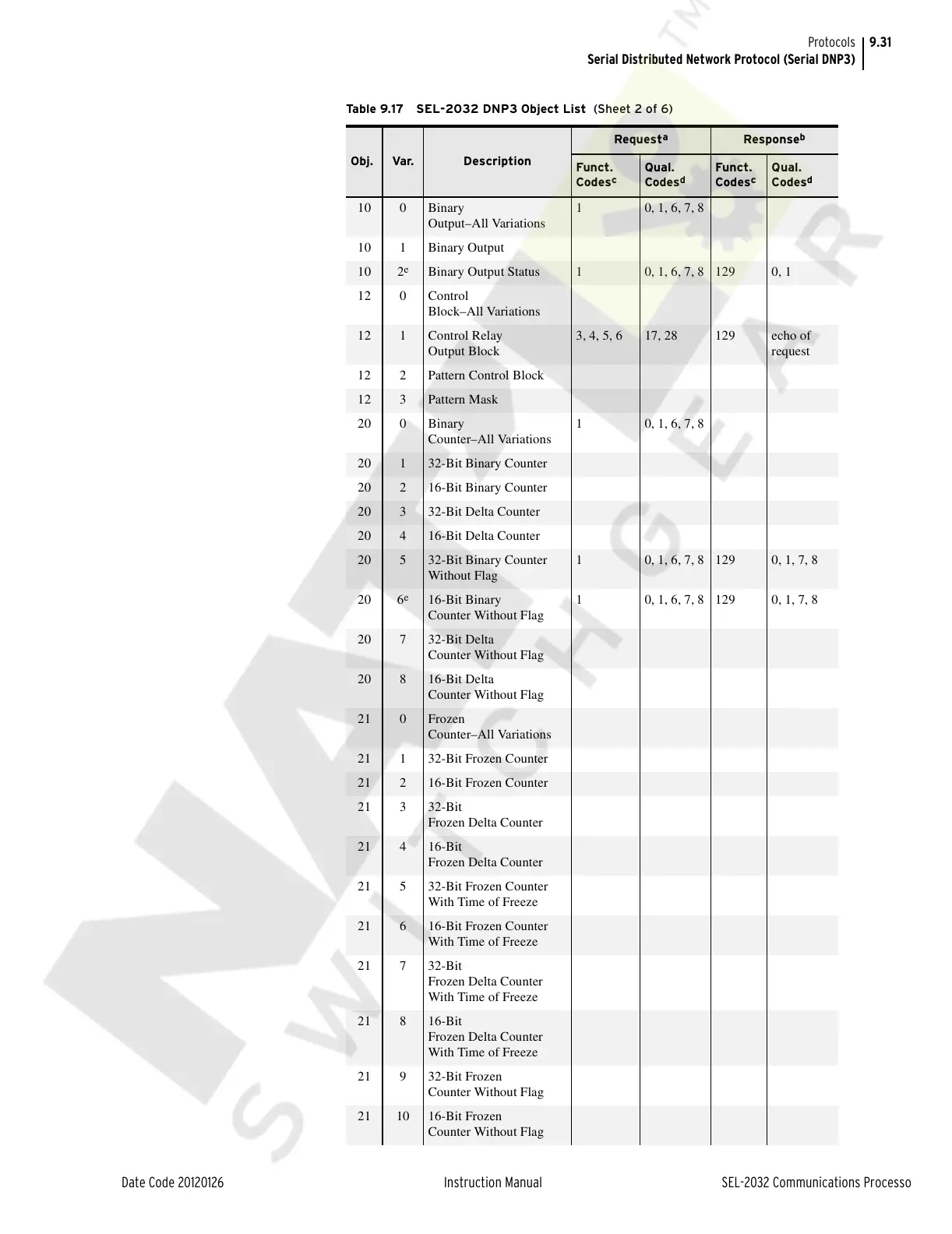

Tab l e 9. 17 S EL - 20 3 2 DNP3 Object List (Sheet 2 of 6)
Obj. Var. Description
Request
a
Response
b
Funct.
Codes
c
Qual.
Codes
d
Funct.
Codes
c
Qual.
Codes
d
