9.32
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Protocols
Serial Distributed Network Protocol (Serial DNP3)
21 11 32-Bit Frozen Delta
Counter Without Flag
21 12 16-Bit Frozen Delta
Counter Without Flag
22 0 Counter Change
Event–All Variations
16, 7, 8
22 1 32-Bit Counter Change
Event Without Time
1 6, 7, 8 129 17, 28
22 2
e
16-Bit Counter Change
Event Without Time
1 6, 7, 8 129, 130 17, 28
22 3 32-Bit Delta
Counter Change
Event Without Time
22 4 16-Bit Delta
Counter Change
Event Without Time
22 5 32-Bit Counter
Change Event With Time
1 6, 7, 8 129 17, 28
22 6 16-Bit Counter
Change Event With Time
1 6, 7, 8 129 17, 28
22 7 32-Bit Delta Counter
Change Event With Time
22 8 16-Bit Delta Counter
Change Event With Time
23 0 Frozen Counter
Event–All Variations
23 1 32-Bit Frozen Counter
Event Without Time
23 2 16-Bit Frozen Counter
Event Without Time
23 3 32-Bit Frozen
Delta Counter
Event Without Time
23 4 16-Bit Frozen
Delta Counter
Event Without Time
23 5 32-Bit Frozen
Counter Event With Time
23 6 16-Bit Frozen
Counter Event With Time
23 7 32-Bit Frozen Delta
Counter Event With Time
23 8 16-Bit Frozen Delta
Counter Event With Time
30 0 Analog
Input–All Variations
1 0, 1, 6, 7, 8
30 1 32-Bit Analog Input 1 0, 1, 6, 7, 8 129 0, 1, 7, 8
30 2 16-Bit Analog Input 1 0, 1, 6, 7, 8 129 0, 1, 7, 8

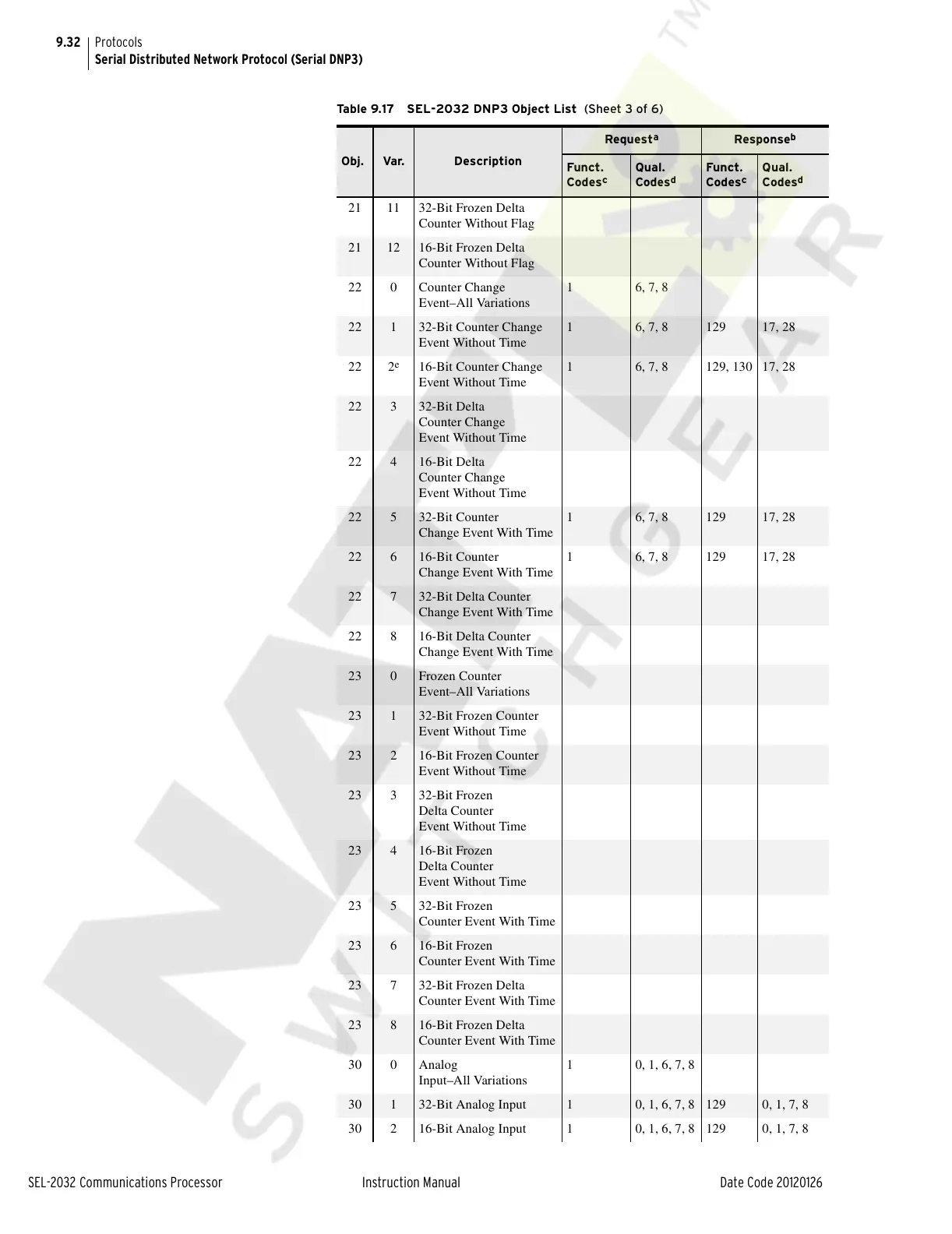

Tab l e 9. 17 S EL - 20 3 2 DNP3 Object List (Sheet 3 of 6)
Obj. Var. Description
Request
a
Response
b
Funct.
Codes
c
Qual.
Codes
d
Funct.
Codes
c
Qual.
Codes
d
