Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Protocols
Serial Distributed Network Protocol (Serial DNP3)
30 3 32-Bit Analog
Input Without Flag
1 0, 1, 6, 7, 8 129 0, 1, 7, 8
30 4
e
16-Bit Analog
Input Without Flag
1 0, 1, 6, 7, 8 129 0, 1, 7, 8
31 0 Frozen Analog
Input–All Variations
31 1 32-Bit
Frozen Analog Input
31 2 16-Bit
Frozen Analog Input
31 3 32-Bit
Frozen Analog Input
With Time of Freeze
31 4 16-Bit
Frozen Analog Input
With Time of Freeze
31 5 32-Bit Frozen Analog
Input Without Flag
31 6 16-Bit Frozen Analog
Input Without Flag
32 0 Analog Change
Event–All Variations
16, 7, 8
32 1 32-Bit Analog Change
Event Without Time
1 6, 7, 8 129 17, 28
32 2
e
16-Bit Analog Change
Event Without Time
1 6, 7, 8 129, 130 17, 28
32 3 32-Bit Analog
Change Event With Time
1 6, 7, 8 129 17, 28
32 4 16-Bit Analog
Change Event With Time
1 6, 7, 8 129 17, 28
33 0 Frozen Analog
Event–All Variations
33 1 32-Bit Frozen Analog
Event Without Time
33 2 16-Bit Frozen Analog
Event Without Time
33 3 32-Bit Frozen
Analog Event With Time
33 4 16-Bit Frozen
Analog Event With Time
40 0 Analog Output
Status–All Variations
1 0, 1, 6, 7, 8
40 1 32-Bit
Analog Output Status
1 0, 1, 6, 7, 8 129 0, 1, 7, 8
40 2
e
16-Bit
Analog Output Status
1 0, 1, 6, 7, 8 129 0, 1, 7, 8
41 0 Analog Output
Block–All Variations

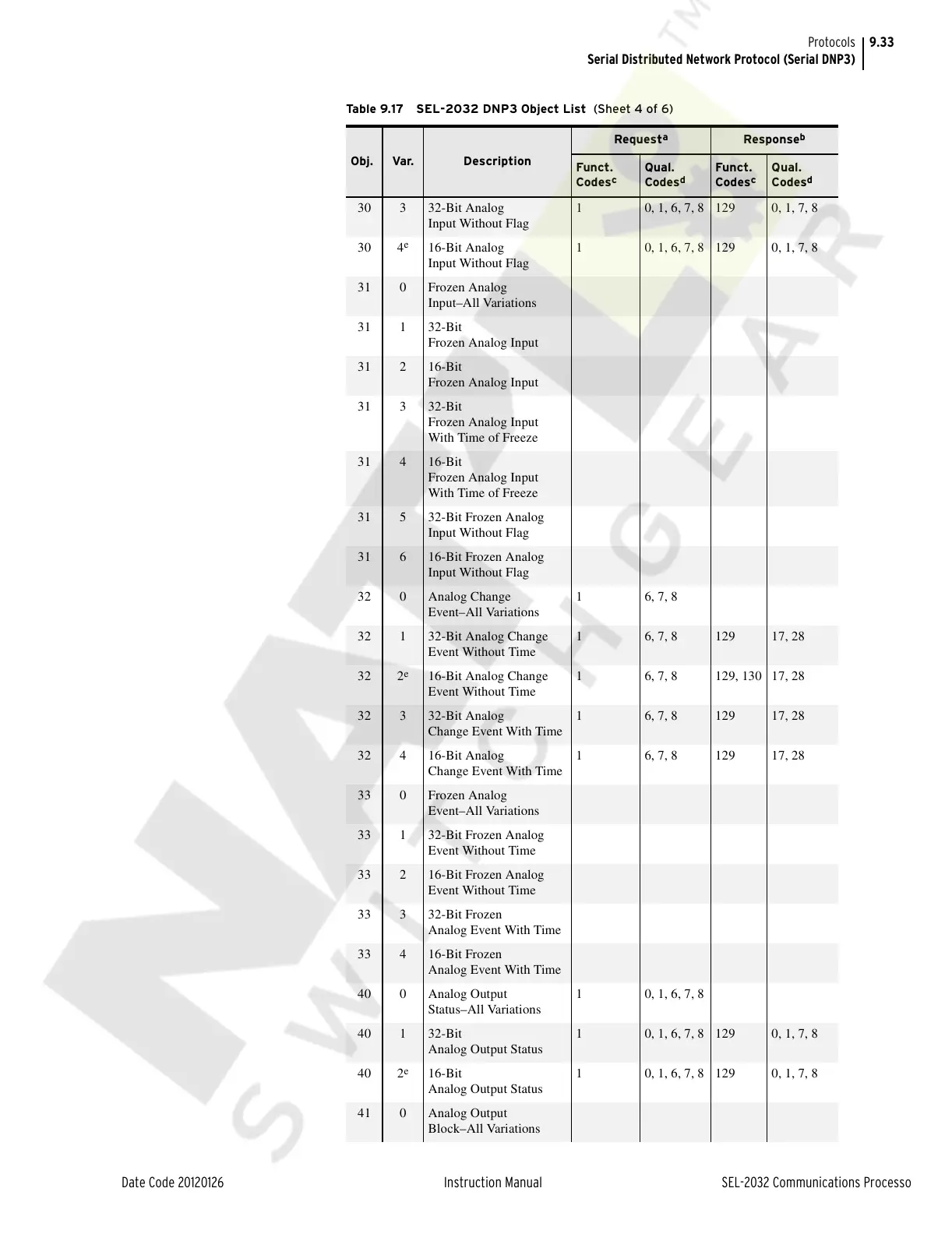

Tab l e 9. 17 S EL - 20 3 2 DNP3 Object List (Sheet 4 of 6)
Obj. Var. Description
Request
a
Response
b
Funct.
Codes
c
Qual.
Codes
d
Funct.
Codes
c
Qual.
Codes
d
