SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Protocols
Serial Distributed Network Protocol (Serial DNP3)
41 1 32-Bit
Analog Output Block
3, 4, 5, 6 17, 28 129 echo of
request
41 2 16-Bit
Analog Output Block
3, 4, 5, 6 17, 28 129 echo of
request
50 0 Time and
Date–All Variations
50 1 Time and Date 1, 2 7, 8
index=0
129 07,
quantity=1
50 2 Time and
Date With Interval
51 0 Time and Date
CTO–All Variations
51 1 Time and Date CTO
51 2 Unsynchronized
Time and Date CTO
07,
quantity=1
52 0 Time
Delay–All Variations
52 1 Time Delay, Coarse
52 2 Time Delay, Fine 129 07,
quantity=1
60 0 All Classes of Data 1, 20, 21 6
60 1 Class 0 Data 1 6
60 2 Class 1 Data 1, 20, 21 6, 7, 8
60 3 Class 2 Data 1, 20, 21 6, 7, 8
60 4 Class 3 Data 1, 20, 21 6, 7, 8
70 1 File Identifier
80 1 Internal Indications 2 0, 1
index=7
81 1 Storage Object
82 1 Device Profile
83 1 Private
Registration Object
83 2 Private Registration
Object Descriptor
90 1 Application Identifier
100 1 Short Floating Point
100 2 Long Floating Point
100 3 Extended Floating Point
101 1 Small Packed
Binary–Coded Decimal
101 2 Medium Packed
Binary–Coded Decimal

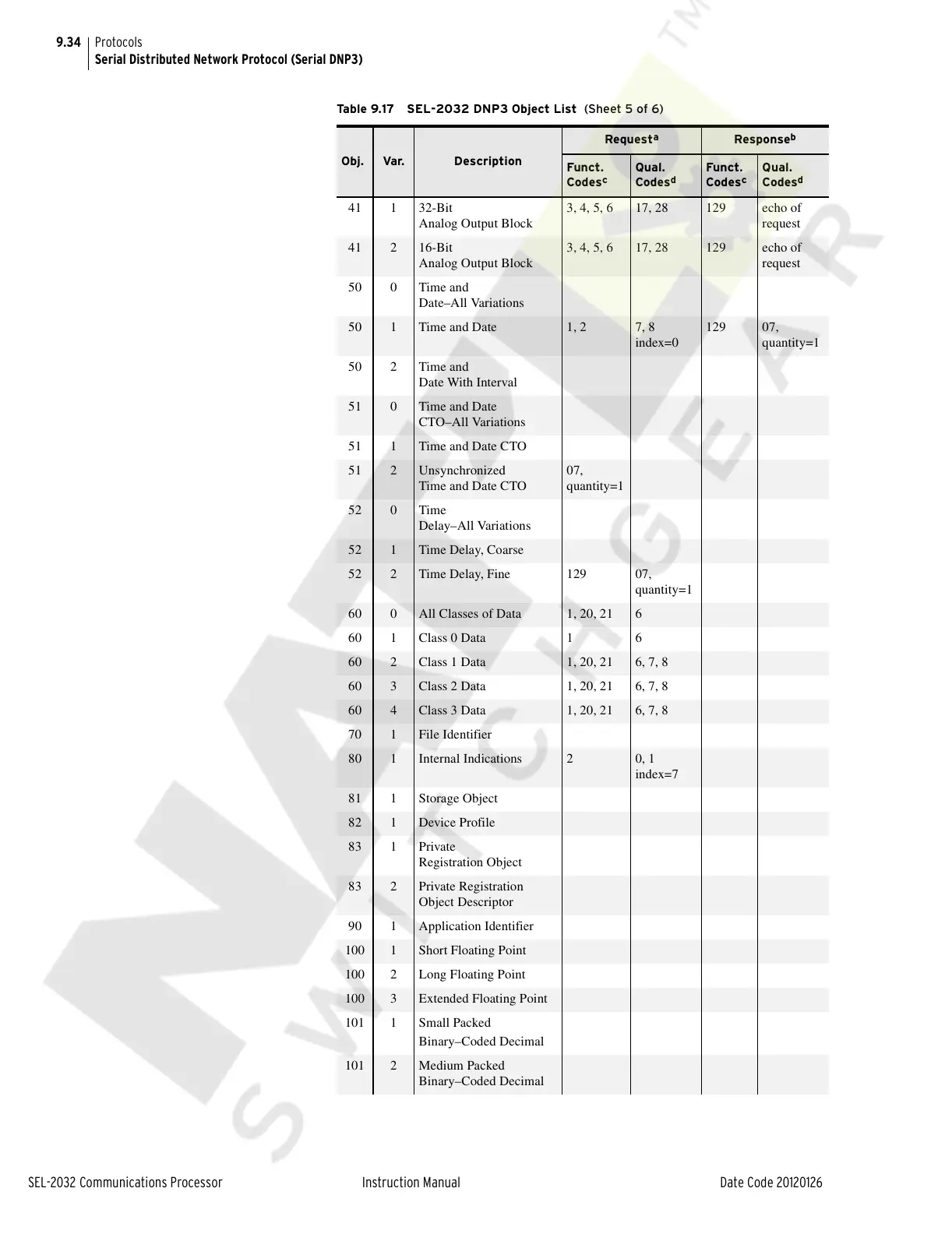

Tab l e 9. 17 S EL - 20 3 2 DNP3 Object List (Sheet 5 of 6)
Obj. Var. Description
Request
a
Response
b
Funct.
Codes
c
Qual.
Codes
d
Funct.
Codes
c
Qual.
Codes
d
