9.52
SEL-2032 Communications Processor Instruction Manual Date Code 20120126
Protocols
Distributed Network Protocol 3.0 (DNP3) LAN/WAN
34 0 Analog Input Reporting
Dead-Band Setting—
All Variations
1 1, 6, 7, 8,
17, 28
129 1, 17, 28
34 0 Analog Input Reporting
Dead-Band Setting—
All Variations
2 0, 1, 6, 7,
8, 17, 28
129 0, 1, 17, 28
34 1
e
16-Bit Analog Input
Reporting
Dead-Band Setting
1 1, 6, 7, 8,
17, 28
129 1, 17, 28
34 1
e
16-Bit Analog Input
Reporting
Dead-Band Setting
2 0, 1, 6, 7,
8, 17, 28
129 0, 1, 17, 28
34 2 32-Bit Analog Input
Reporting
Dead-Band Setting
1 1, 6, 7, 8,
17, 28
129 1, 17, 28
34 2 32-Bit Analog Input
Reporting
Dead-Band Setting
2 0, 1, 6, 7,
8, 17, 28
129 0, 1, 17, 28
34 3 Floating Point Analog
Input Reporting
Dead-Band Setting
1 1, 6, 7, 8,
17, 28
129 1, 17, 28
34 3 Floating Point Analog
Input Reporting
Dead-Band Setting
2 0, 1, 6, 7,
8, 17, 28
129 0, 1, 17, 28
40 0 Analog Output Status—
All Variations
1 0, 1, 6, 7, 8 139
40 1 32-Bit Analog Output
Status
1 0, 1, 6, 7, 8 129 0, 1,
17, 28
40 2
e
16-Bit Analog Output
Status
1 0, 1, 6, 7, 8 129 0, 1,
17, 28
41 0 Analog Output Block—
All Variations
41 1 32-Bit Analog Output
Block
3, 4, 5, 6 17, 28 129 echo of
request
41 2 16-Bit Analog Output
Block
3, 4, 5, 6 17, 28 129 echo of
request
50 0 Time and Date—All
Varia ti ons
50 1 Time and Date 129 07,
quantity=1
50 2 Time and Date With
Interval
50 3 Time and Date at
Last Recorded Time
1 7, 8
index=0
129 07,
quantity=1
51 0 Time and Date CTO—All
Varia ti ons
51 1 Time and Date CTO
51 2 Unsynchronized Time
and Date CTO
07,
quantity=1

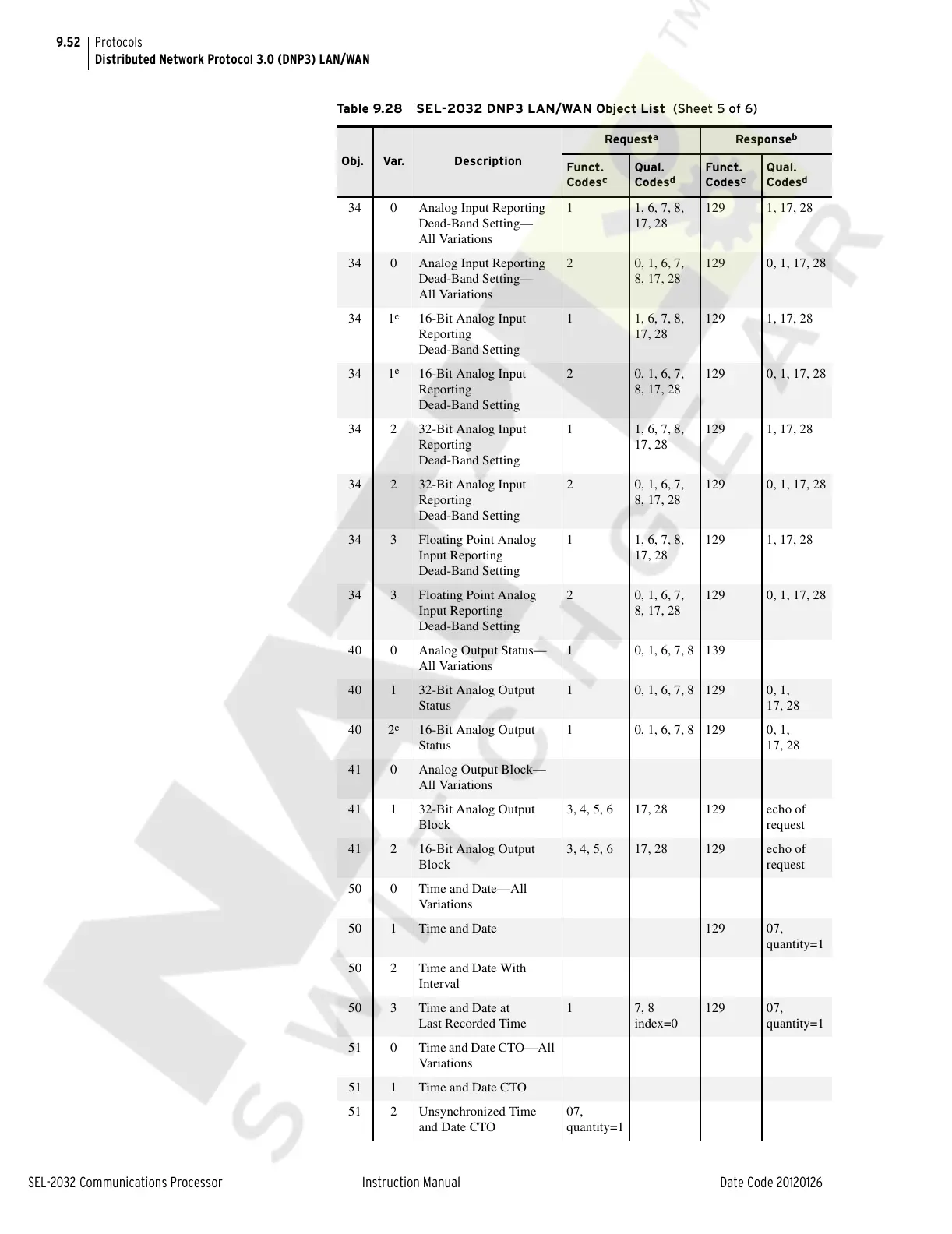

Ta b le 9.2 8 S EL - 203 2
DNP3 LAN/WAN Object List (Sheet 5 of 6)
Obj. Var. Description
Request
a
Response
b
Funct.
Codes
c
Qual.
Codes
d
Funct.
Codes
c
Qual.
Codes
d
