9.53
Date Code 20120126 Instruction Manual SEL-2032 Communications Processor
Protocols
Distributed Network Protocol 3.0 (DNP3) LAN/WAN
52 0 Time Delay—All
Varia ti ons
52 1 Time Delay, Coarse
52 2 Time Delay, Fine 129 07,
quantity=1
60 0 All Classes of Data 1, 20, 21 6
60 1 Class 0 Data 1 6 129 0, 1
60 2 Class 1 Data 1, 20, 21 6, 7, 8 129 17, 28
60 3 Class 2 Data 1, 20, 21 6, 7, 8 129 17, 28
60 4 Class 3 Data 1, 20, 21 6, 7, 8 129 17, 28
70 1 File Identifier
80 1 Internal Indications 2 0, 1
index=7
81 1 Storage Object
82 1 Device Profile
83 1 Private Registration
Object
83 2 Private Registration
Object Descriptor
90 1 Application Identifier
100 1 Short Floating Point
100 2 Long Floating Point
100 3 Extended Floating Point
101 1 Small Packed Binary—
Coded Decimal
101 2 Medium Packed Binary—
Coded Decimal
101 3 Large Packed Binary—
Coded Decimal
112 all Virtual Terminal Output
Block
113 all Virtual Terminal Event
Data
N/A No object required for the
following function codes:
13 cold start
14 warm start
24 record current time
13, 14, 24
a
Supported in requests from master.
b
May generate in response to master.
c
Decimal.
d
Hexadecimal.
e
Default variation.

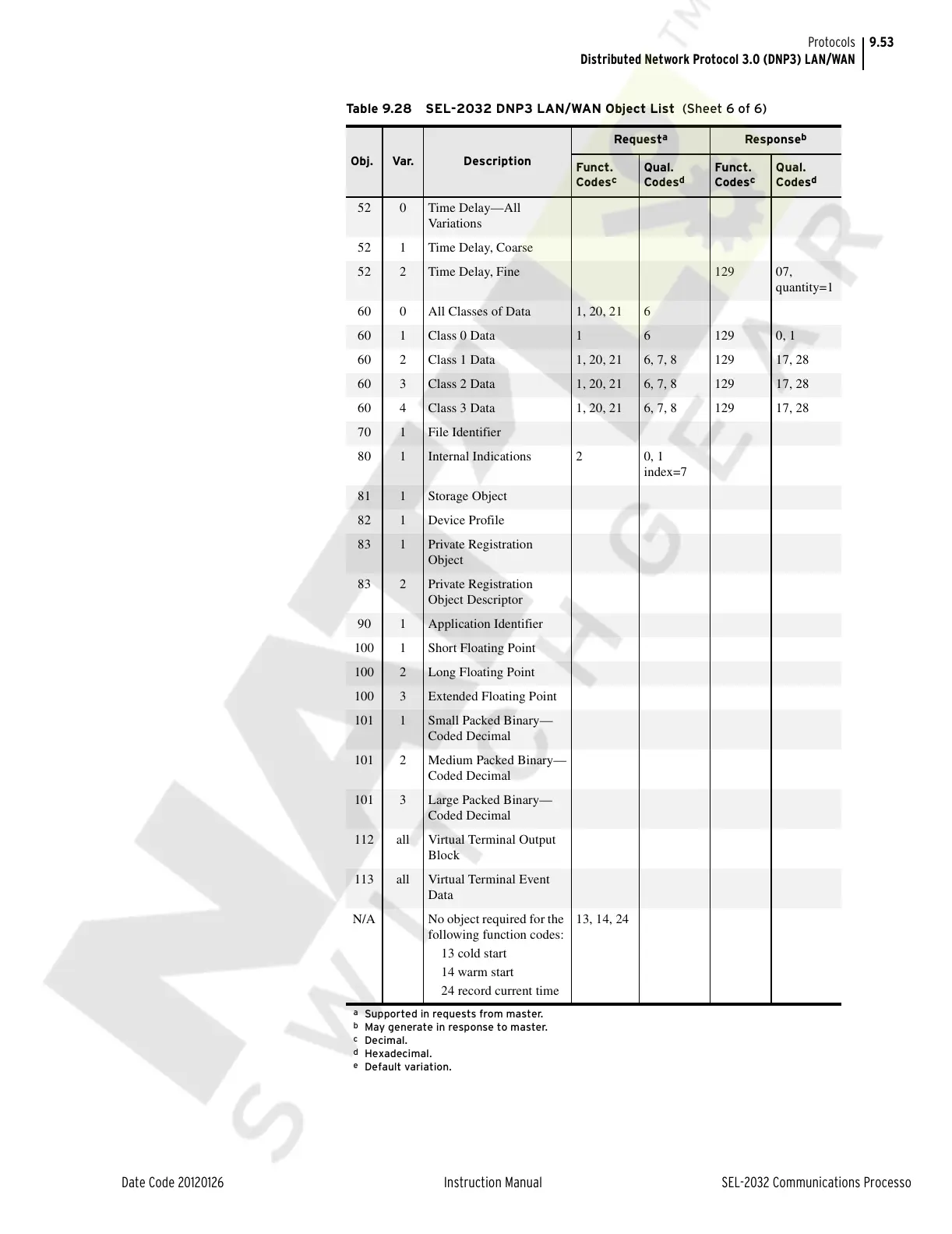

Ta b le 9.2 8 S EL - 203 2 DNP3 LAN/WAN Object List (Sheet 6 of 6)
Obj. Var. Description
Request
a
Response
b
Funct.
Codes
c
Qual.
Codes
d
Funct.
Codes
c
Qual.
Codes
d
