Section 02 ENGINE
Subsection 04 (COOLING SYSTEM - VEHICLE)

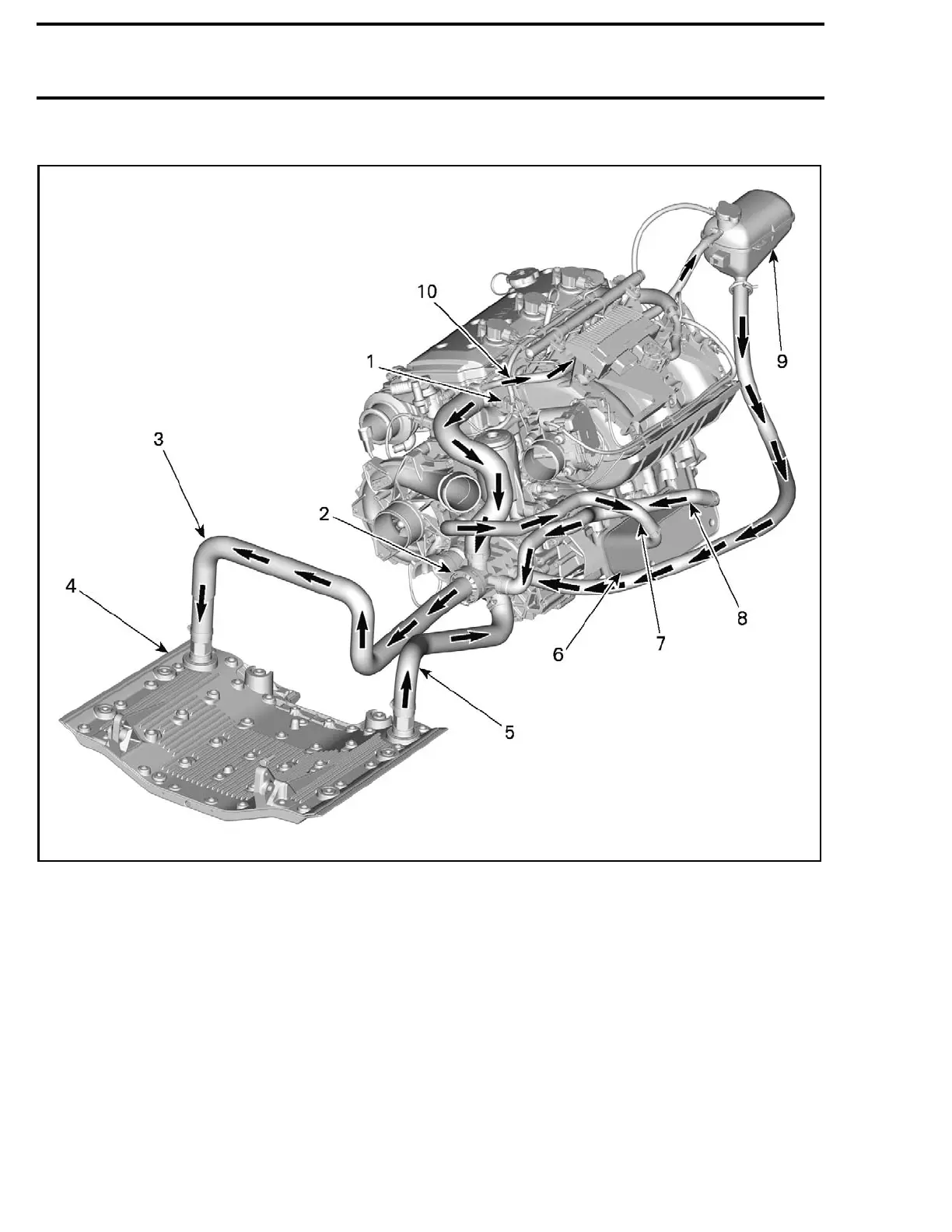

Cooling System (closed loop)
219100893-013-100_a
1. Coolant tem peratu re sensor (CTS) activates when monitoring
beeper turns on at 110°C (230°F)
2. Water pump cover / thermostat housing - Thermostat opens at
102°C (216°F) for 155 and 230 models and 97.5°C (208°F) for
300 models
3. Coolant flows to ride plate
4. Ride plate (operates as he at exchanger)
5. Coolant returns from ride plate
6. Oil cooler
7. Coolant flows to oil cooler
8. Coolant returns from oil cooler
9. Expansion coolant tank
10.Bleed hose from cylinder head to expansion coolant tank
