Section 02 ENGINE
Subsection 04 (COOLING SYSTEM - VEHICLE)

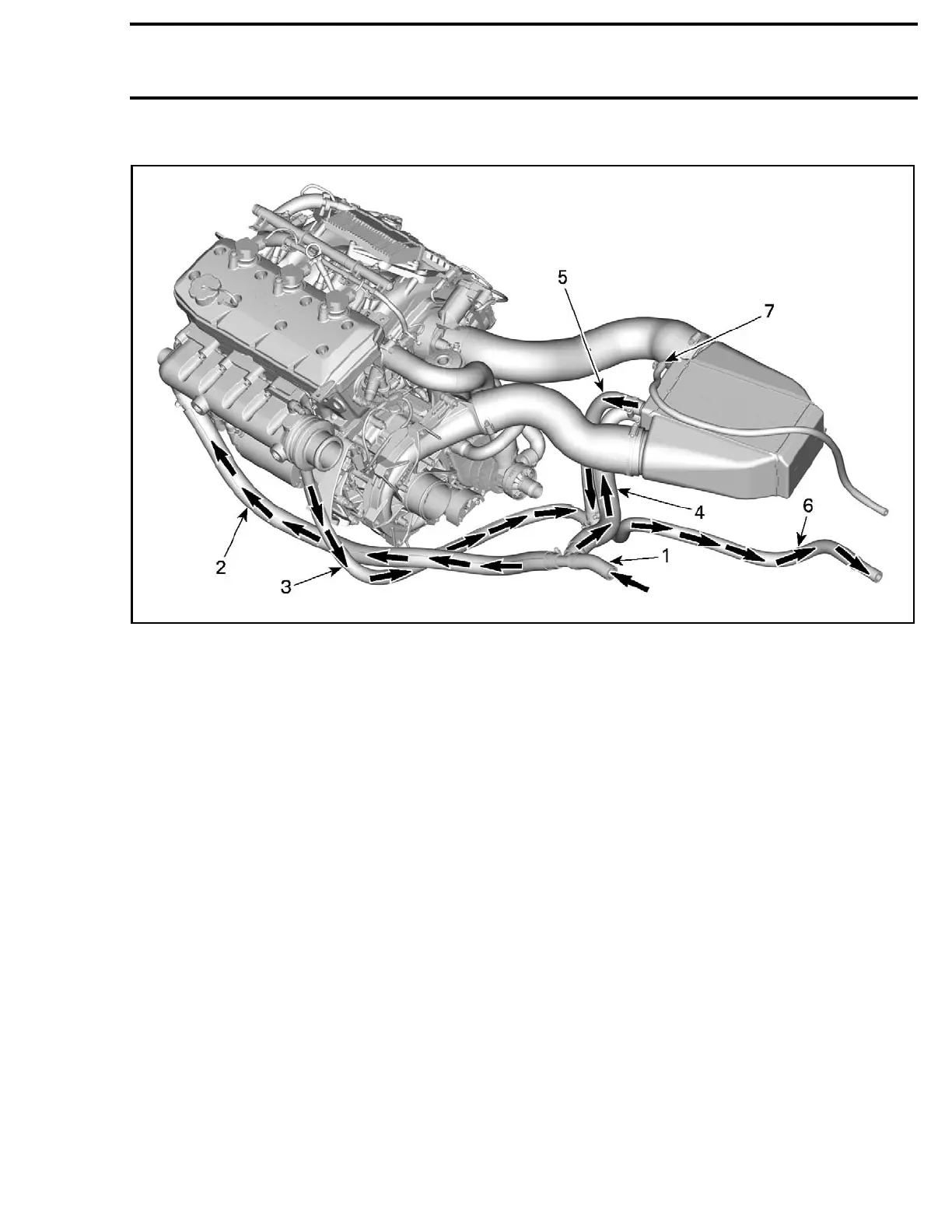

Cooling System (open loop)
219100893-013-102_a
1. Water enters system
2. Water enters the exhaust manifold
3. Water exits the exhaust manifold
4. Water enters intercooler
5. Water exits the intercooler
6. Water exits system
7. Bleed hose from intercooler
