(4) Fixed gear A
① Drive out the fixed gear A rear-wards together
with the bearing.
(5) Drive shaft（4WD）
① Break and remove the oil seal and remove the snap
ring （φ42）.
② Slide out the shaft front-wards together with the
bearing（6004）and take out the slide gear.
③ Remove the bearing (6303) from rear of housing.
④ If necessary, remove the snap ring （φ42）and
bearing (6004 uu) from bottom of clutch housing.
(6) Shifter rod・Shifter fork（4WD）
① Extract the shifter rod rear-wards and remove the
shifter fork.
NOTE：
When extracting the rod, steel ball and spring come out
of the fork.
Take care for them not to miss.
② Drive out the spring pin and remove the change
lever.
③ Remove the shift arm from the inside of the case.
366Y
367Y
368Y

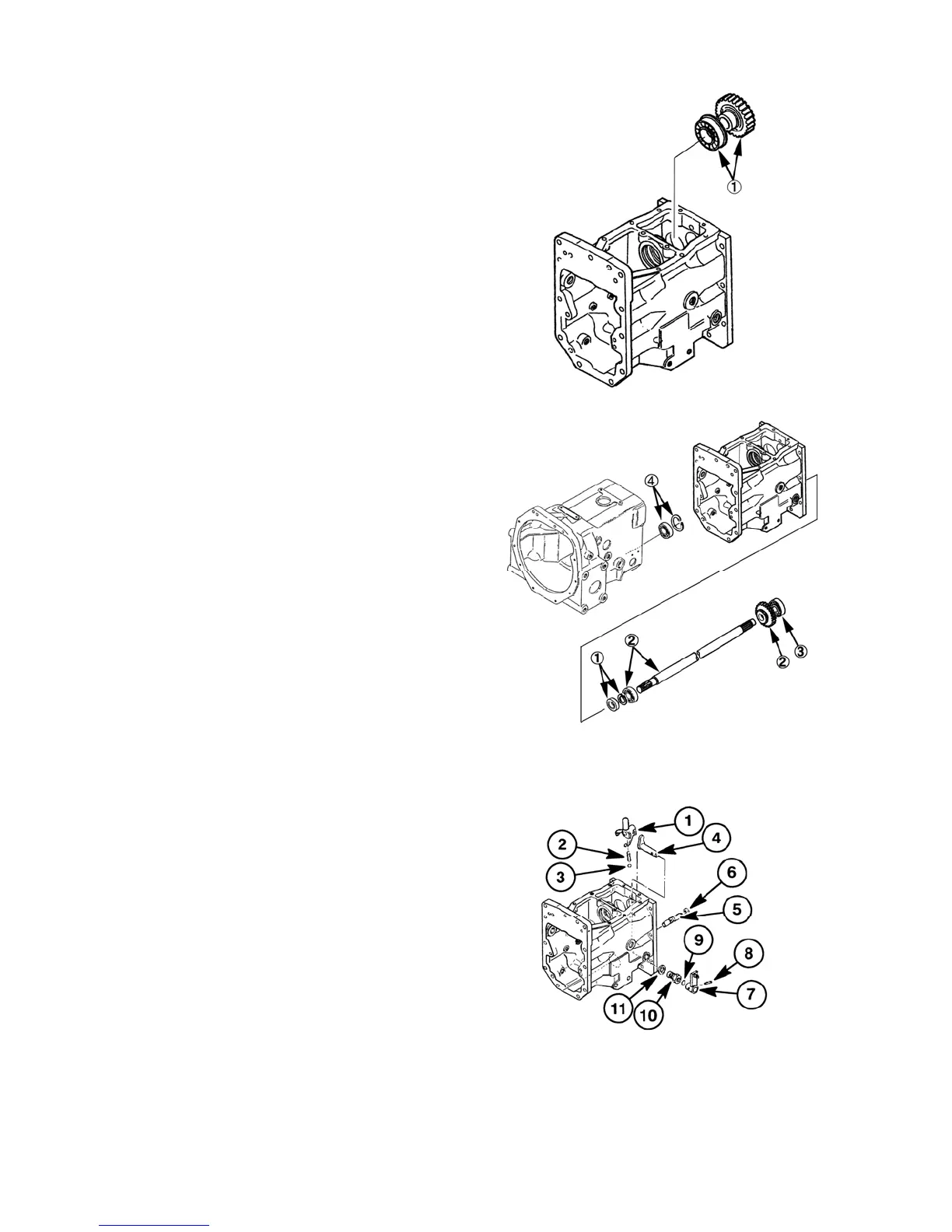

1. Shifter fork
2. Spring
3. Steel ball
4. Shift arm
5. Shift rod
6. Snap ring
（E-shaped）
7. Change lever
8. Spring pin
9. O-ring
10. Shift guide
11. Seal washer
